Wheel Alignment

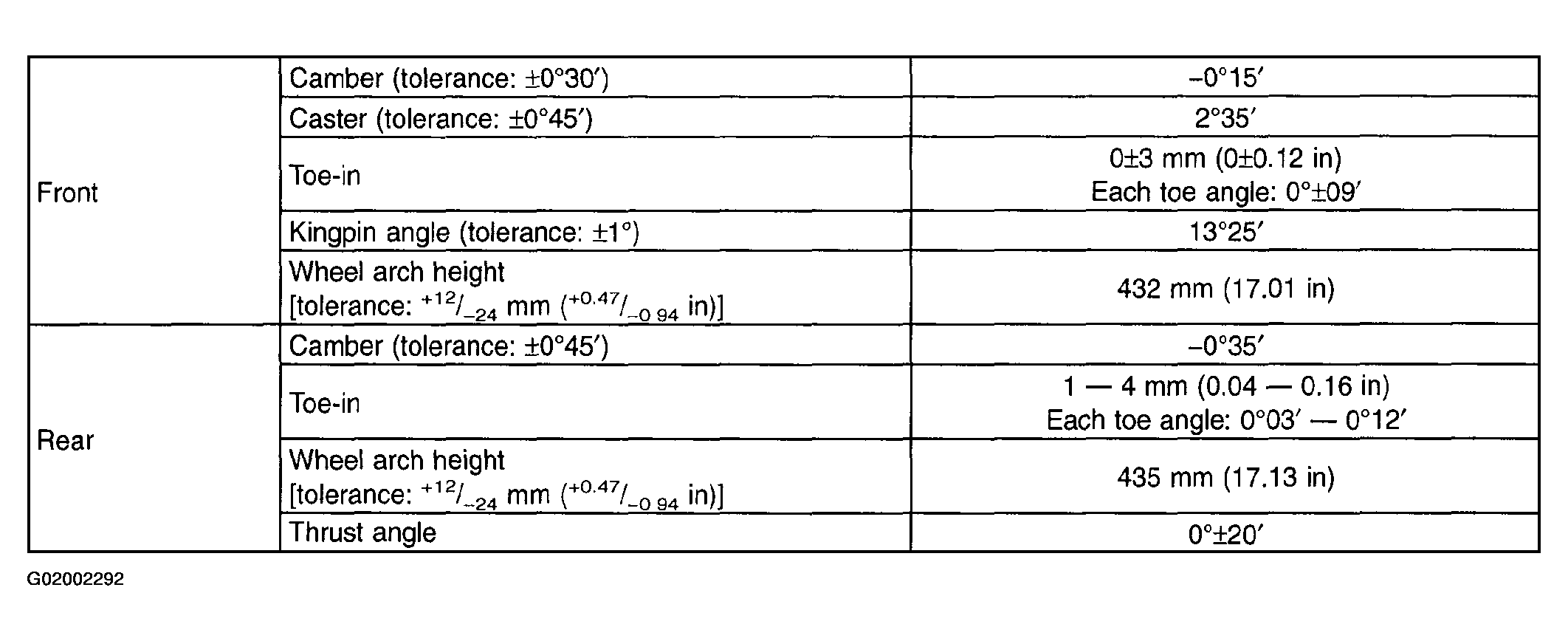

Fig 1: Front & Rear Wheel Alignment Specification Chart
G02002292
NOTE:
  • Front and rear toe-ins and front camber can be adjusted. If toe-in or front camber tolerance exceeds specifications, adjust toe-in and camber to the specification.
  • The other items indicated in the specification table cannot be adjusted. If the other items exceeds specifications, check suspension parts and joint portions of body suspension parts for deformities; and replace with new ones as required.
Fig 2: Wheel Alignment Angles
G02002293
