Fuel Sub Level Sensor: Removal

  1. Disconnect battery ground cable.

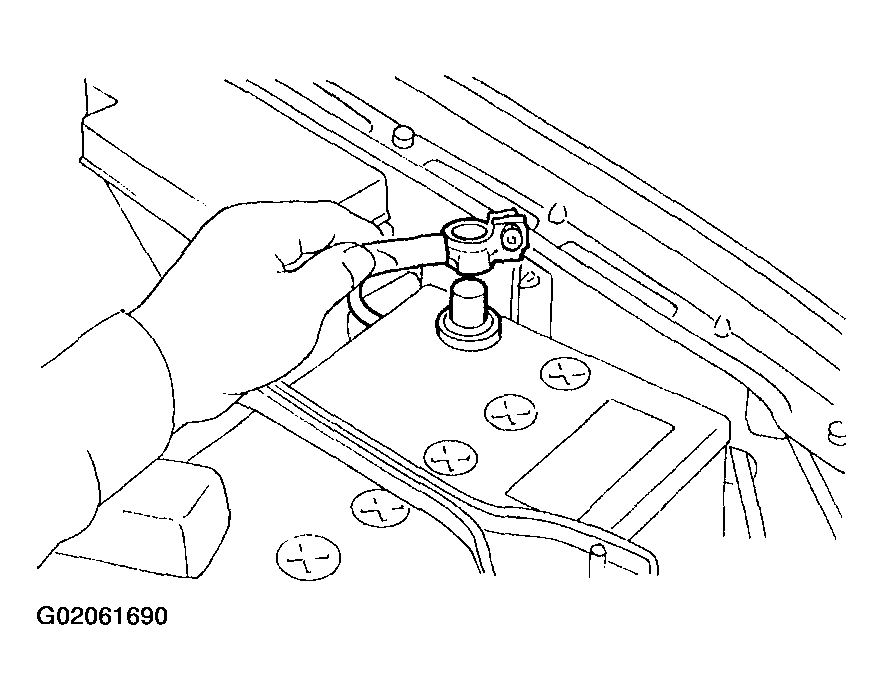

    Fig 1: Disconnecting Battery Ground Cable
    G02061690
  2. Remove fuel filler cap.
  3. Remove service hole cover.
    Fig 2: Removing Service Hole Cover
    G02061691
  4. Disconnect connector from fuel sub level sensor, and disconnect jet pump hose.

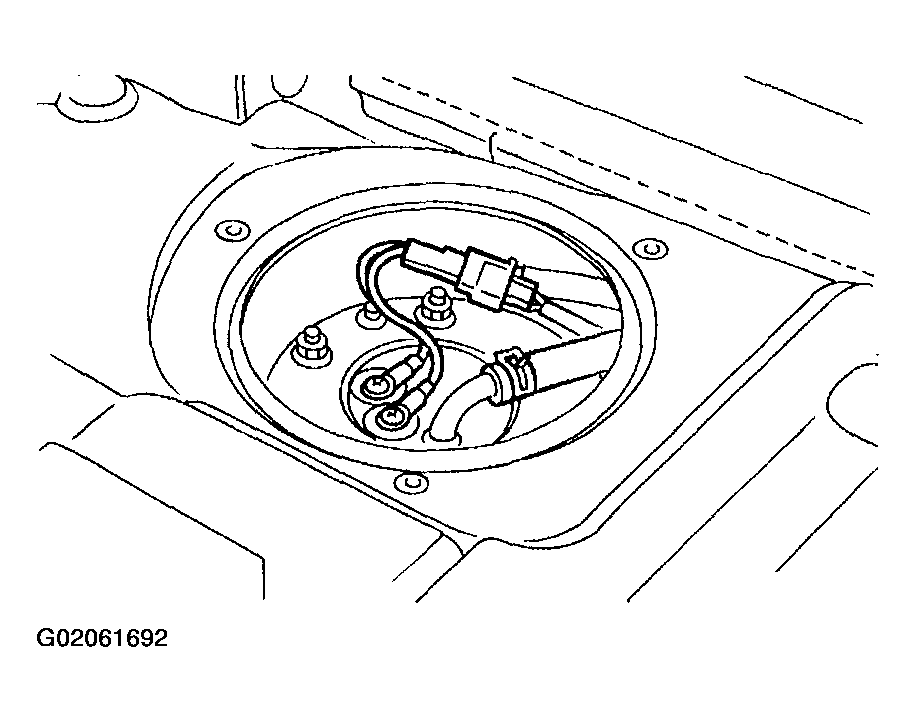

    Fig 3: Disconnecting Connector From Fuel Sub Level Sensor
    G02061692
  5. Remove bolts which install fuel sub level sensor on fuel tank.

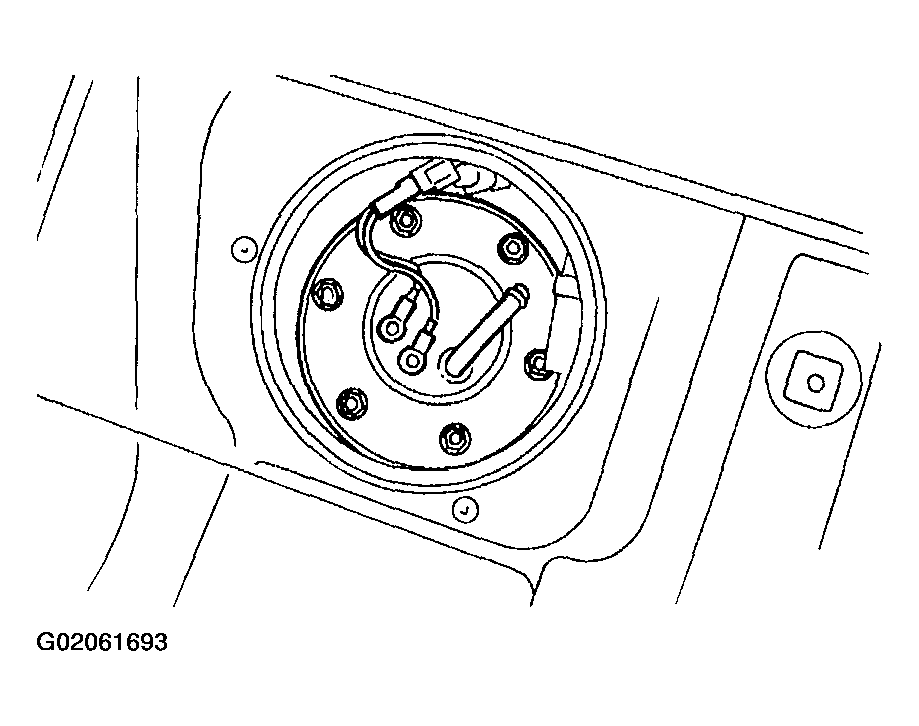

    Fig 4: Remove Bolts From Fuel Sub Level Sensor On Fuel Tank
    G02061693
  6. Removing fuel sub level sensor.

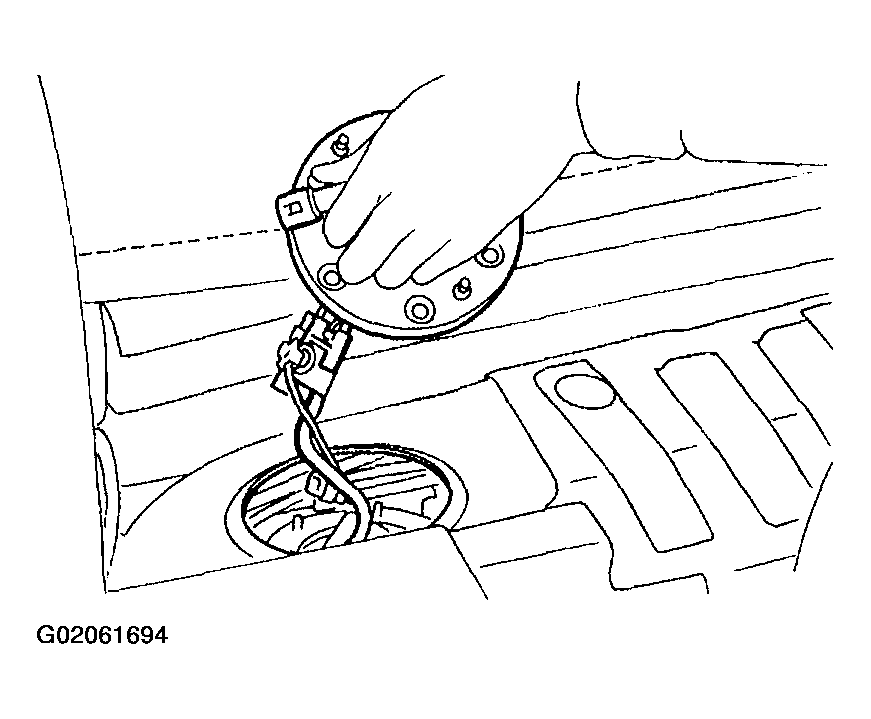

    Fig 5: Removing Fuel Sub Level Sensor
    G02061694
