At Select Lever

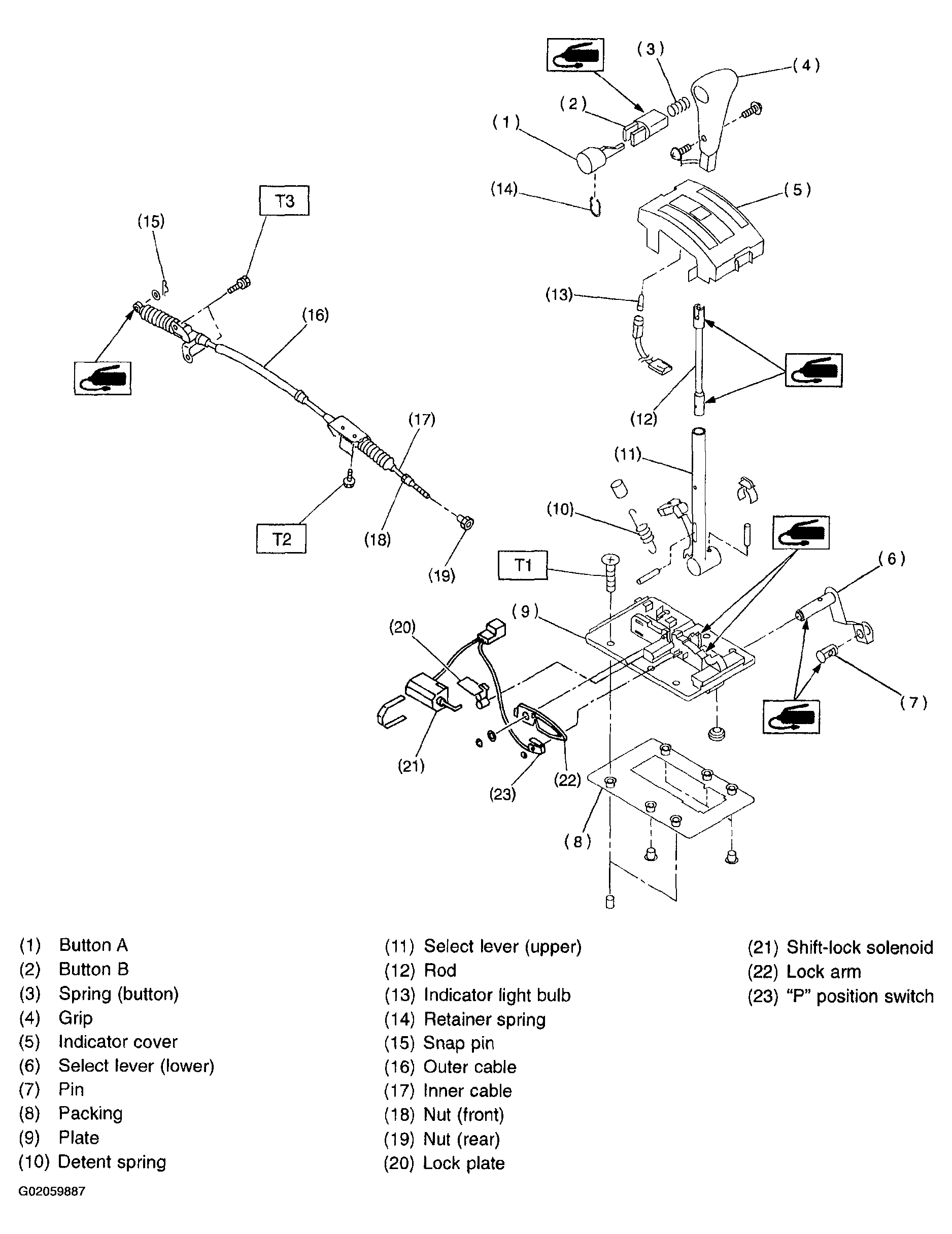

Fig 1: Identifying AT Select Lever Components
G02059887

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  4.5 (0.46,3.3)
  2. T2:  18 (1.8, 13.0)
  3. T3:  33 (3.4, 25)
