Code 38: Torque Control Signal: Trouble Symptom

Excessive shift shock.

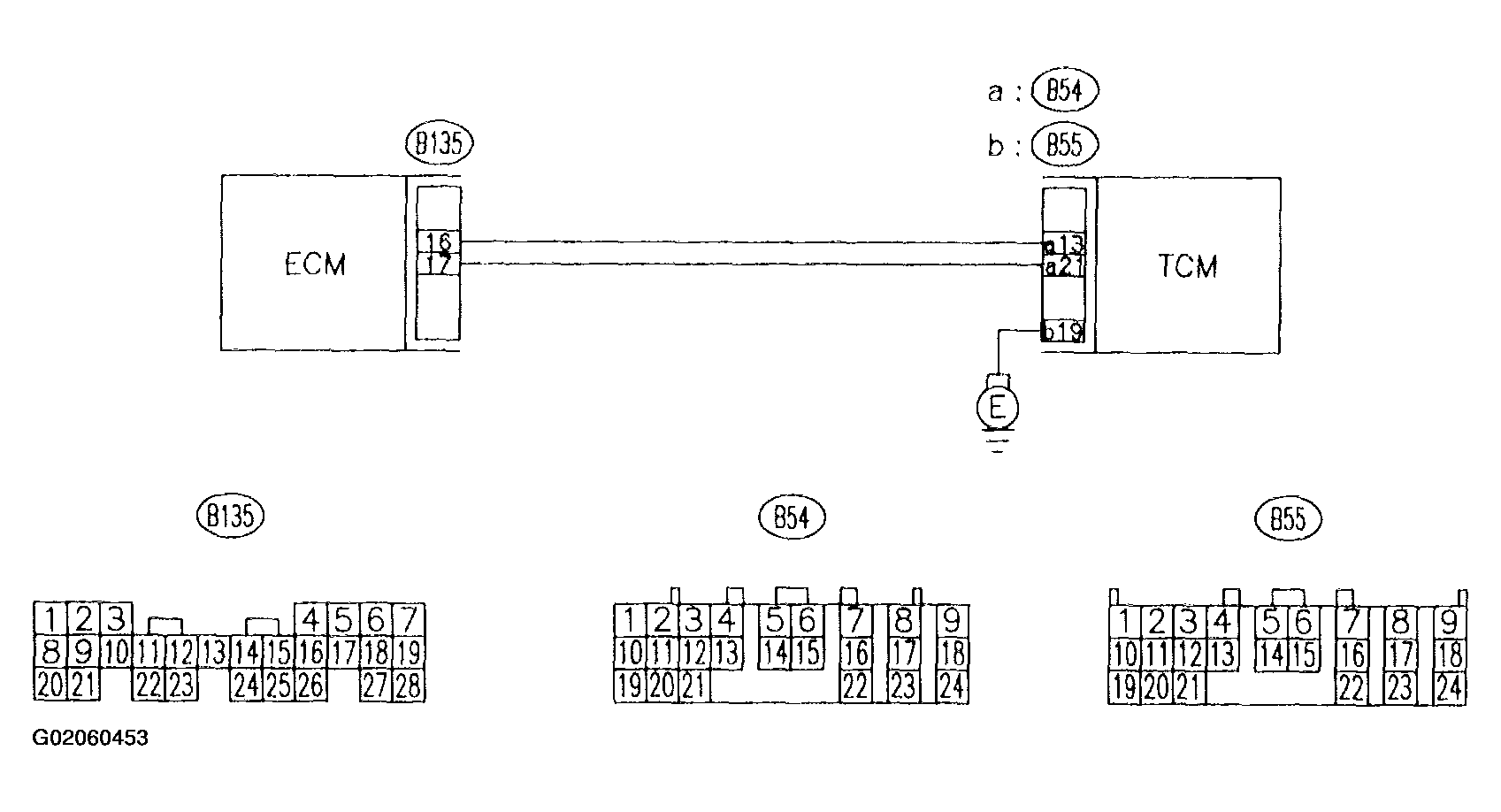

Fig 1: Torque Control Signal Circuit - Wiring Diagram

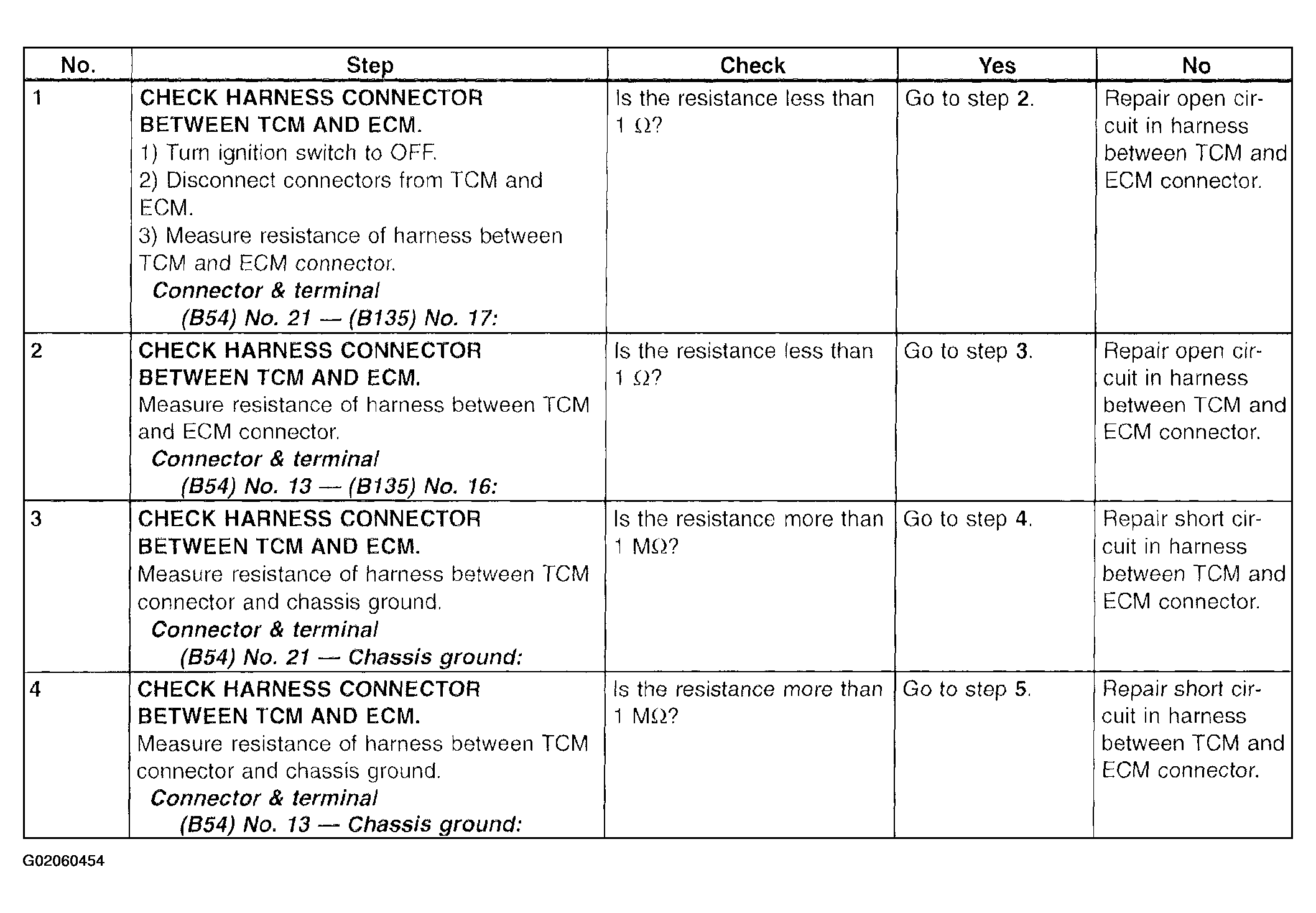

Fig 2: Trouble Code 38 - Diagnostic Chart (1 Of 2)

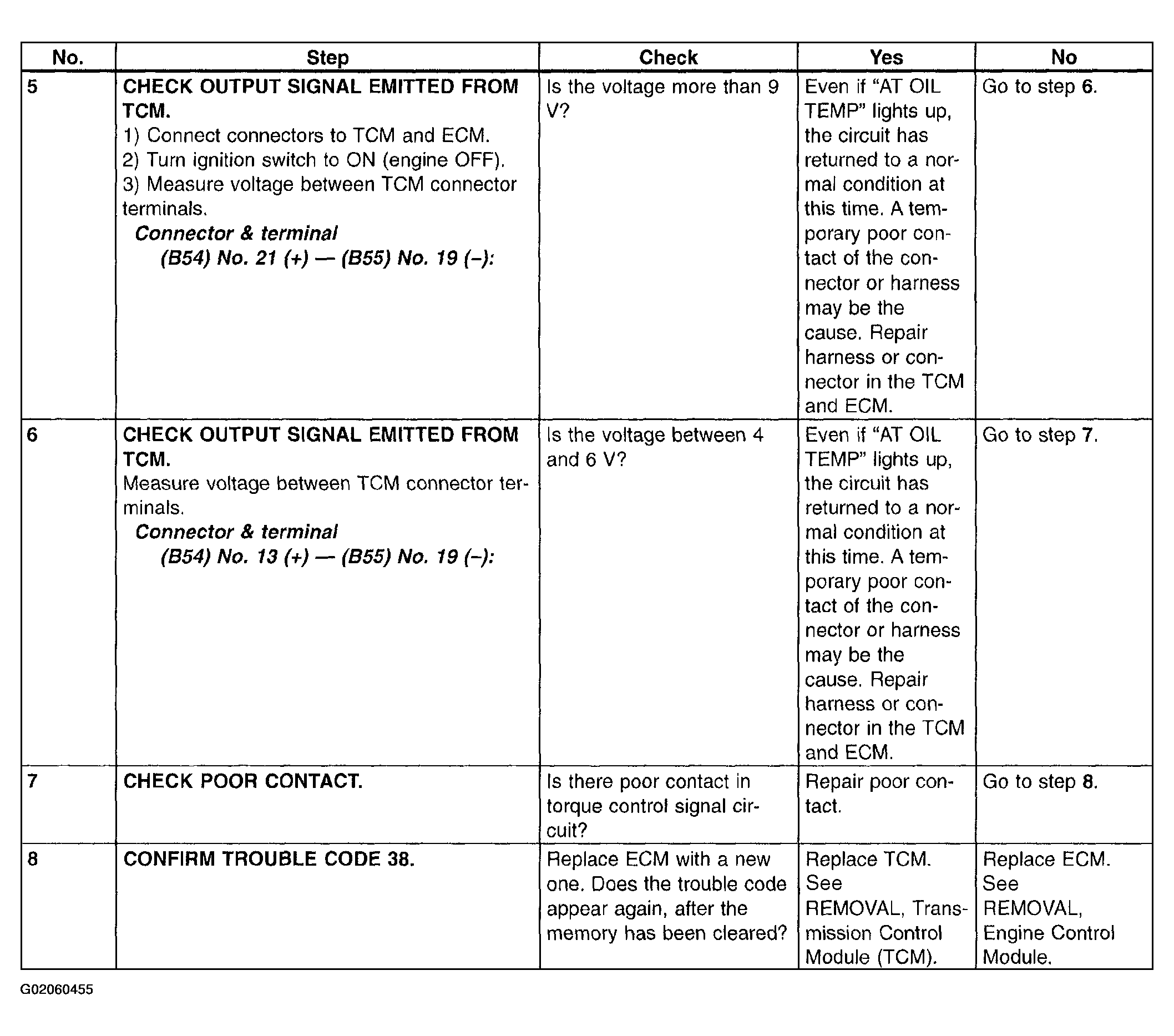

Fig 3: Trouble Code 38 - Diagnostic Chart (2 Of 2)
