Read Current Data
- On the [Main Menu] display screen, select the {Each System Check} and press the [YES] key.
- On the [System Selection Menu] display screen, select the {Transmission Control System} and press the [YES] key.
- Press the [YES] key after displayed the information of transmission type.
- On the [Transmission Diagnosis] display screen, select the {Current Data Display & Save} and press the [YES] key.
- On the [Data Display Menu] display screen, select the {Data Display} and press the [YES] key.
- Using the scroll key, move the display screen up or down until the desired data is shown.

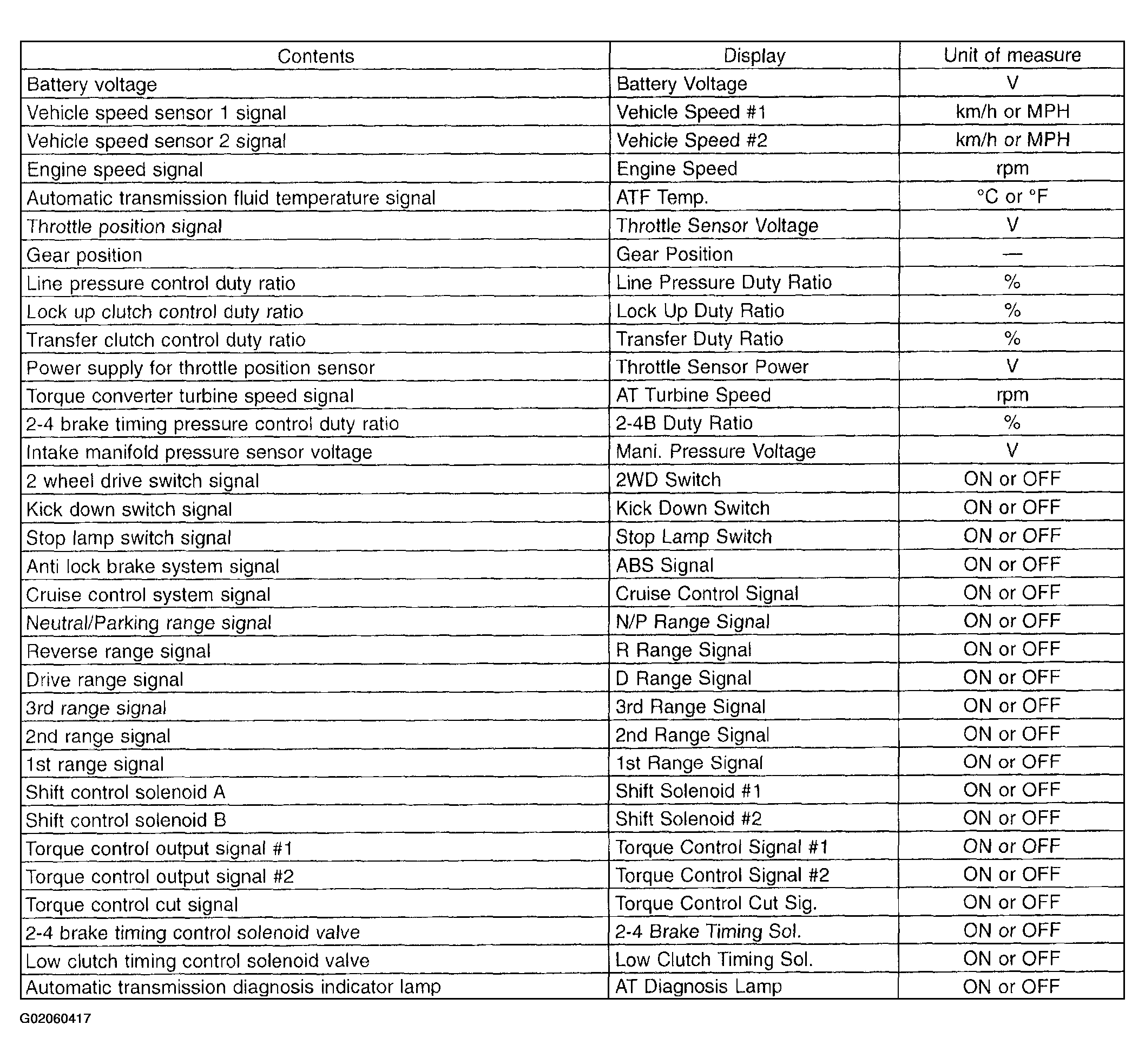

- A list of the support data is shown in the following table.
