Control Valve Body: Installation

Set the select lever in "N" position.
Install the control valve and ground earth connectors.
1. Tightening torque: 8 N.m (0.8 kgf-m, 5.8 ft-lb)

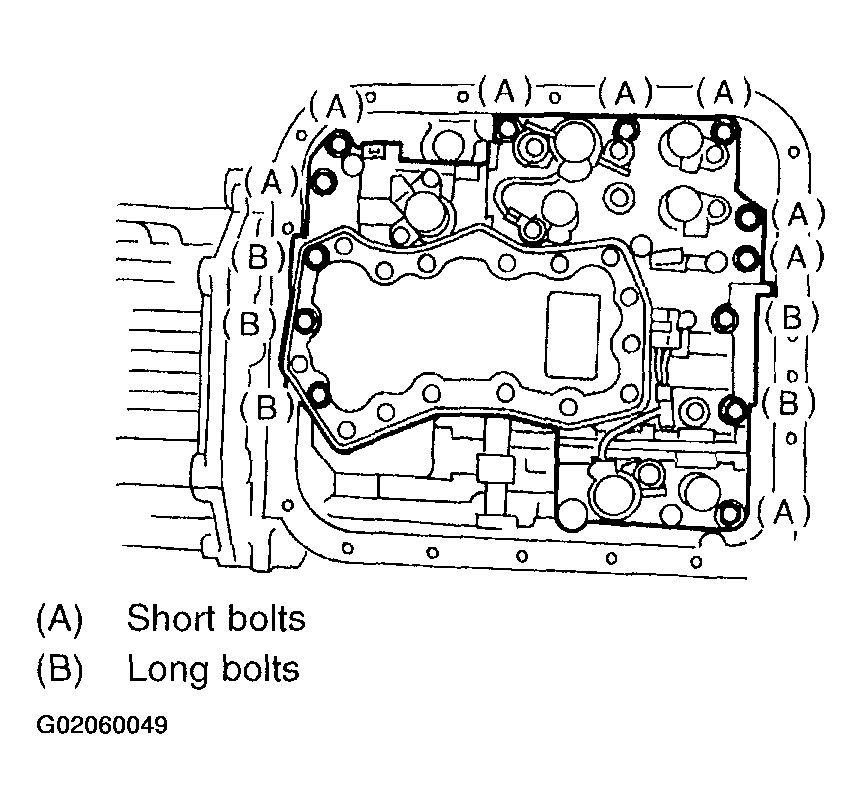

Fig 1: Identifying Long & Short Bolt Locations
Connect all connector.

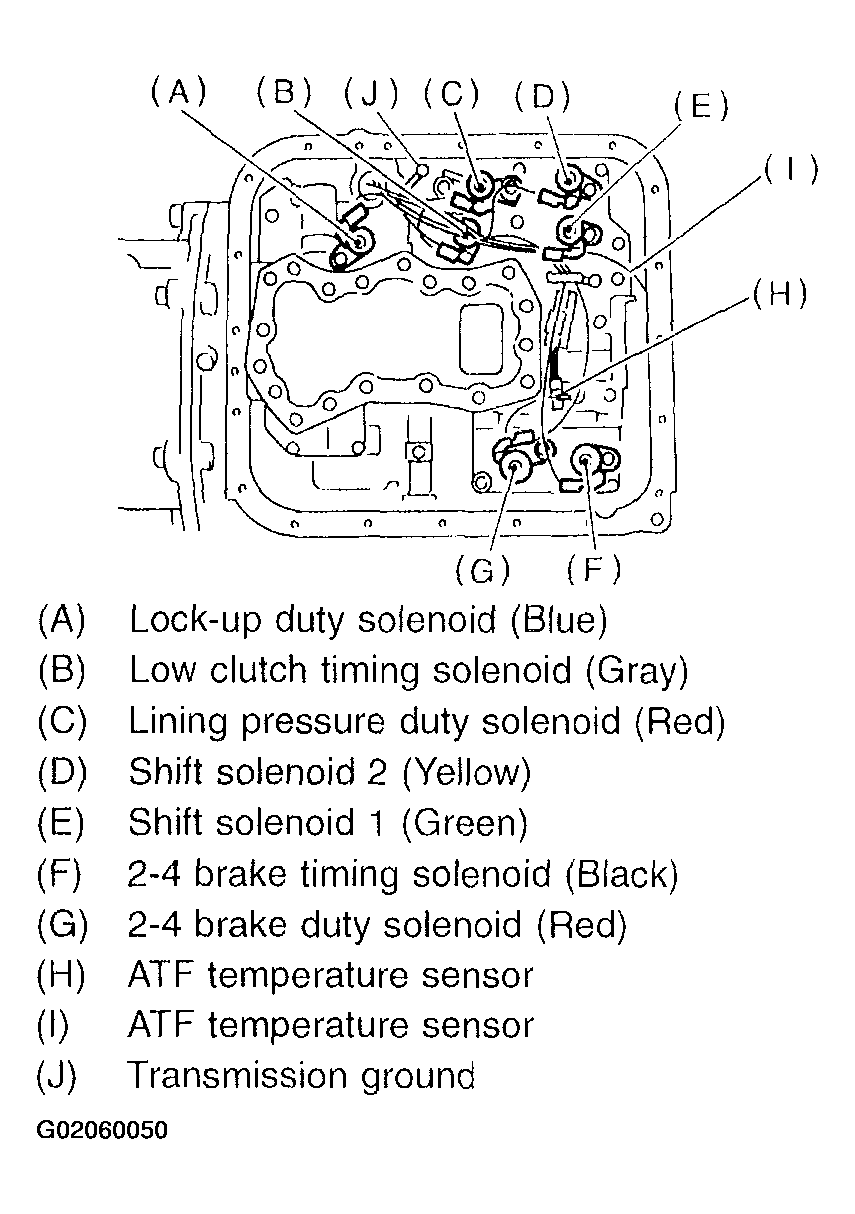

Fig 2: Identifying Duty Solenoids & ATF Temperature Sensor Connectors
Attach the magnet at the specified position.

Fig 3: Installing Magnet In Oil Pan
Apply proper amount of liquid gasket to the entire oil pan mating surface (THREE BOND Part No. 1217B).

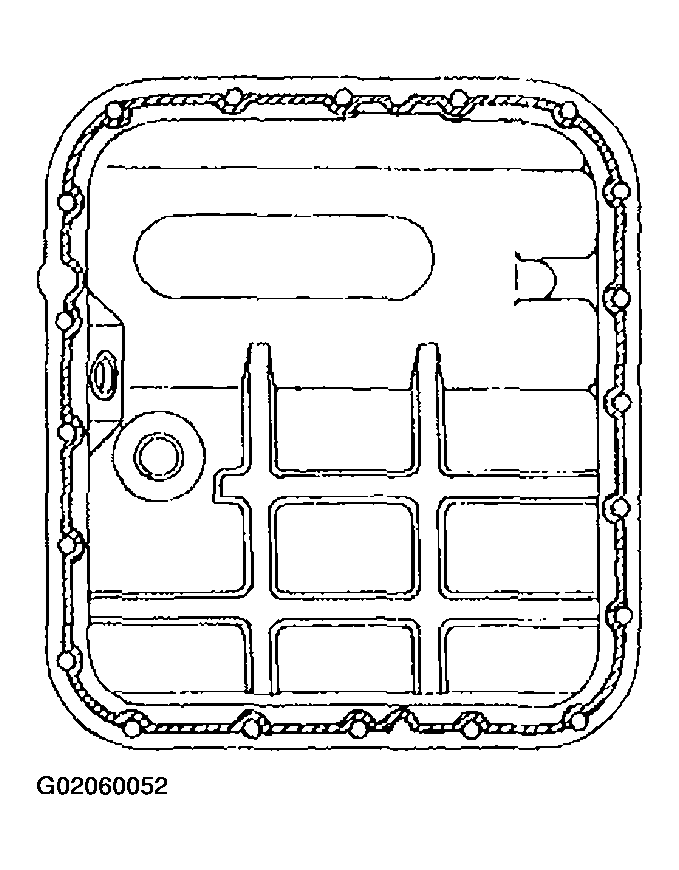

Fig 4: Applying Liquid Gasket To Oil Pan Mating Surface
Install the oil pan.
- Tightening torque: 4.9 N.m (0.5 kgf-m, 3.6 ft-lb)
Pour ATF into the oil charge pipe.
Recommended fluid:
1. Dexron IIE or Dexron III type automatic transmission fluid
Fluid capacity:
1. 9.3 - 9.6 l (9.8 - 10.1 US qt, 8.2 - 8.4 Imp qt)
Check the level of the ATF.
