Transmission Mounting

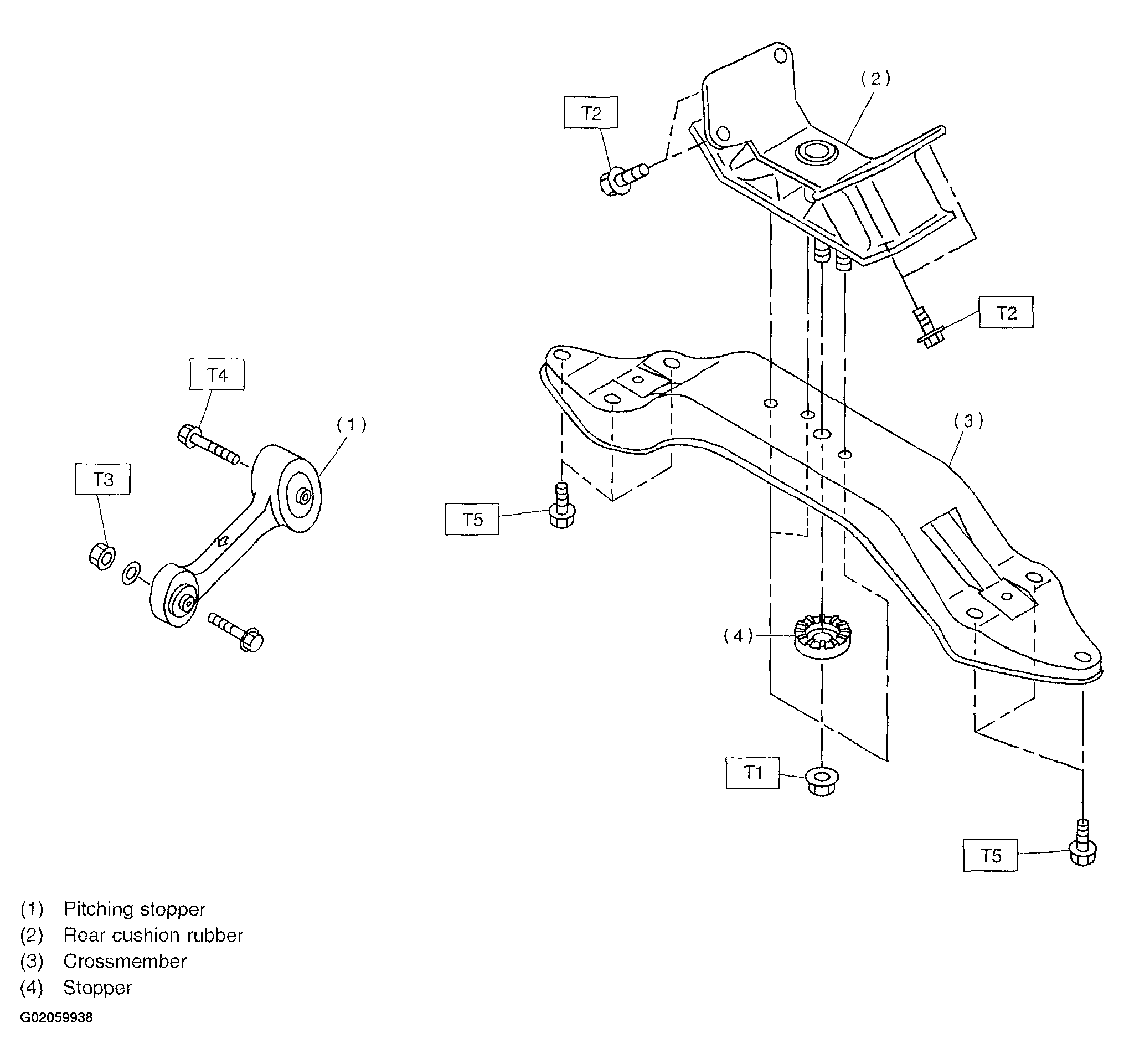

Fig 1: Identifying Transmission Mounts
G02059938

Tightening torque:

  1. T1:  34 (3.5, 25.3)
  2. T2:  38 (3.9, 28)
  3. T3:  49 (5.0, 36.2)
  4. T4:  57 (5.8, 42)
  5. T5:  69 (7.0, 51)
