Inhibitor Switch: Installation

Install inhibitor switch to transmission case.

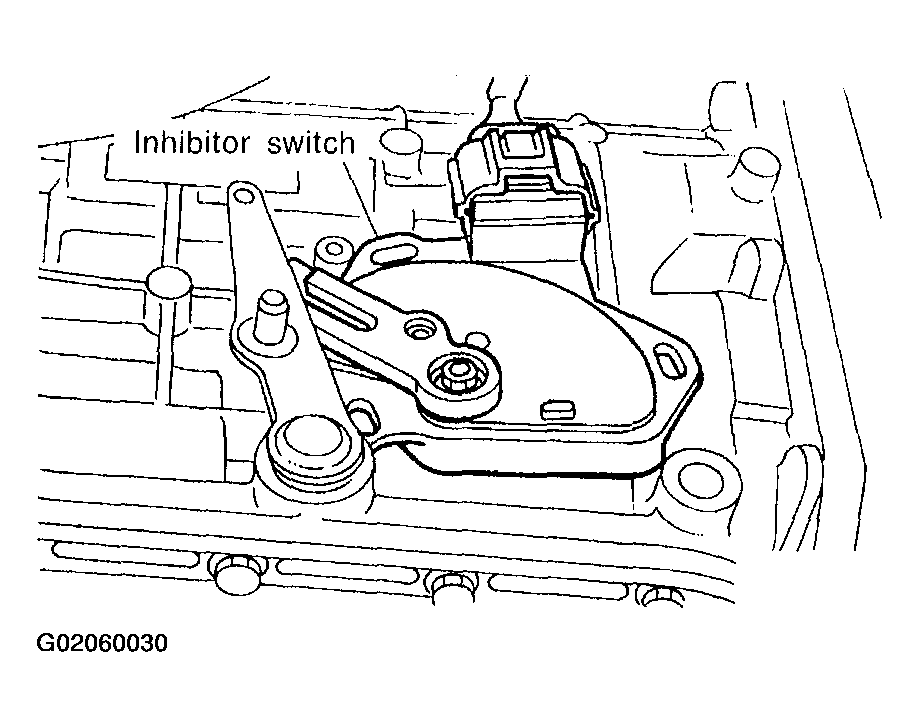

Fig 1: Installing Inhibitor Switch
Move range select lever to neutral position.
Using ST, tighten bolts of inhibitor switch. See ADJUSTMENT .
1. ST 499267300 STOPPER PIN

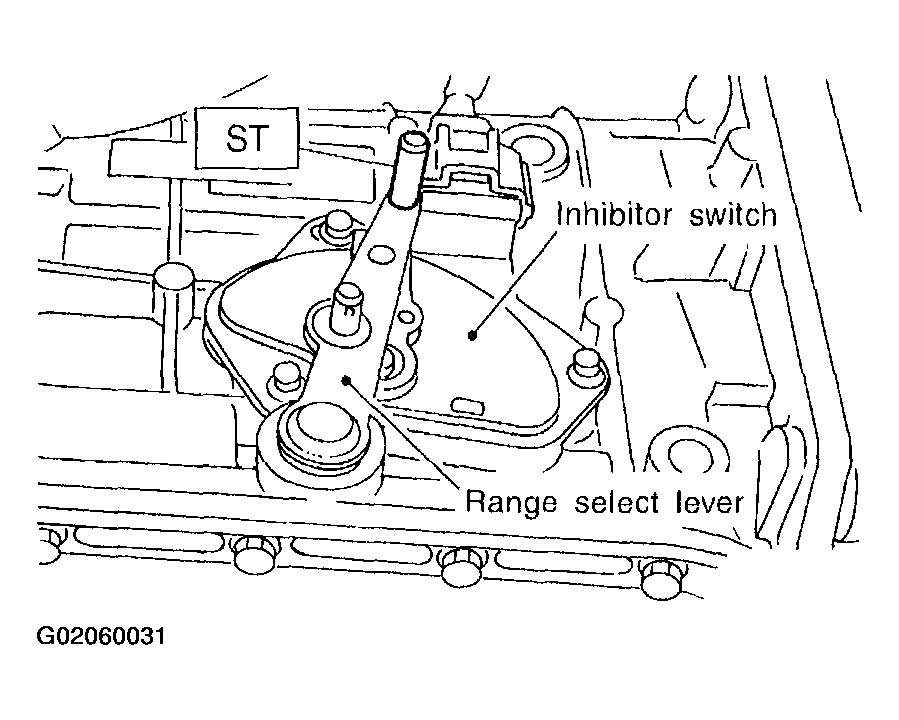

Fig 2: Moving Range Select Lever To Neutral Position
Install select cable to range select lever.
Install plate assembly to transmission.
Tightening torque:
1. T: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

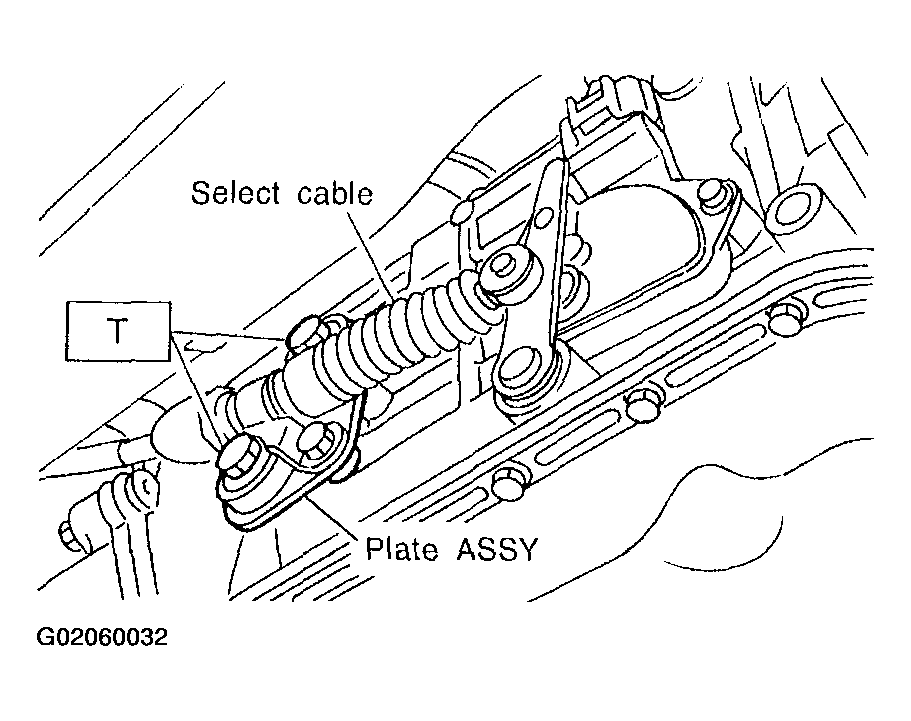

Fig 3: Installing Plate Assembly To Transmission
Install snap pin to range select lever.

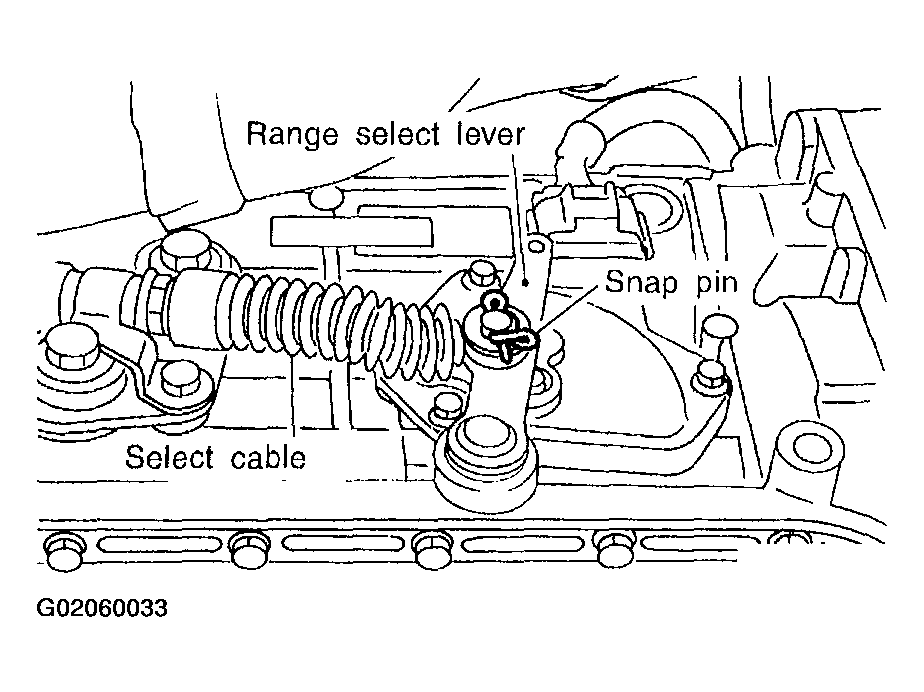

Fig 4: Installing Snap Pin To Range Select Lever
Install front exhaust pipe and center exhaust pipe. See EXHAUST SYSTEM .
Connect inhibitor switch connector.

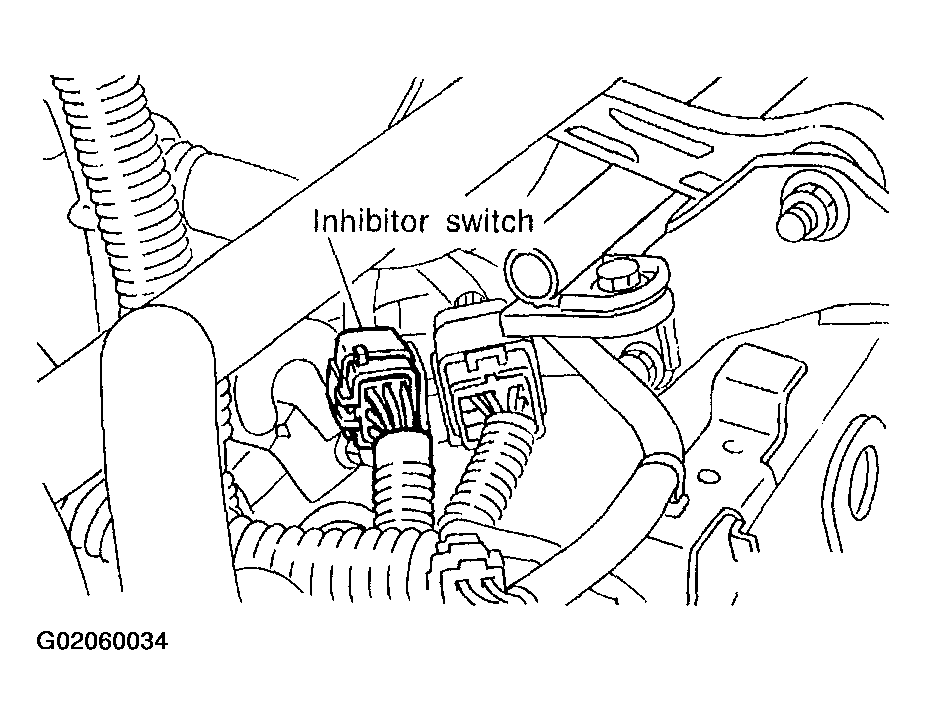

Fig 5: Connecting Inhibitor Switch Connector
Install air cleaner case and air intake duct. See AIR CLEANER CASE .

Fig 6: Identifying Air Intake Duct & Air Cleaner Case
