Test Methods

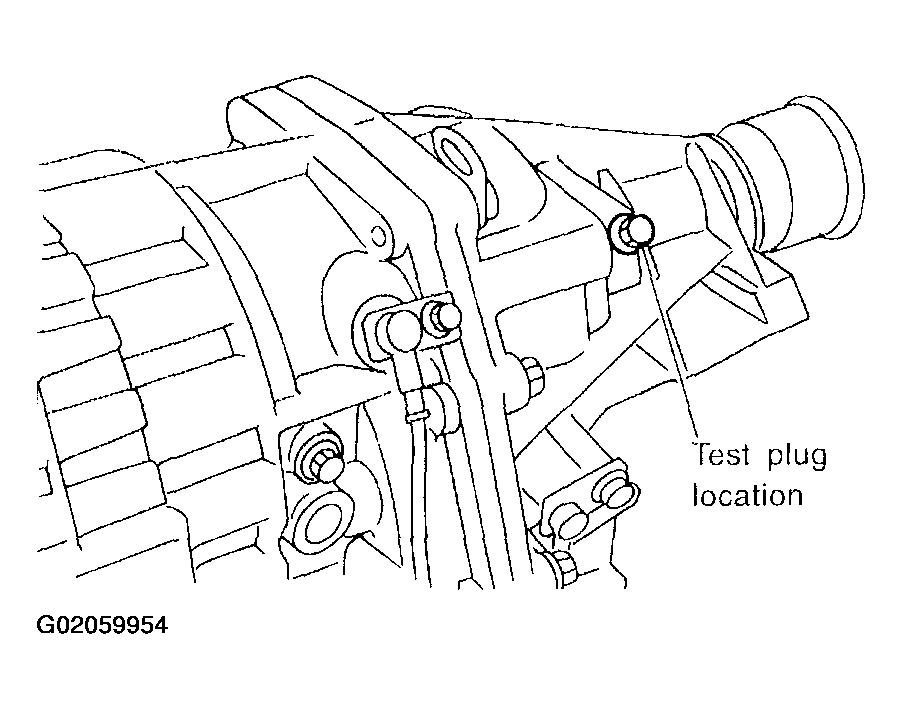

Check transfer clutch pressure in accordance with the following chart in the same manner as with line pressure.
- ST 499897700 OIL PRESSURE ADAPTER SET
- ST 498575400 OIL PRESSURE GAUGE ASSY
- AWD mode: "D" range
- FWD mode: "P" range, engine speed 2,000 rpm
CAUTION:
Before setting in FWD mode, install spare fuse on FWD mode switch.
