Transmission Control Module (TCM): Installation

  1. Install TCM to pedal bracket.
    1. Tightening torque:  7.4 N.m (0.75 kgf-m, 5.4 ft-lb)

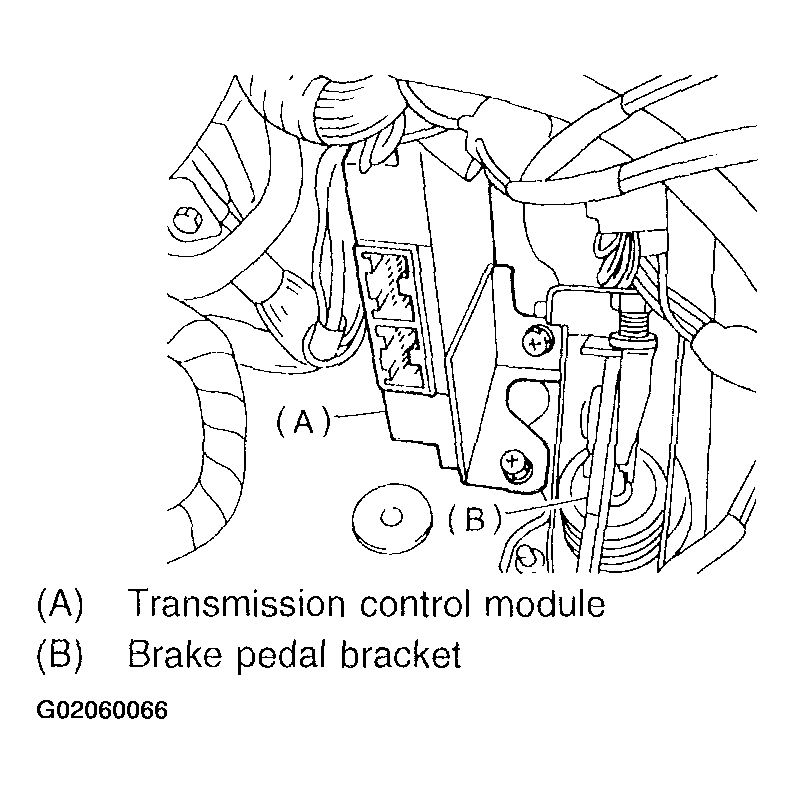

    Fig 1: Installing TCM To Pedal Bracket
    G02060066
  2. Connect connectors to TCM.
  3. Install lower cover and then connect connector.
  4. Connect battery ground terminal.
