General Description
›
Component
›
Abs Control Module And Hydraulic Control Unit (ABSCM & H/U)
Abs Control Module And Hydraulic Control Unit (ABSCM & H/U)

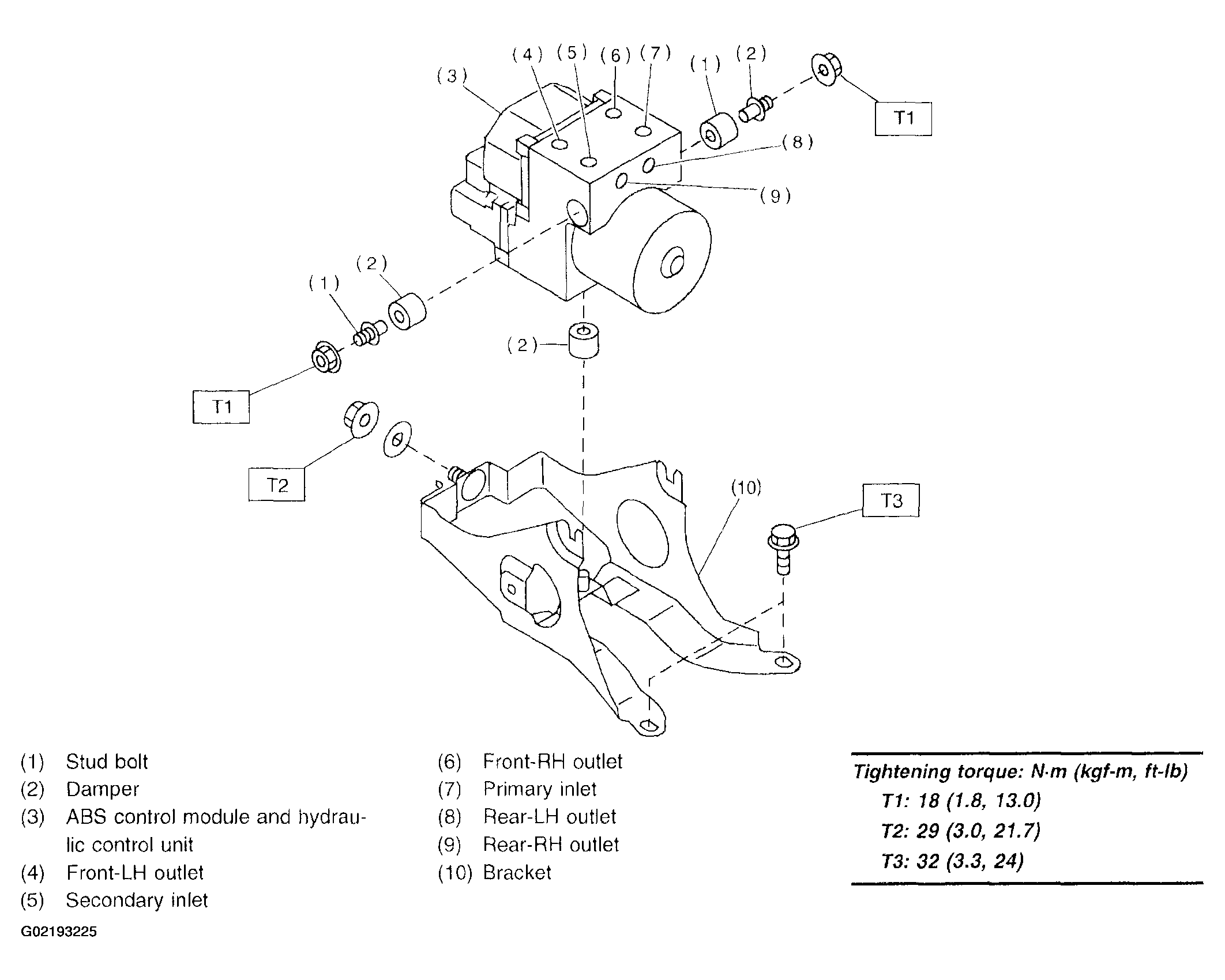

Fig 1: Identifying ABS Control Module & Hydraulic Control Unit (ABSCM & H/U)
