Anti-Lock Braking System: General Description: Component: Sensor

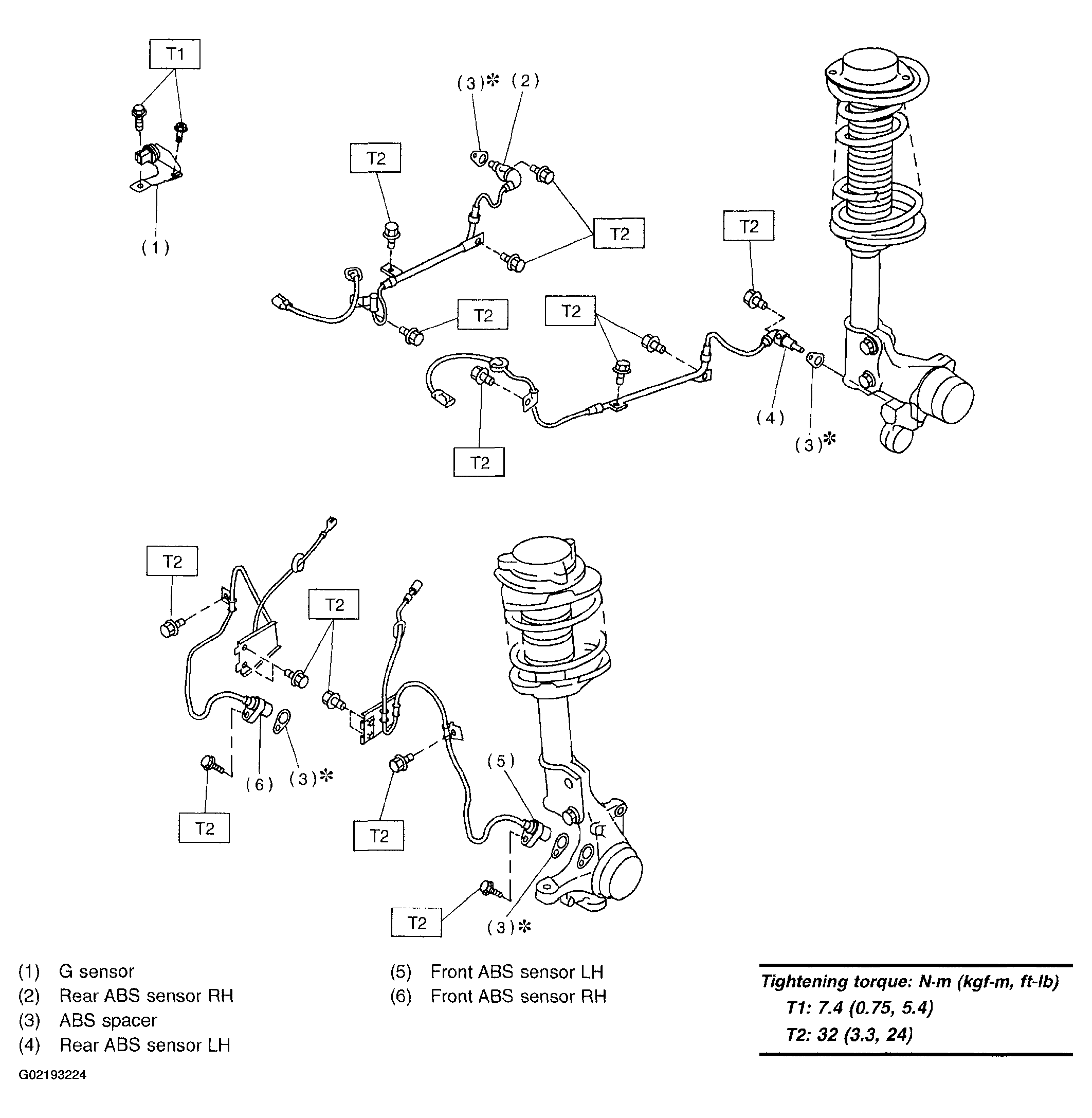

Fig 1: Identifying ABS Sensors & Other ABS Related Components

G02193224
