LH Side

Release fuel pressure. See RELEASING OF FUEL PRESSURE , FUEL.
Open fuel flap lid, and remove fuel filler cap.

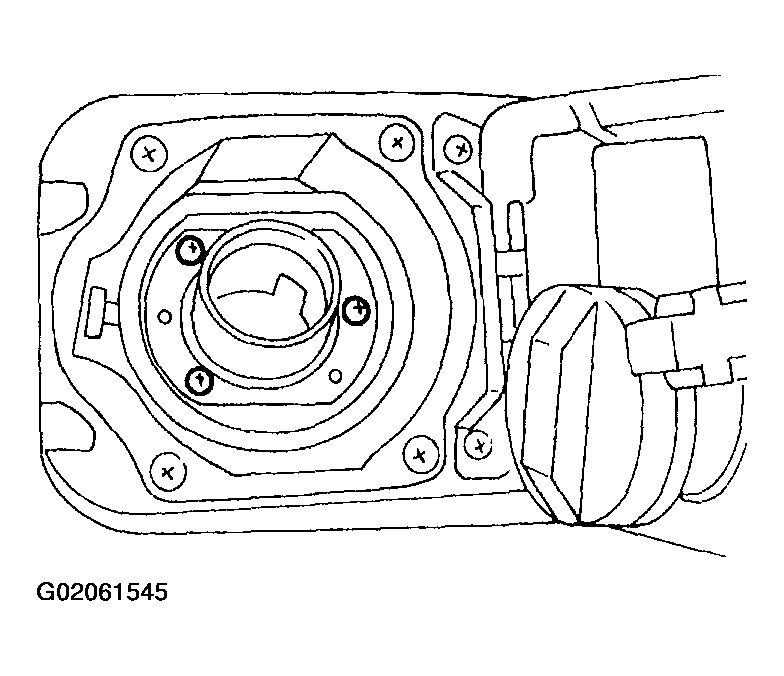

Fig 1: Removing Fuel Filler Cap

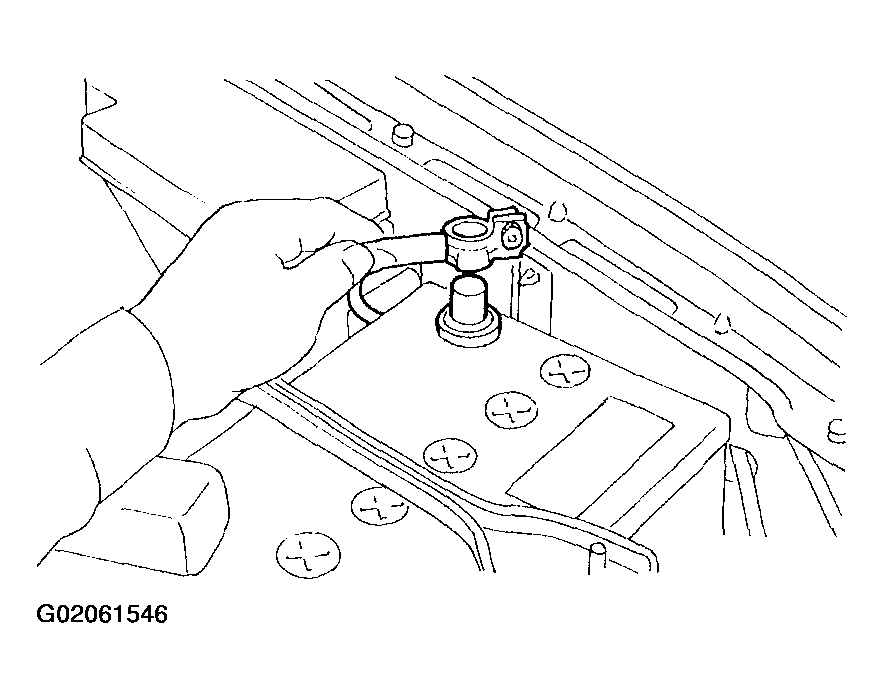

Disconnect battery ground cable.

Fig 2: Disconnecting Battery Ground Cable

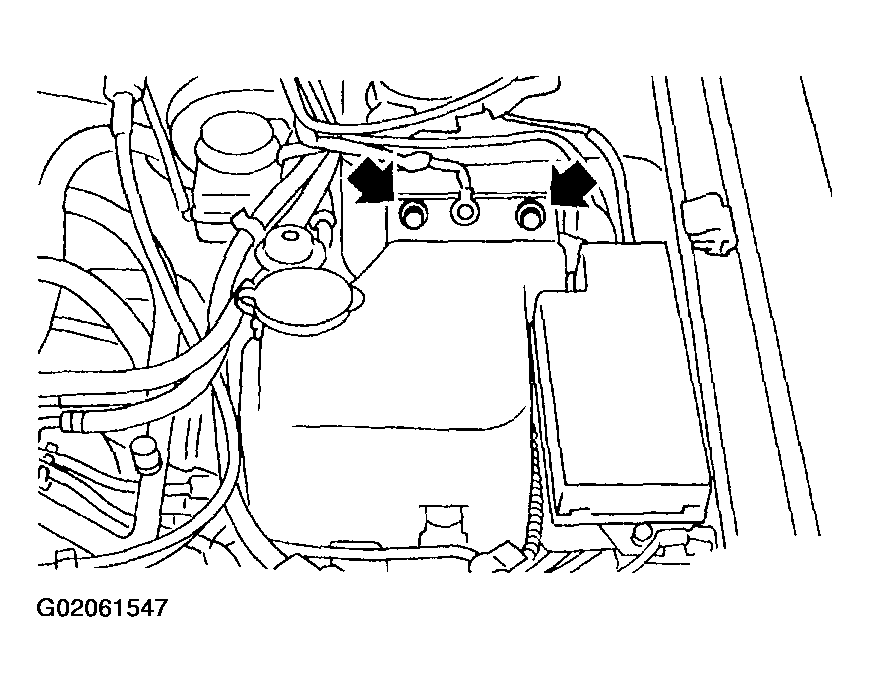

Remove two bolts which install washer tank on body.

Fig 3: Removing Bolts From Washer Tank On Body

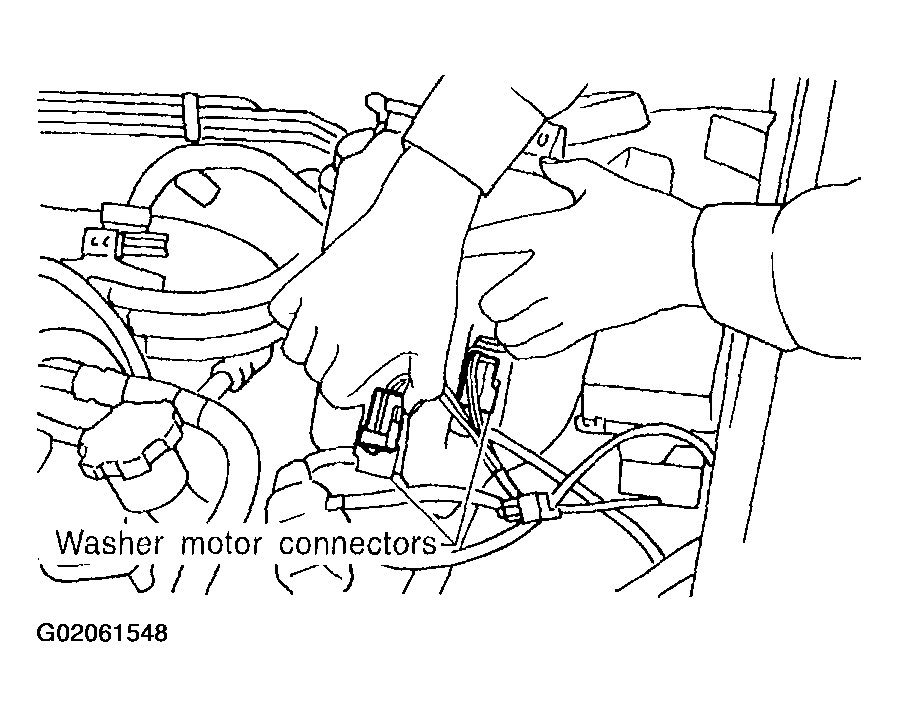

Disconnect connector from front window washer motor.
Disconnect connector from rear gate glass washer motor.

Fig 4: Disconnect Connector From Rear Gate Glass Washer Motor
Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.

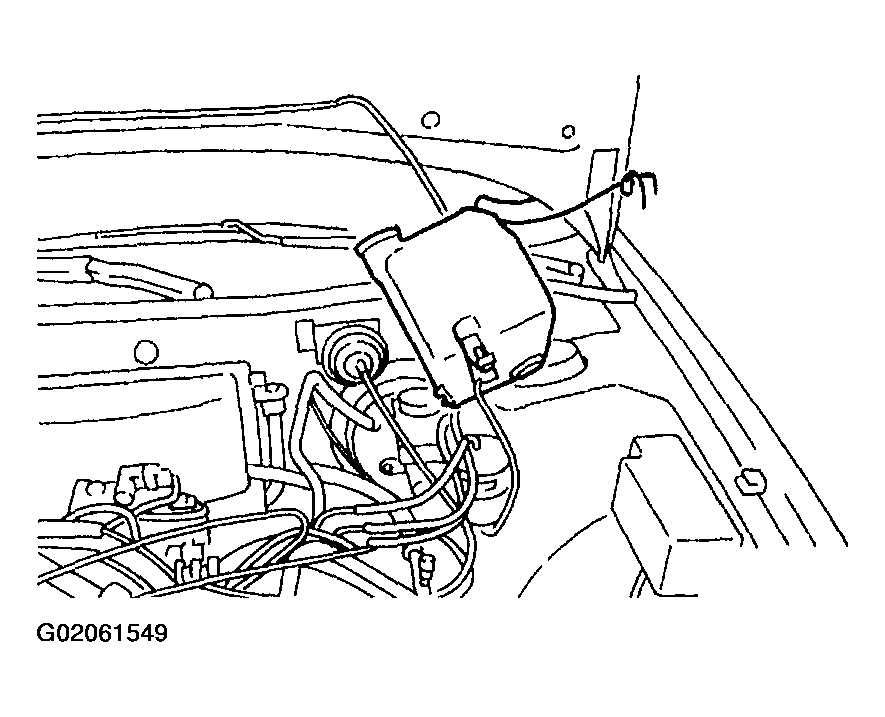

Move washer tank, and secure it away from working area.

Fig 5: Moving Washer Tank, And Secure It Away From Working Area

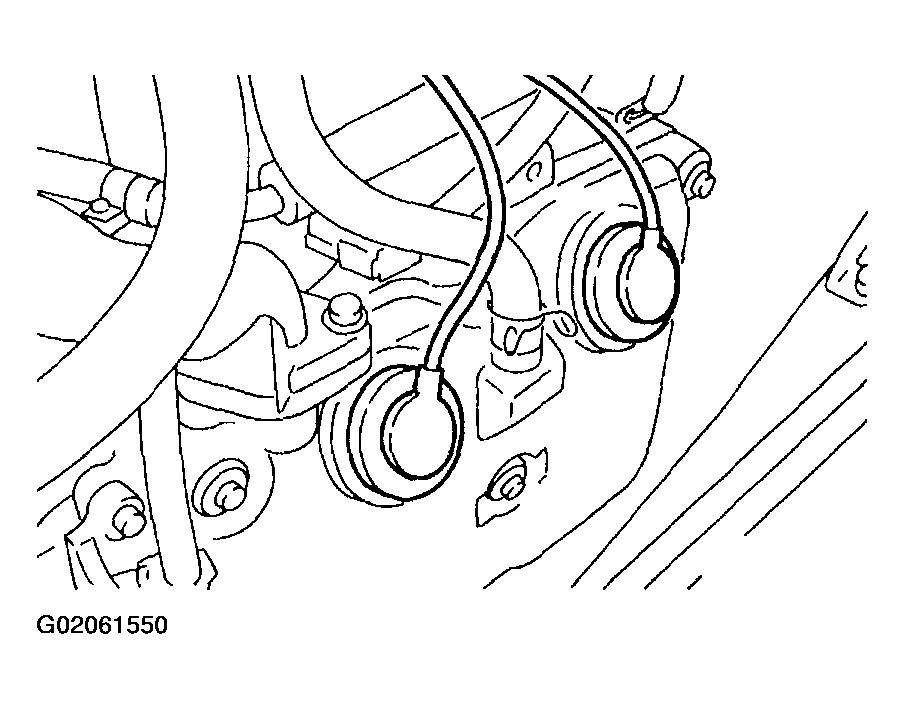

Remove spark plug cables from spark plugs (#2 and #4 cylinders).

Fig 6: Removing Spark Plug Cables From Spark Plugs (#2 And #4 Cylinders)

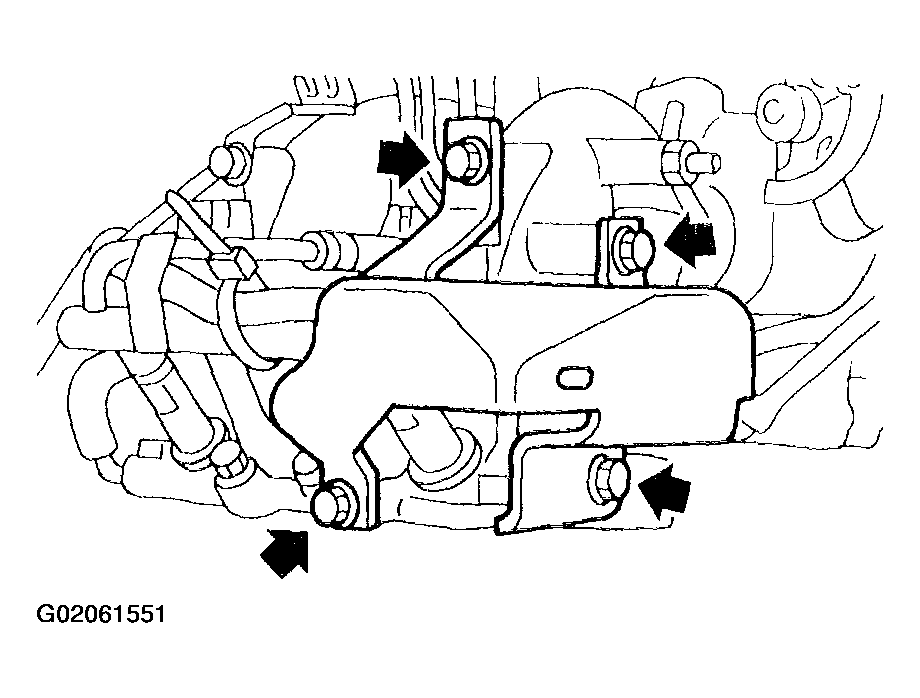

Remove fuel pipe protector LH.

Fig 7: Removing LH Fuel Pipe Protector
Disconnect connector from fuel injector.

Fig 8: Disconnecting Connector From Fuel Injector
Remove bolt which holds injector pipe to intake manifold.

Fig 9: Removing Bolt From Injector Pipe To Intake Manifold
Remove bolt which installs injector pipe to intake manifold.

Fig 10: Removing Bolt From Injector Pipe To Intake Manifold

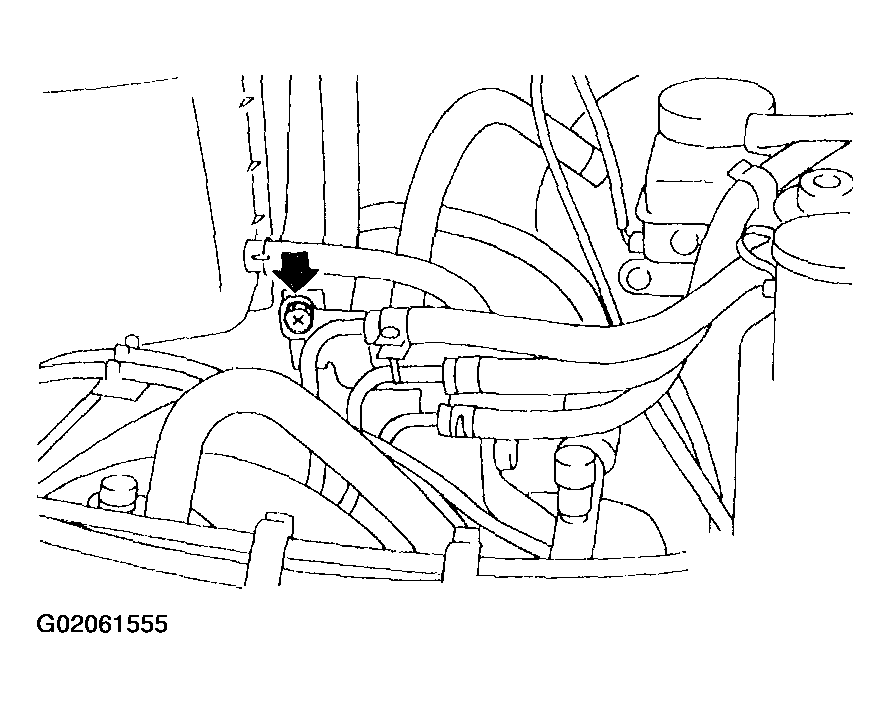

Remove bolt which holds fuel pipe on the left side intake manifold.

Fig 11: Removing Bolt From Fuel Pipe On Left Side Intake Manifold
Remove fuel injector from intake manifold.
1. Remove fuel injector securing clip (2500 cc models).

  Fig 12: Removing Fuel Injector Securing Clip (2500 cc Models)

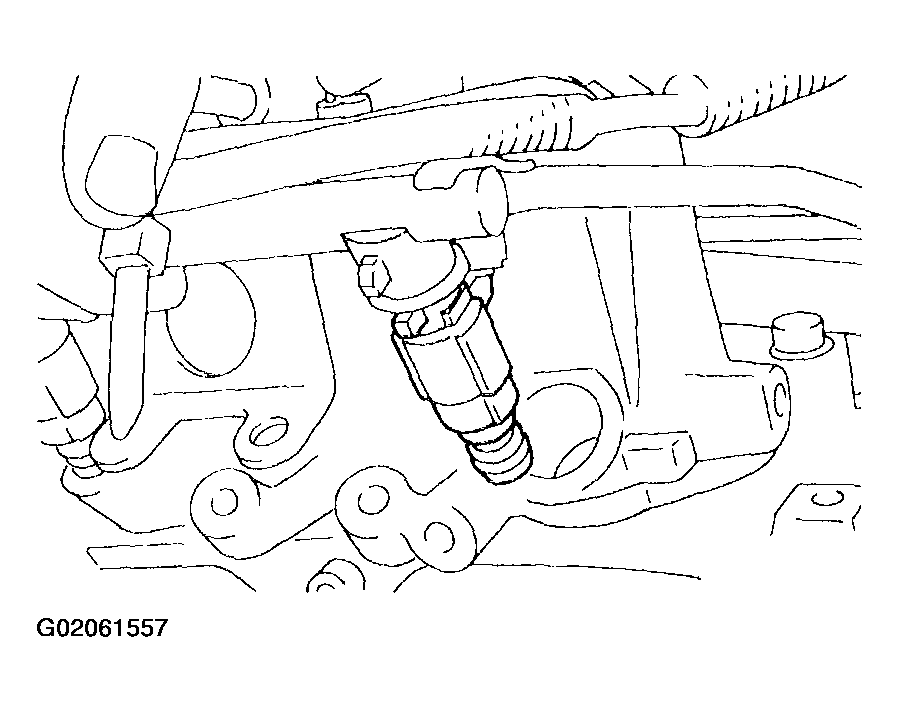

2. Remove fuel injector while lifting up fuel injector pipe.

  Fig 13: Removing Fuel Injector While Lifting Up Fuel Injector Pipe
