RH Side

Release fuel pressure. See RELEASING OF FUEL PRESSURE , FUEL.
Open fuel flap lid, and remove fuel filler cap.

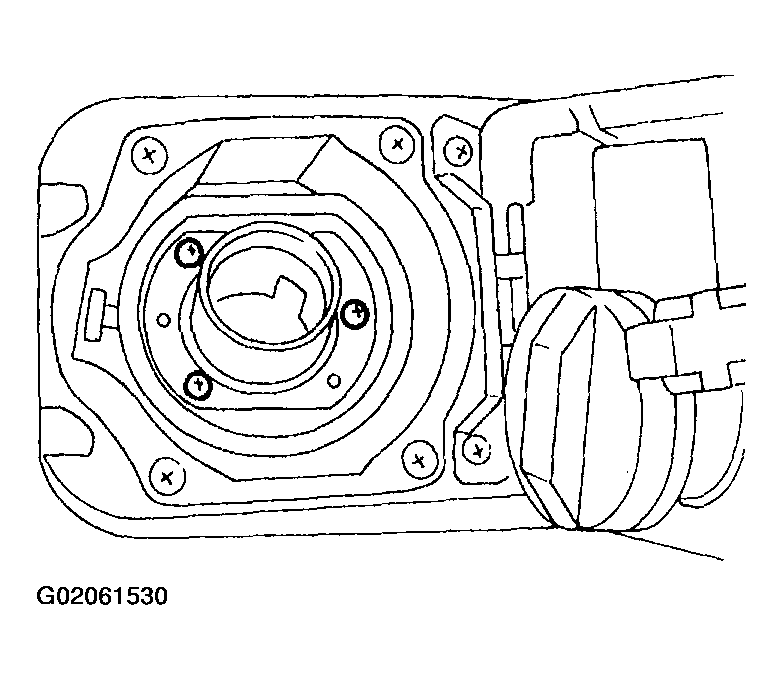

Fig 1: Removing Fuel Filler Cap
Disconnect battery ground cable.

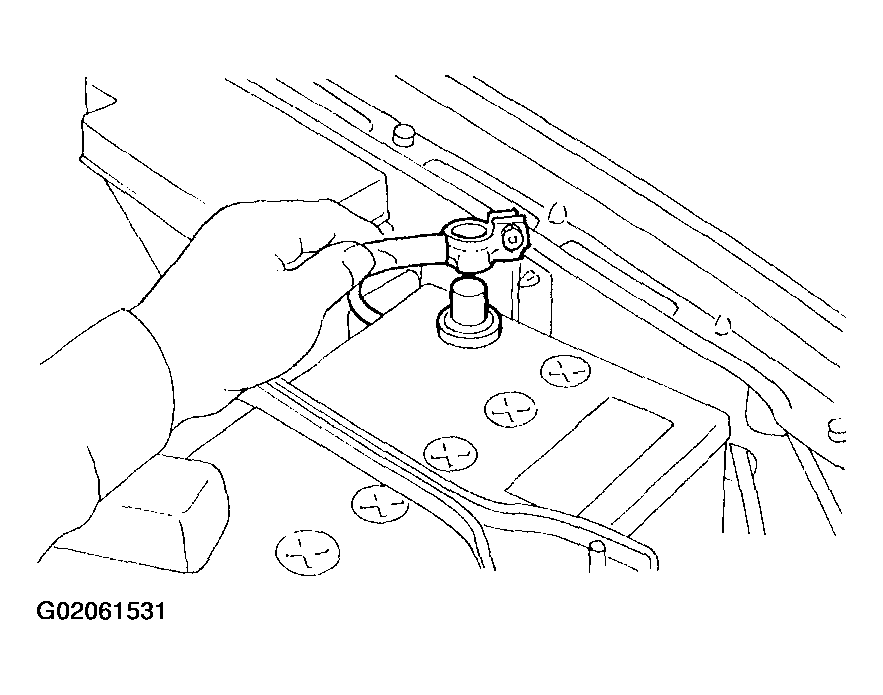

Fig 2: Disconnecting Battery Ground Cable
Remove air intake duct. See AIR CLEANER CASE .

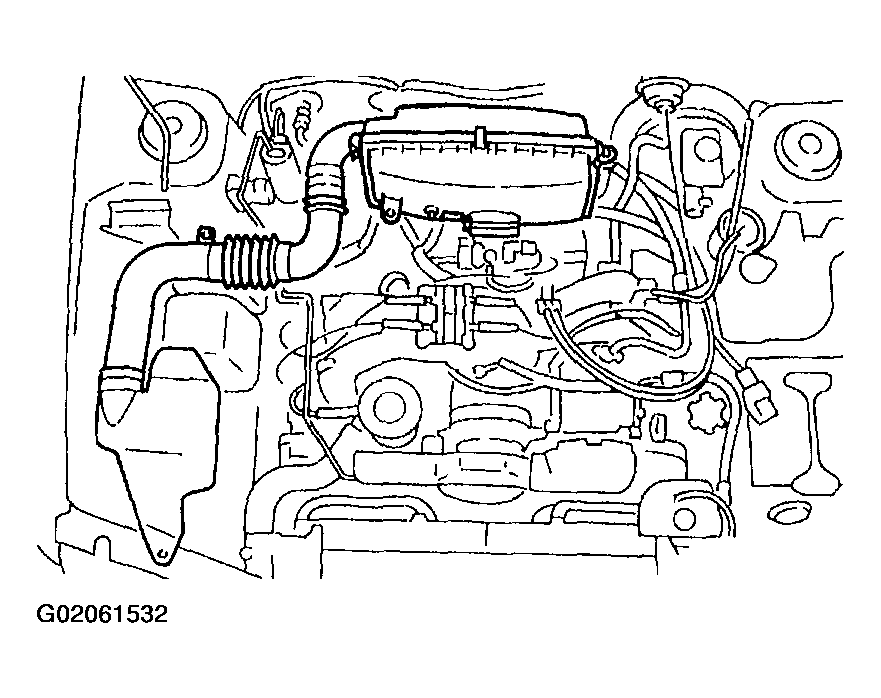

Fig 3: Identifying Air Intake Duct
Remove resonator chamber.
Remove spark plug cables from spark plugs (#1 and #3 cylinders).

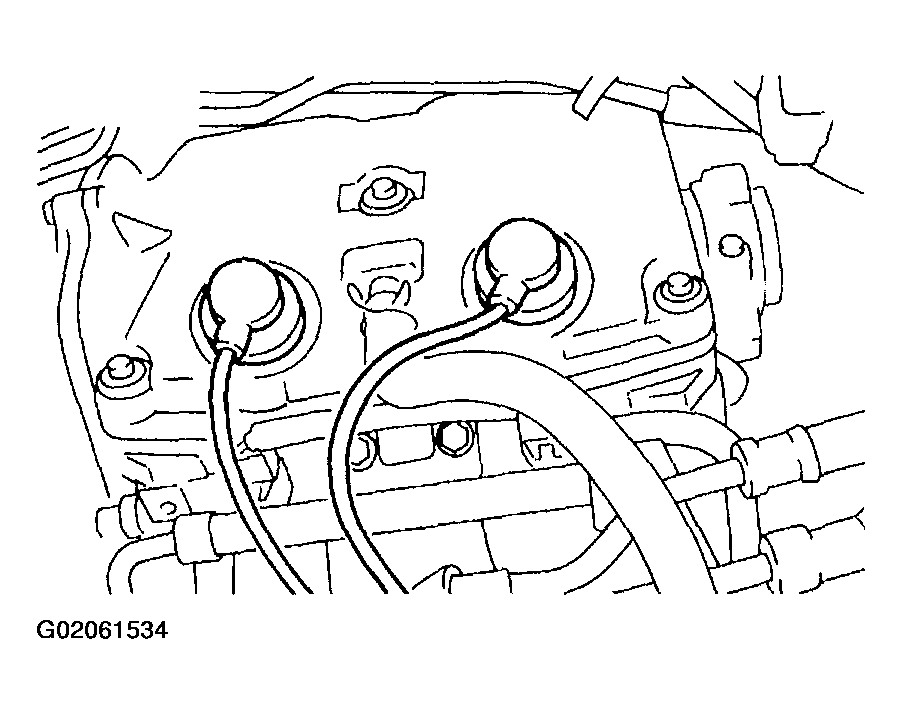

Fig 4: Removing Spark Plug Cables From Spark Plugs (#1 And #3 Cylinders)
Remove power steering pump from bracket.
1. Remove V-belt covers.

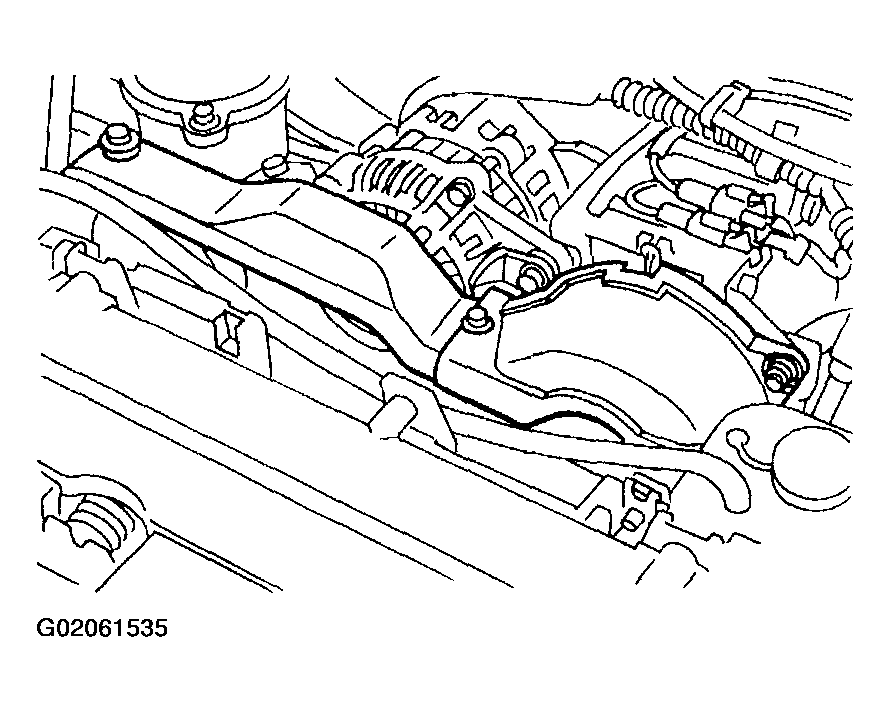

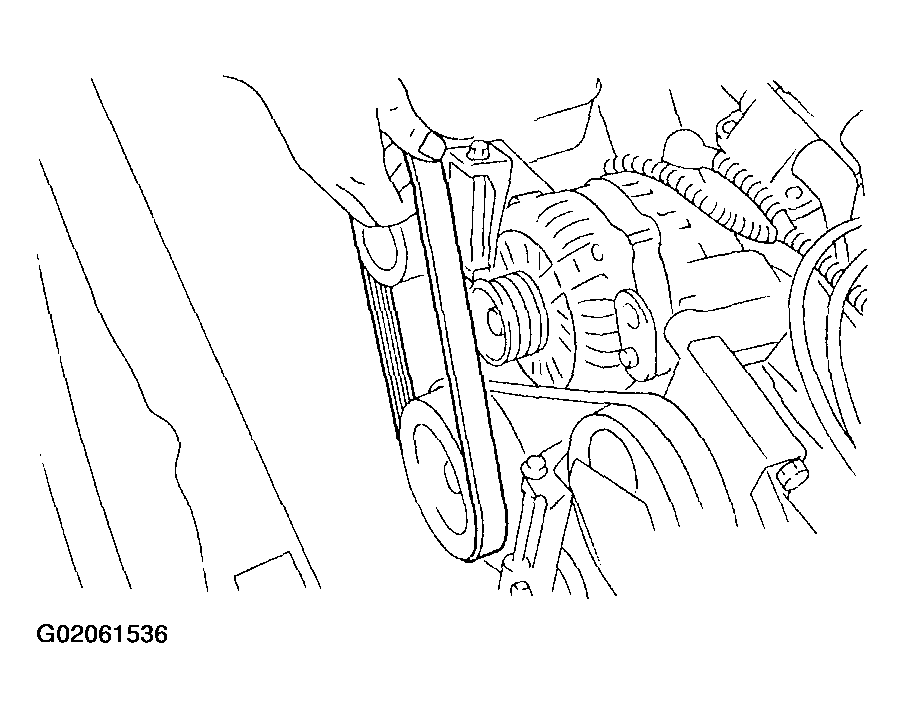

  Fig 5: Removing V-Belt Covers
2. Loosen lock bolt and slider bolt, and remove power steering pump drive V-belt.

  Fig 6: Removing Power Steering Pump Drive V-Belt
3. Remove bolts which secure power steering pipes brackets to intake manifold.

  Fig 7: Removing Bolts From Power Steering Pipes Brackets To Intake Manifold

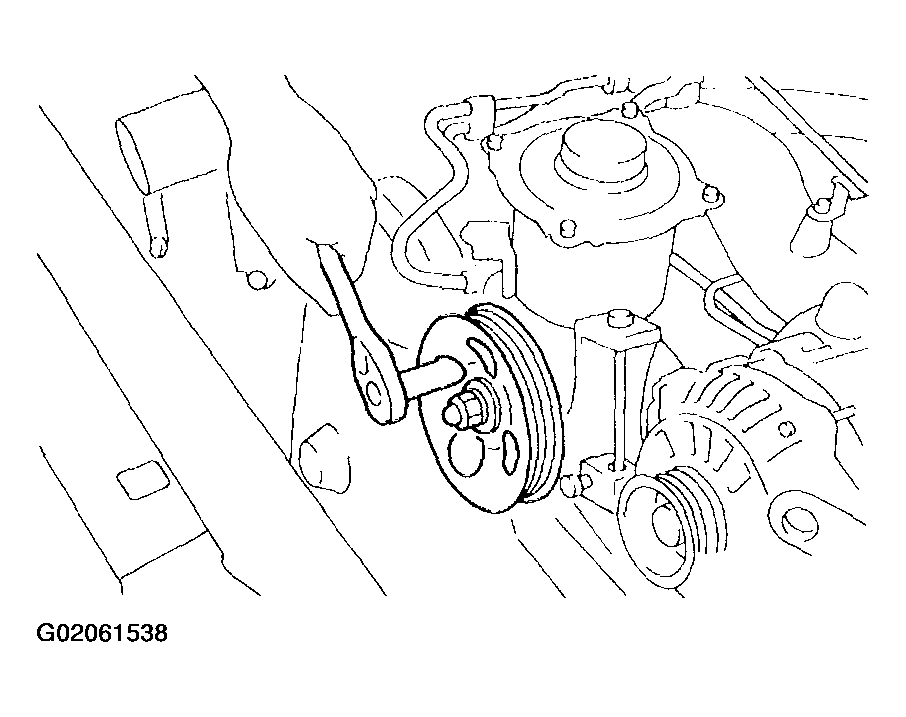

4. Remove bolts which install power steering pump to bracket.

  Fig 8: Removing Bolts From Power Steering Pump To Bracket
5. Place power steering pump on the right side wheel apron.

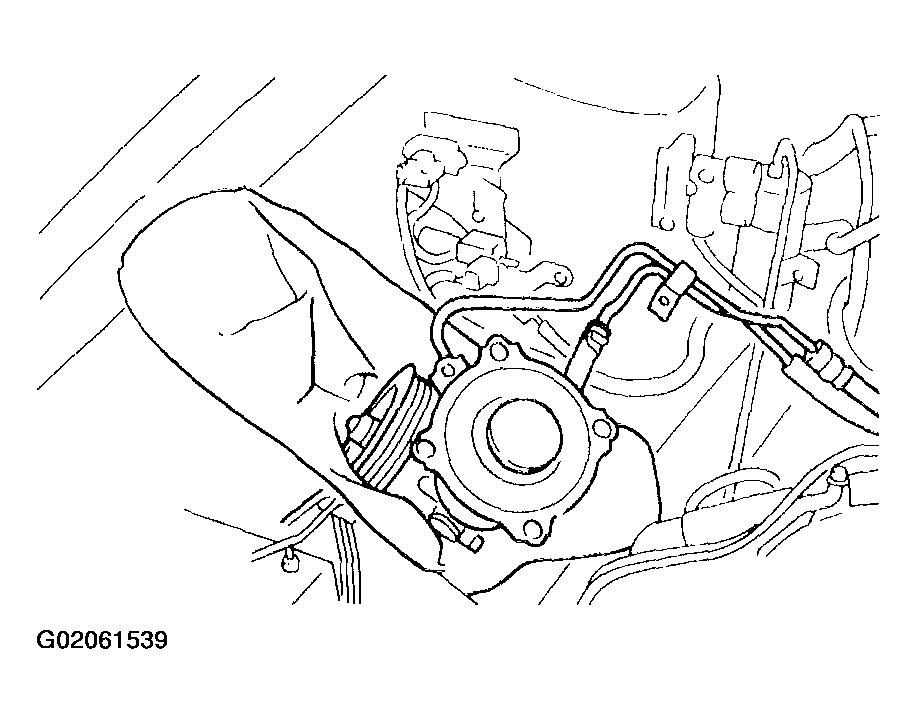

  Fig 9: Placing Power Steering Pump On Wheel Apron
Disconnect connector from fuel injector.

Fig 10: Disconnecting Connector From Fuel Injector
Remove bolt which install injector pipe to intake manifold.

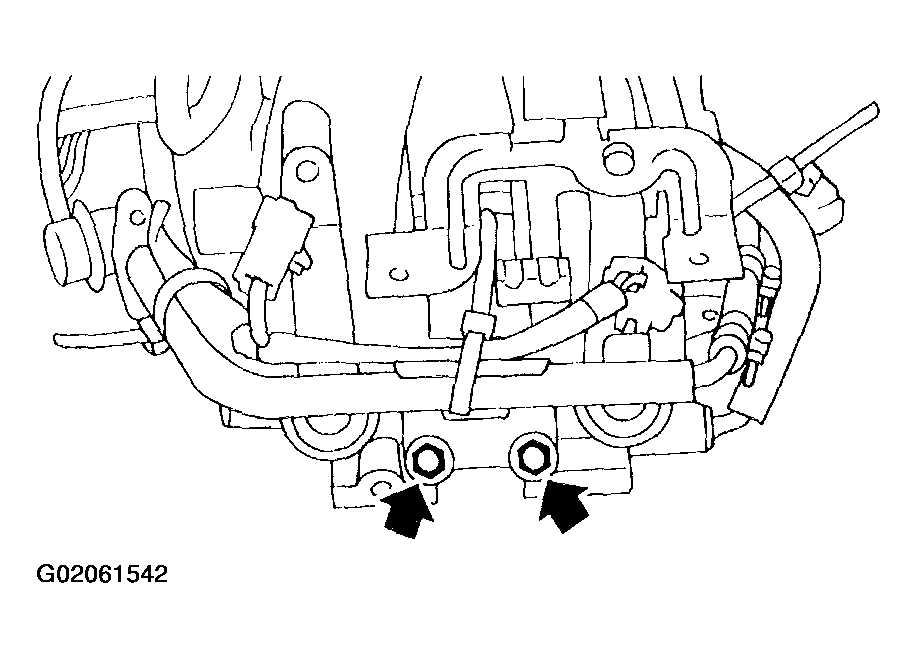

Fig 11: Removing Bolt From Injector Pipe To Intake Manifold
Remove bolt which installs injector pipe on intake manifold.

Fig 12: Removing Bolt From Injector Pipe On Intake Manifold
Remove fuel injector from intake manifold.
1. Remove fuel injector securing clip (2500 cc models).

  Fig 13: Removing Fuel Injector Securing Clip (2500 cc Models)
2. Remove fuel injector while lifting up fuel injector pipe.

  Fig 14: Removing Fuel Injector While Lifting Up Fuel Injector Pipe
