Purge Control Solenoid Valve: Installation

Install in the reverse order of removal.

Tightening torque: 16 N.m (1.6 kgf-m, 11.6 ft-lb)

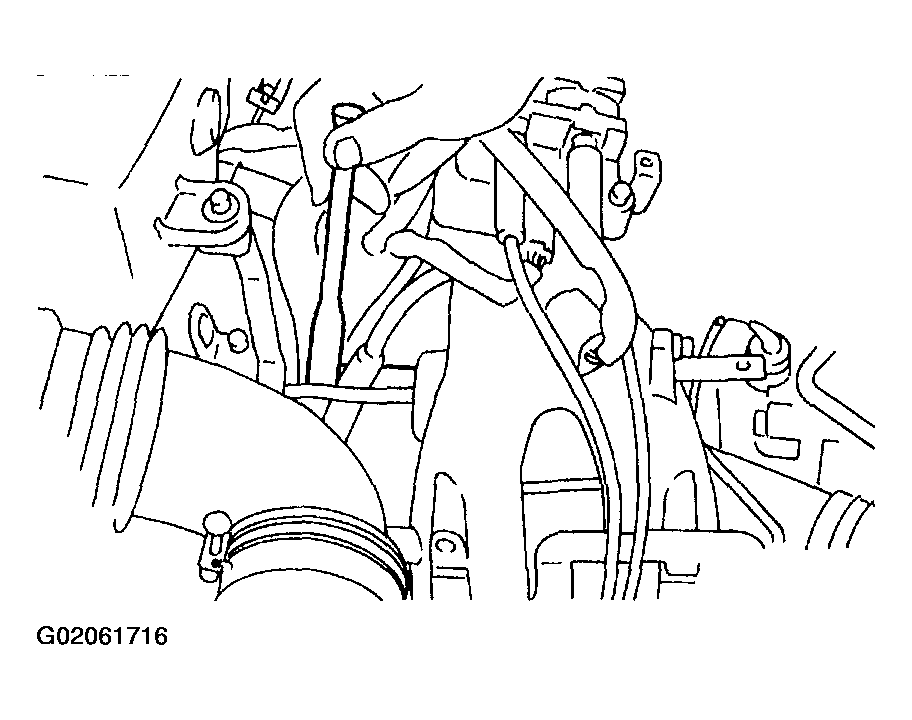

Fig 1: Installing Purge Control Solenoid Valve In Reverse Order

G02061716

CAUTION: Carefully connect the evaporation hoses.

Fig 2: Connecting Evaporation Hoses

G02061717
