A/T Select Lever: Removal

  1. Remove the cable.
    1. Prior to removal, set lever to "N" position.
    2. Remove front exhaust pipe.

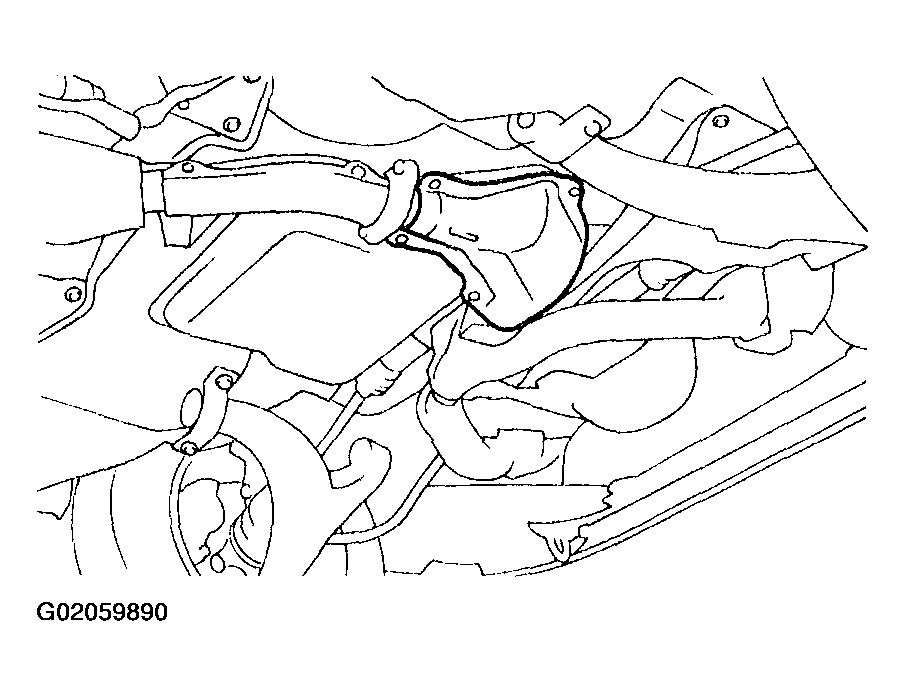

      3. Fig 1: Removing Front Exhaust Pipe
      G02059890
    3. Separate cable from transmission lever.
    4. Remove clamp from transmission case.

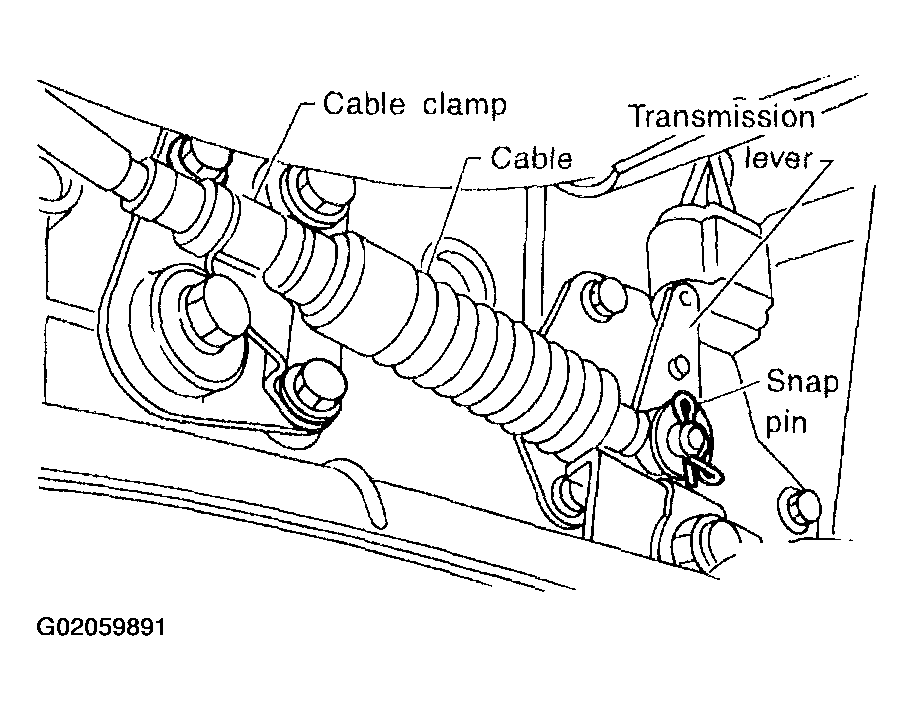

      5. Fig 2: Separating Cable From Transmission Lever
      G02059891
    5. Disconnect cable from select lever and then remove cable bracket

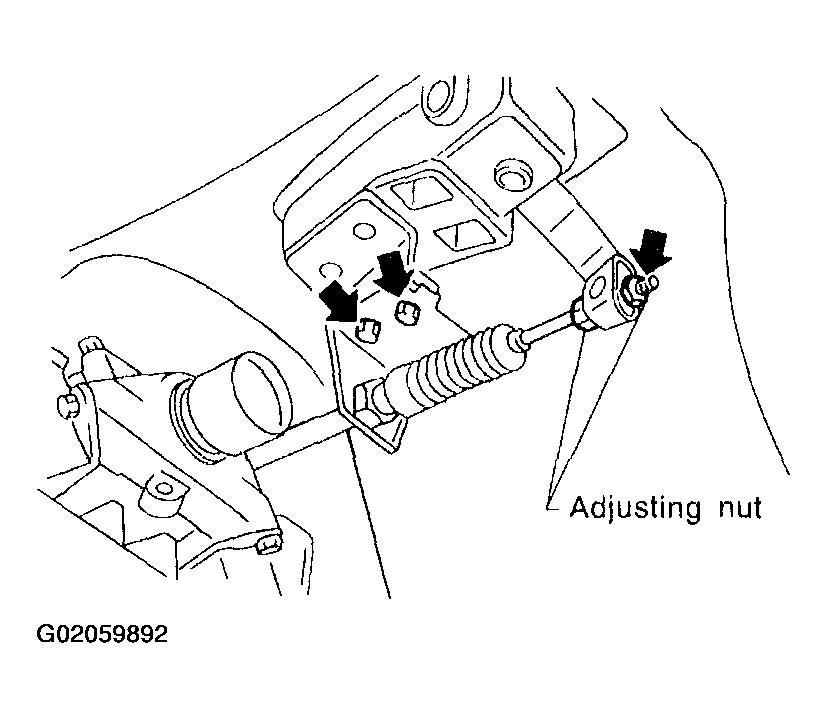

      6. Fig 3: Disconnecting Cable From Select Lever
      G02059892
  2. Remove console box. See CONSOLE BOX .
  3. Disconnect the connectors, then remove the six screws to take out the select lever assembly from the body.

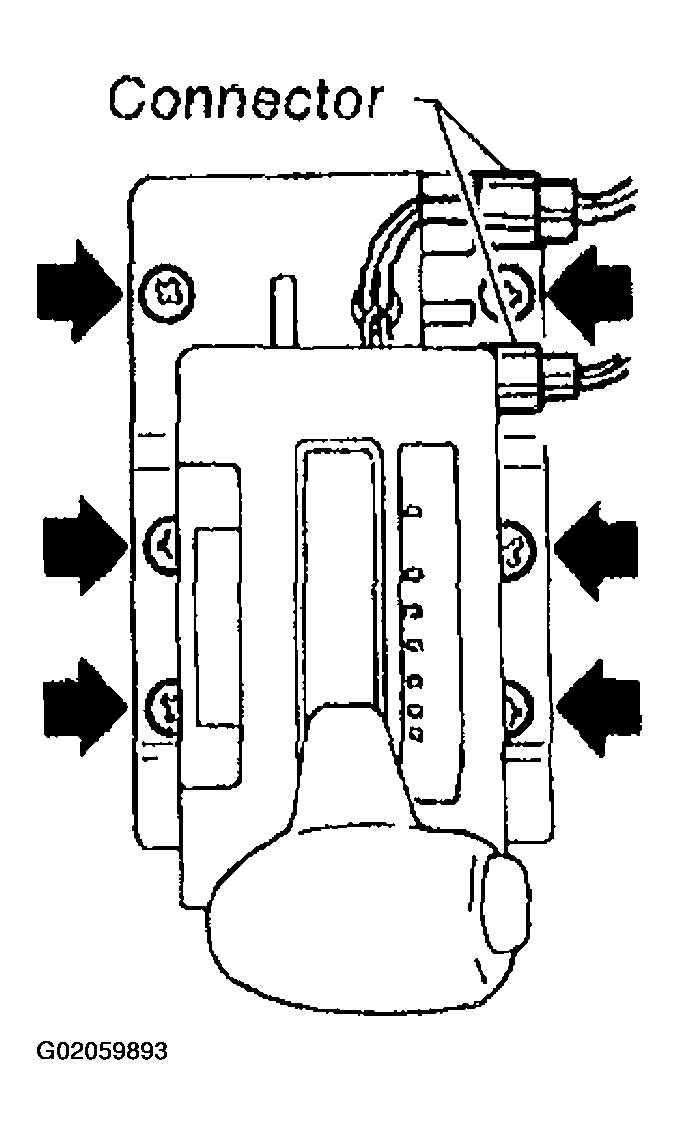

    Fig 4: Removing Select Lever Assembly
    G02059893
