Electrical Components Location: Location

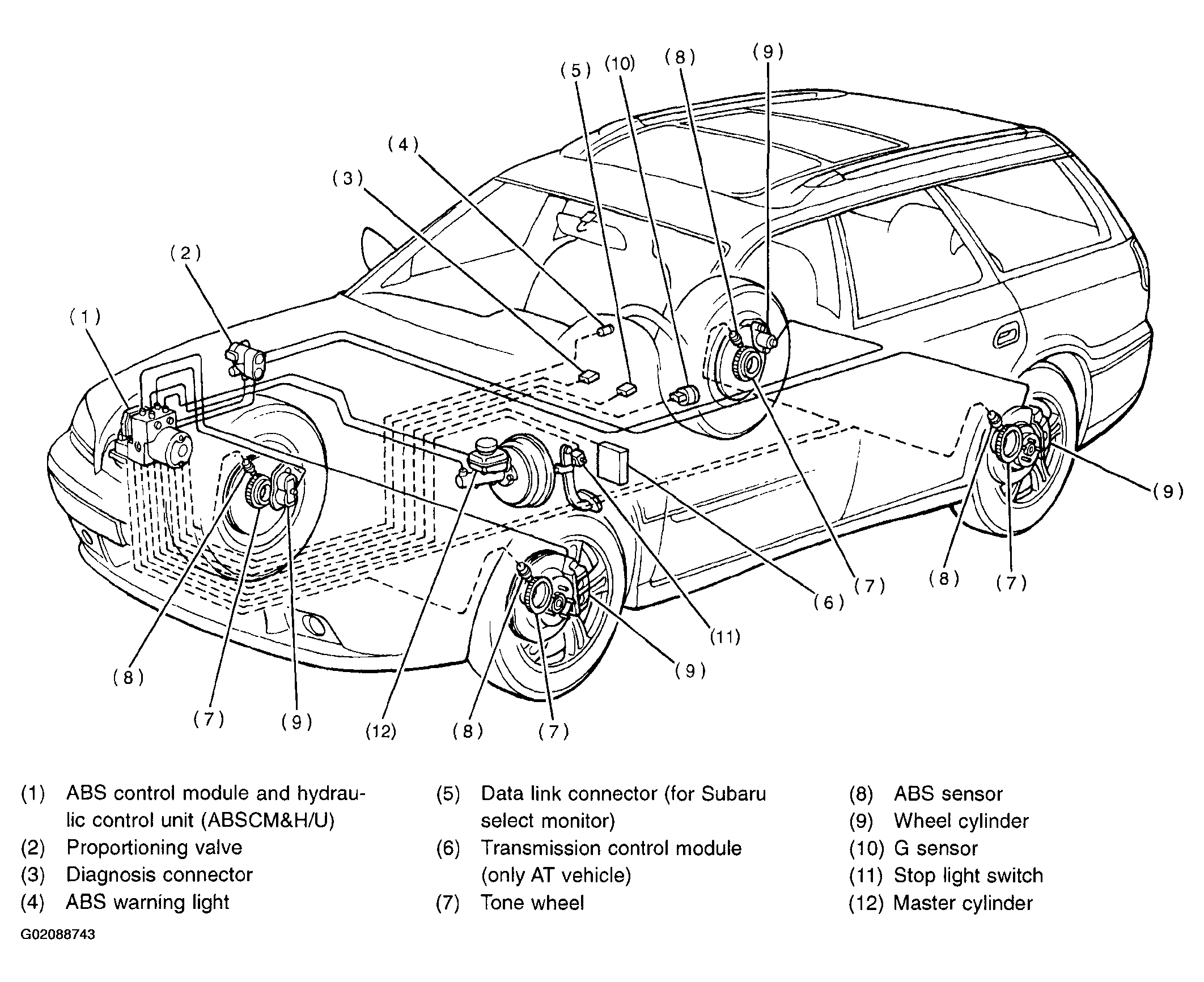

Fig 1: Electrical Components Location Chart (1 Of 2)

G02088743

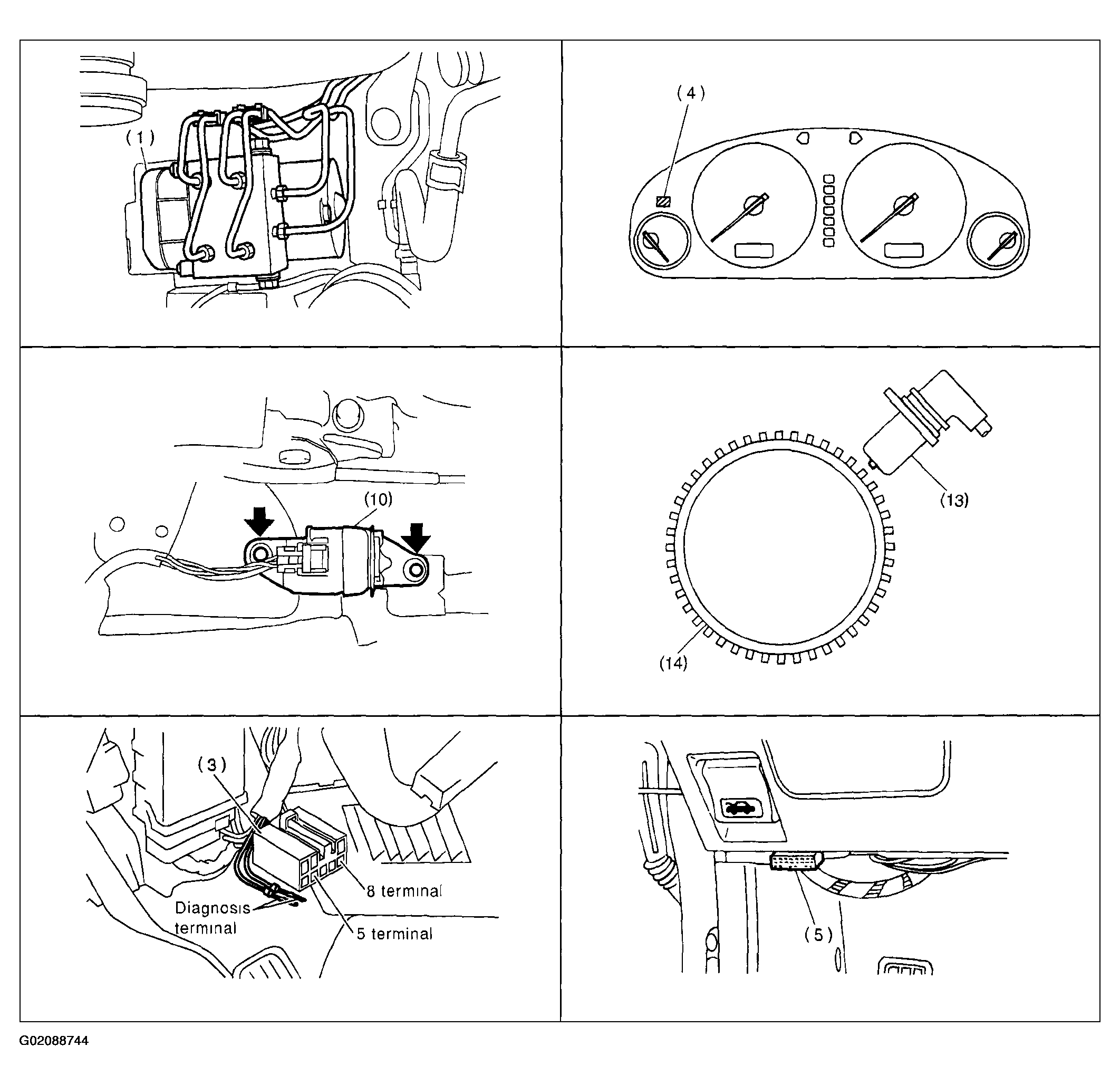

Fig 2: Electrical Components Location Chart (2 Of 2)

G02088744
