Brakes
›
Traction Control
›
Anti-Lock Braking System (Diagnostics)
›
List of Diagnostics Trouble Code
›
With SUBARU Select Monitor
With SUBARU Select Monitor
Fig 1: Diagnostics Trouble Code Chart (With Subaru Select Monitor - 1 Of 2)

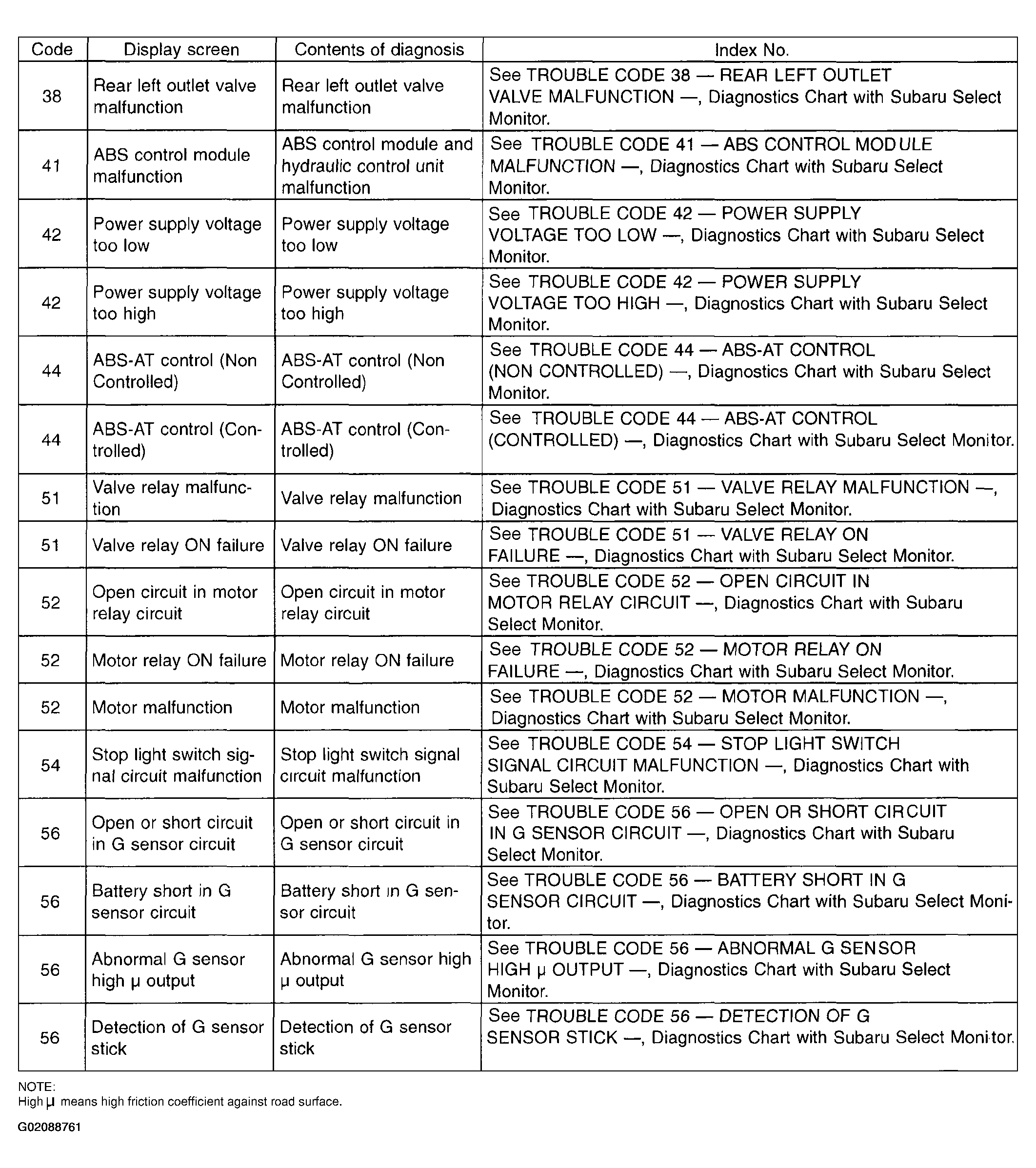

Fig 2: Diagnostics Trouble Code Chart (With Subaru Select Monitor - 2 Of 2)
