G Sensor: Removal

  1. Disconnect battery ground terminal.

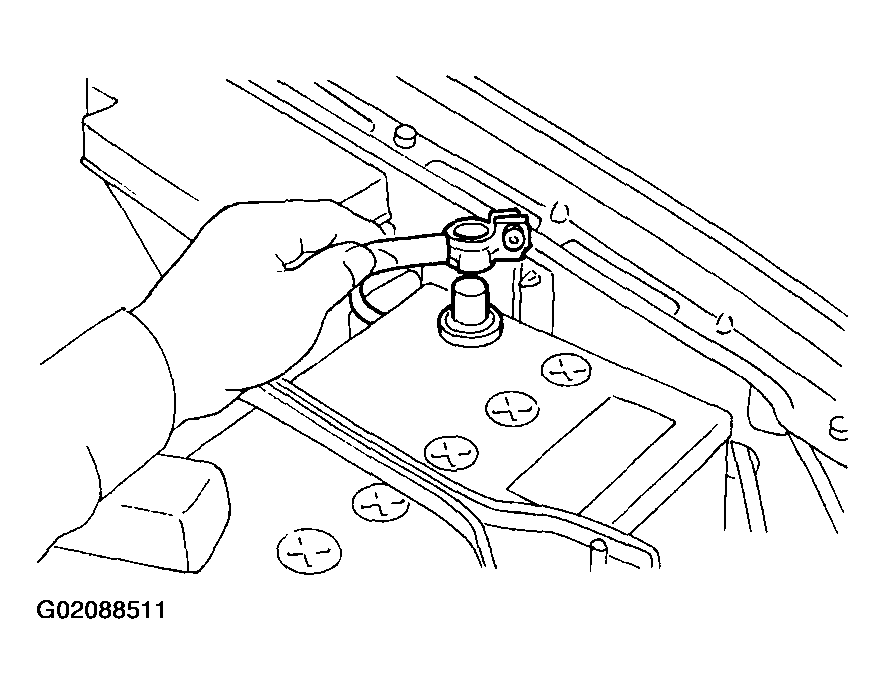

    Fig 1: Disconnecting Battery Ground Terminal
    G02088511
  2. Remove console cover. See CONSOLE BOX .
  3. Disconnect connector from G sensor.
  4. Remove G sensor from body.
    CAUTION: Do not drop or bump G sensor.
    Fig 2: Removing G Sensor
    G02088512
