With SUBARU Select Monitor

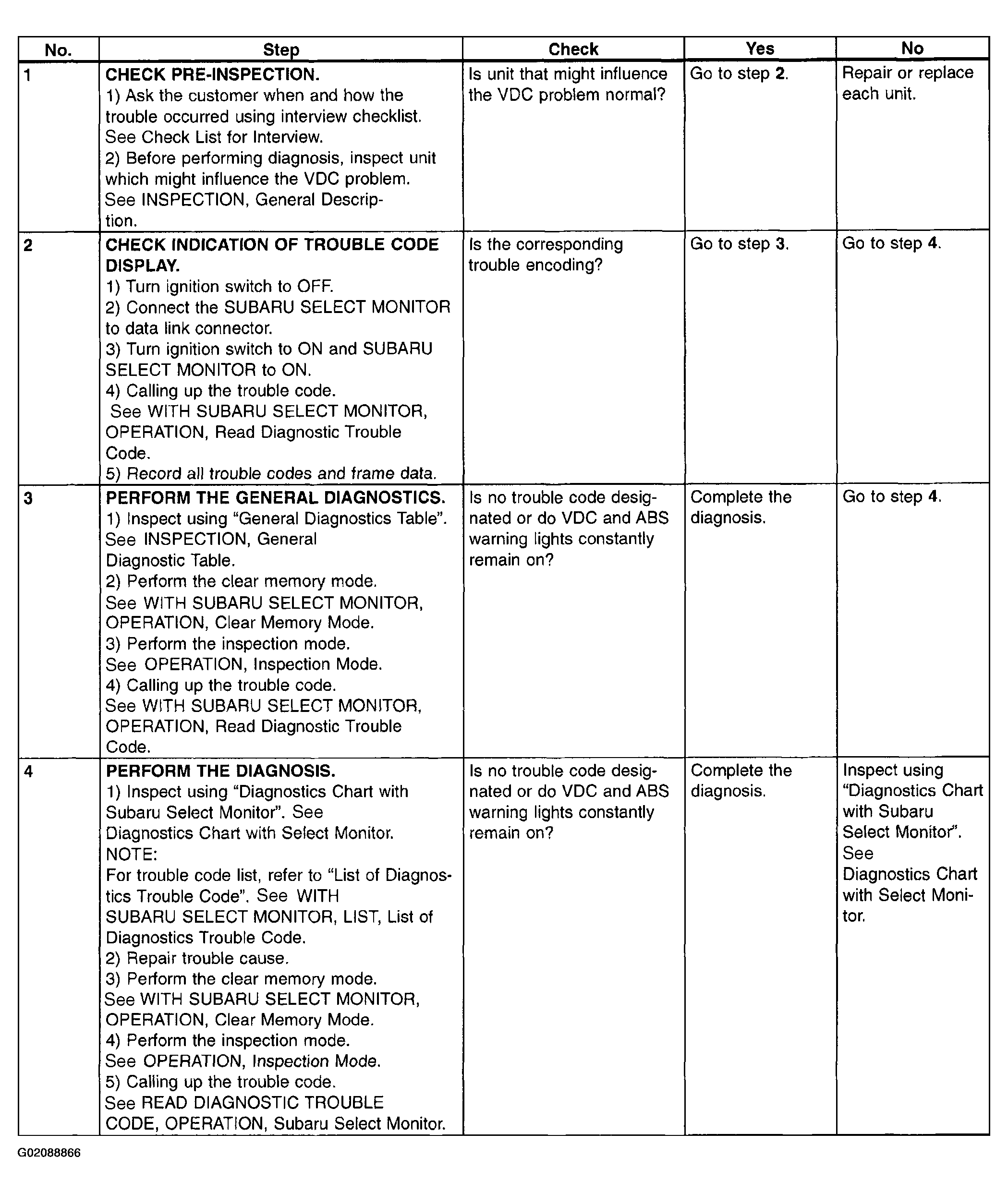

Fig 1: Basic Diagnostic Chart (With Subaru Select Monitor)

G02088866

NOTE:

To check harness for broken wires or short circuits, shake it while holding it or the connector.
Check list for interview. See Check List for Interview .
