Diagnostic Chart

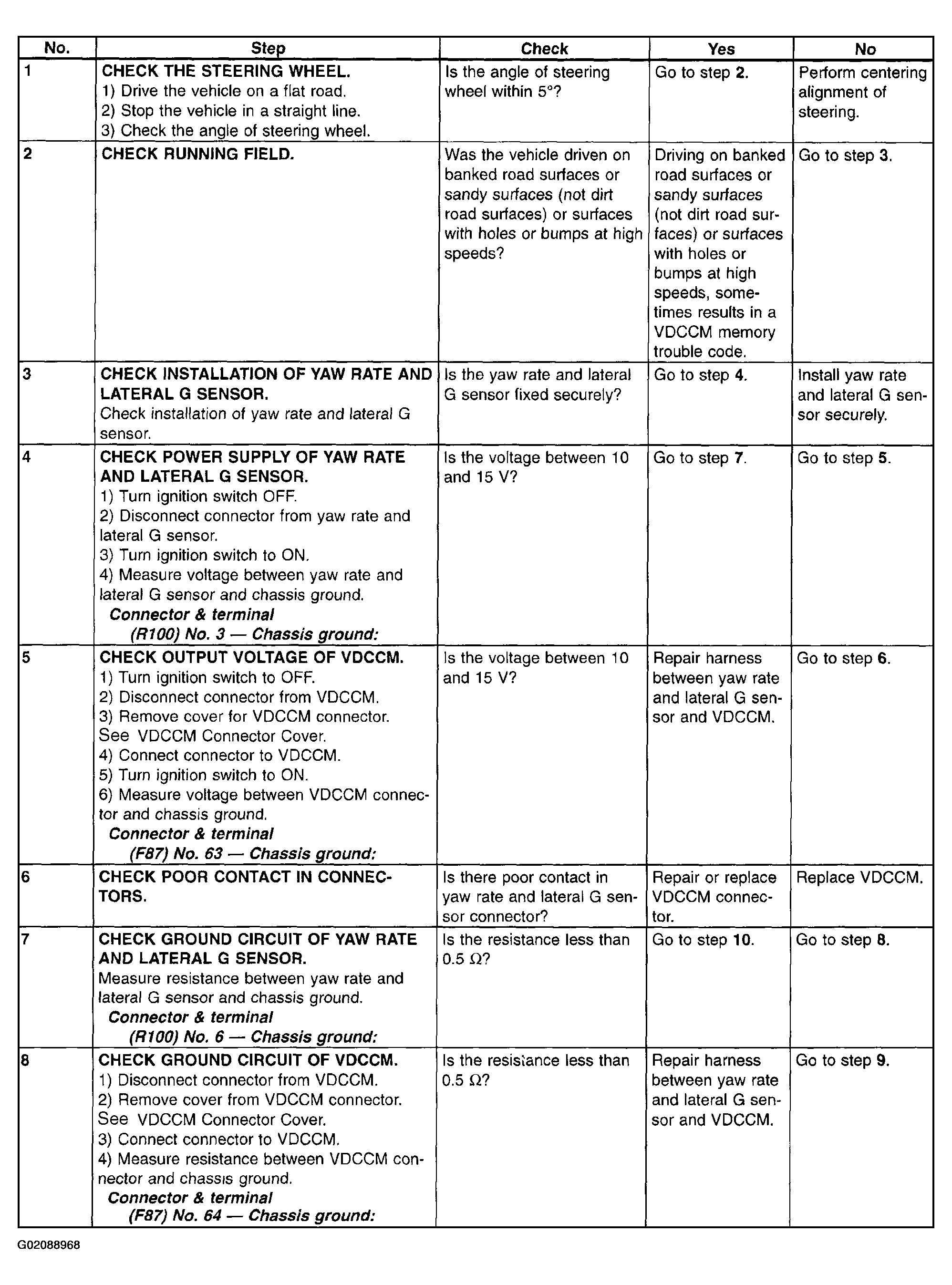

Fig 1: Diagnostic Chart - Trouble Code 72 - With Diagnostic Connector (1 Of 3)
G02088968

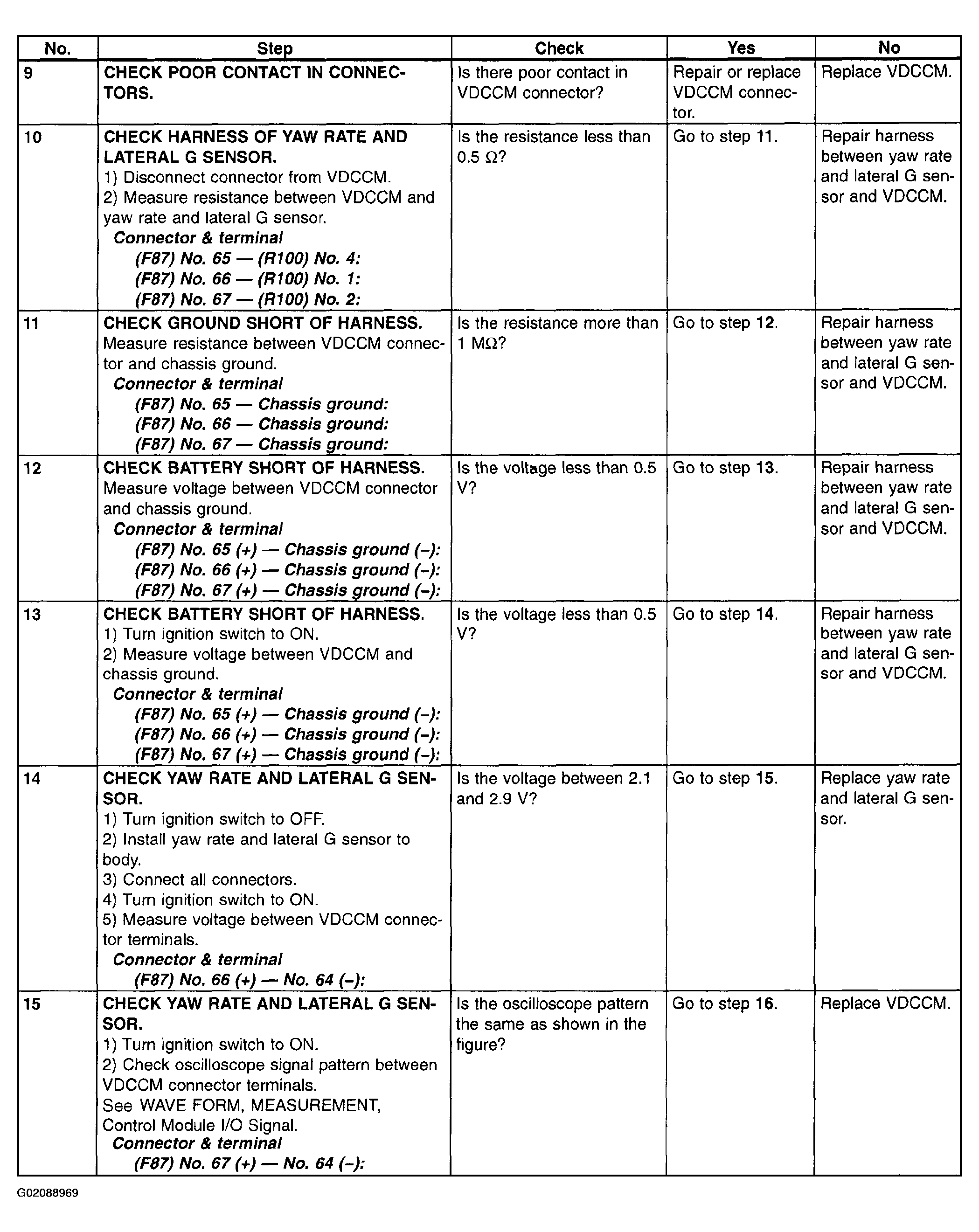

Fig 2: Diagnostic Chart - Trouble Code 72 - With Diagnostic Connector (2 Of 3)
G02088969

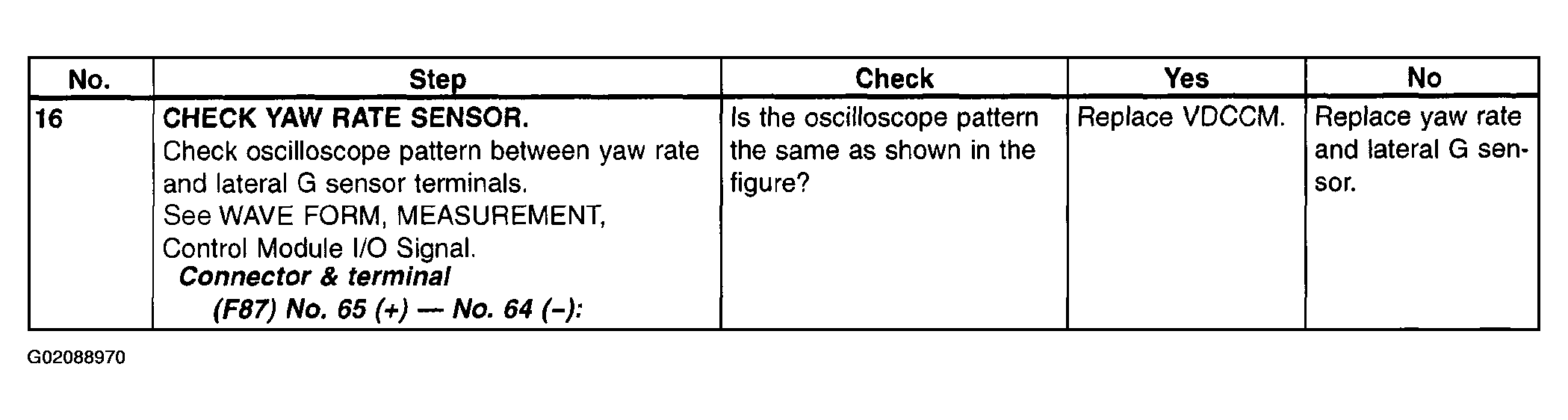

Fig 3: Diagnostic Chart - Trouble Code 72 - With Diagnostic Connector (3 Of 3)
G02088970
