Vehicle Dynamics Control (Diagnostics)
›
Diagnostics Chart With Diagnosis Connector
›
Code 73: Abnormal Lateral G Sensor
›
Diagnostic Chart
Diagnostic Chart

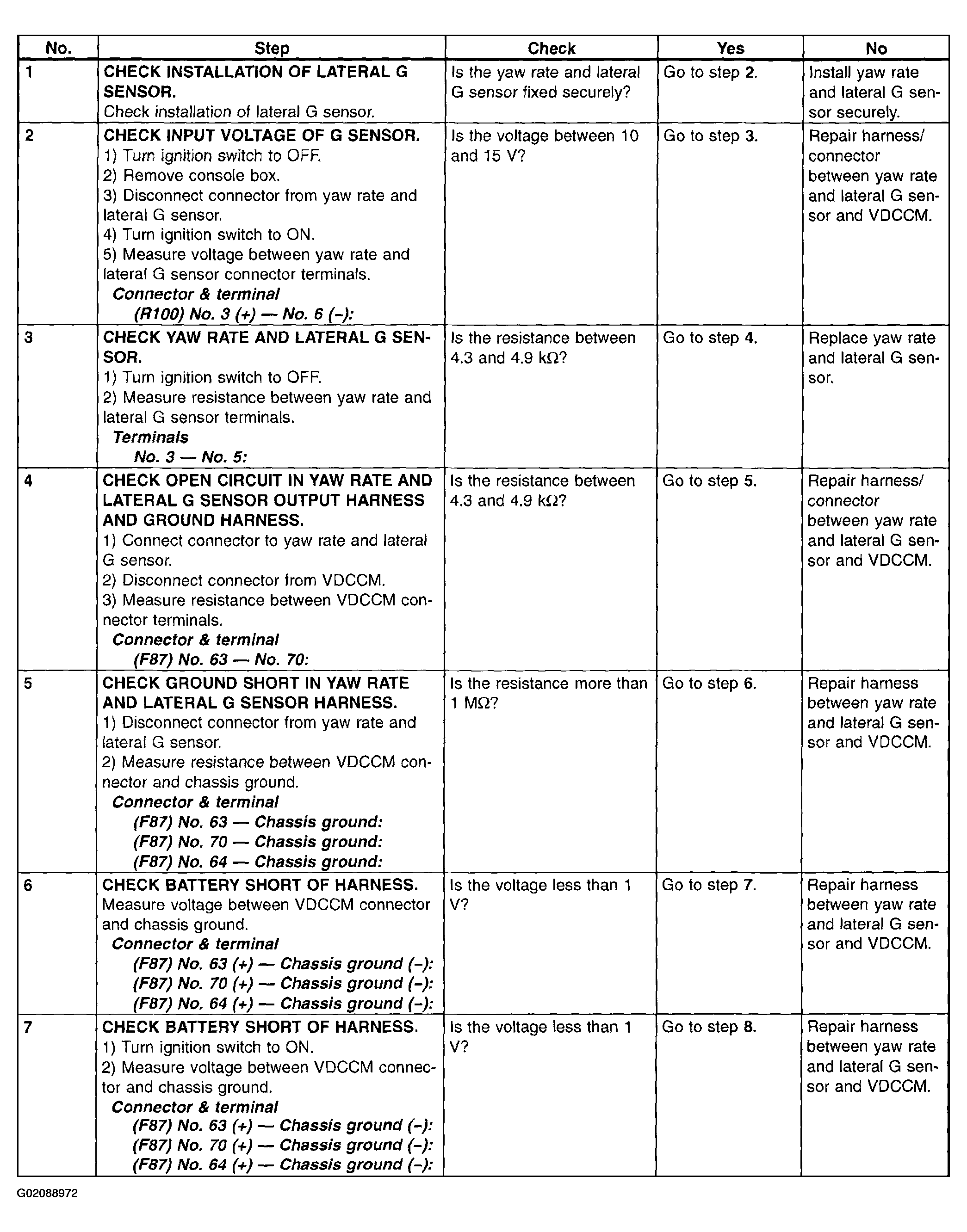

Fig 1: Diagnostic Chart - Trouble Code 73 - With Diagnostic Connector (1 Of 2)

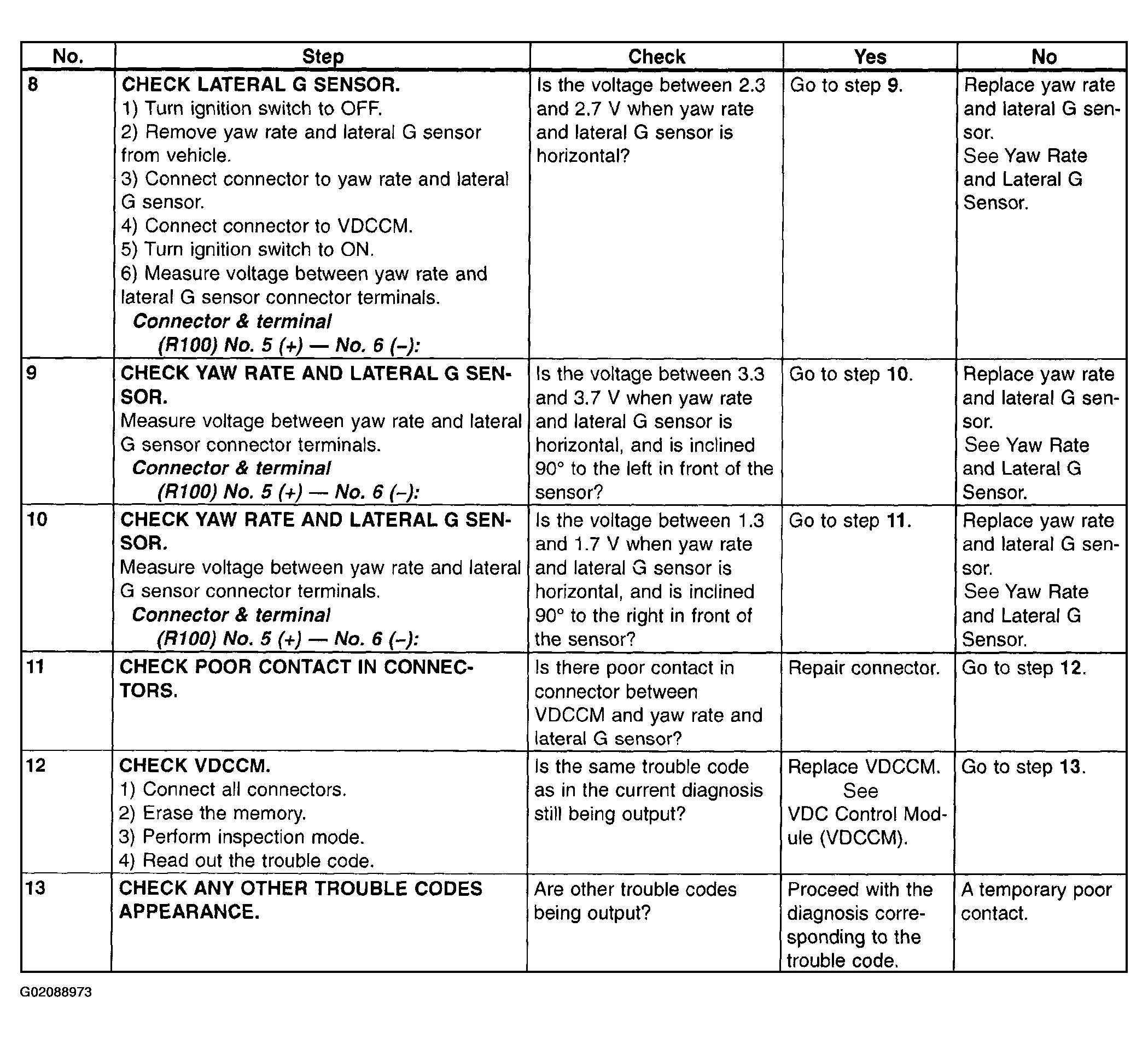

Fig 2: Diagnostic Chart - Trouble Code 73 - With Diagnostic Connector (2 Of 2)
