Communication For Initializing Impossible (Select Monitor Communication Failure): Wiring Diagram

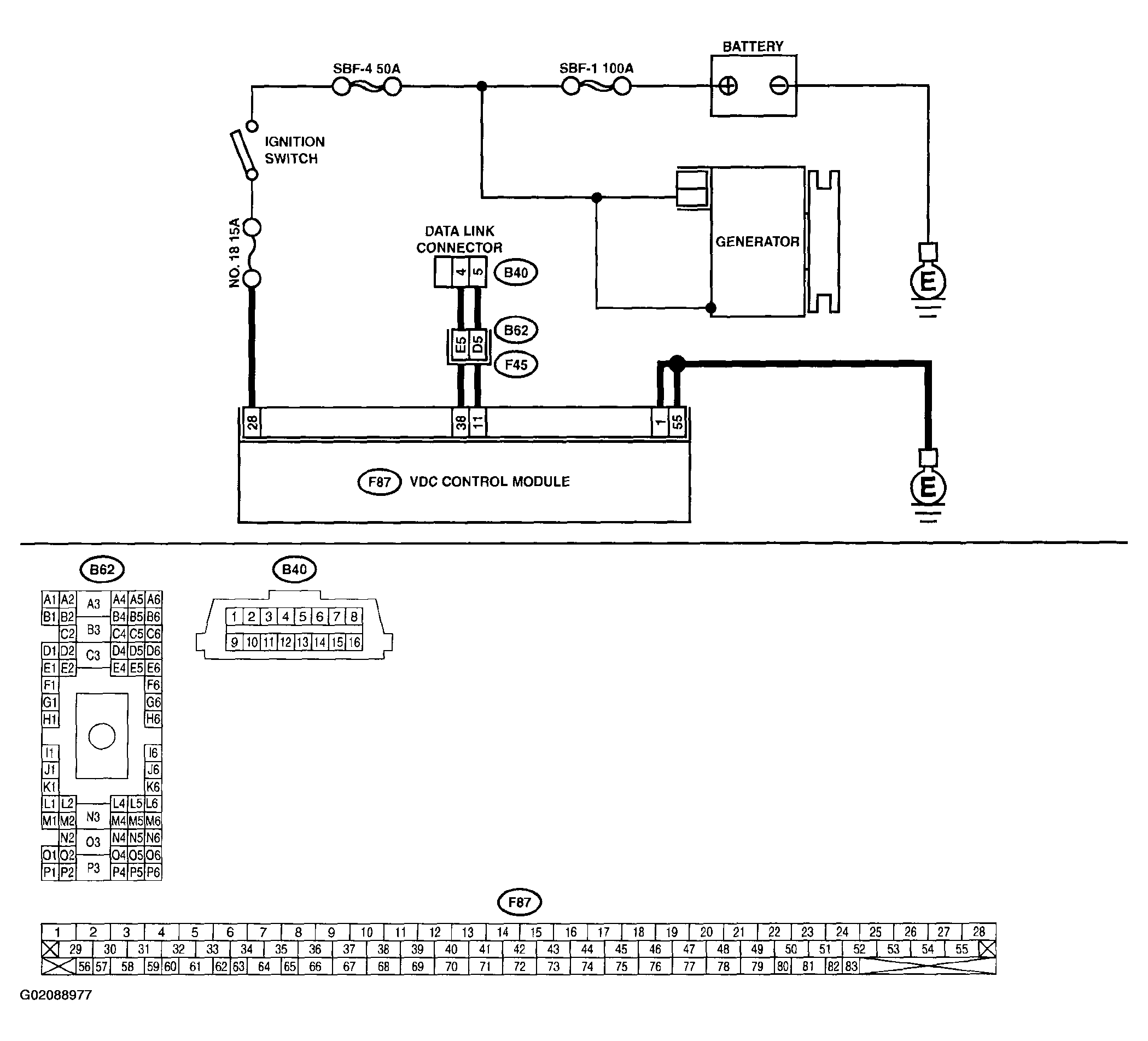

Fig 1: Wiring Diagram - Select Monitor Communication Failure
G02088977
