Diagnostic Chart

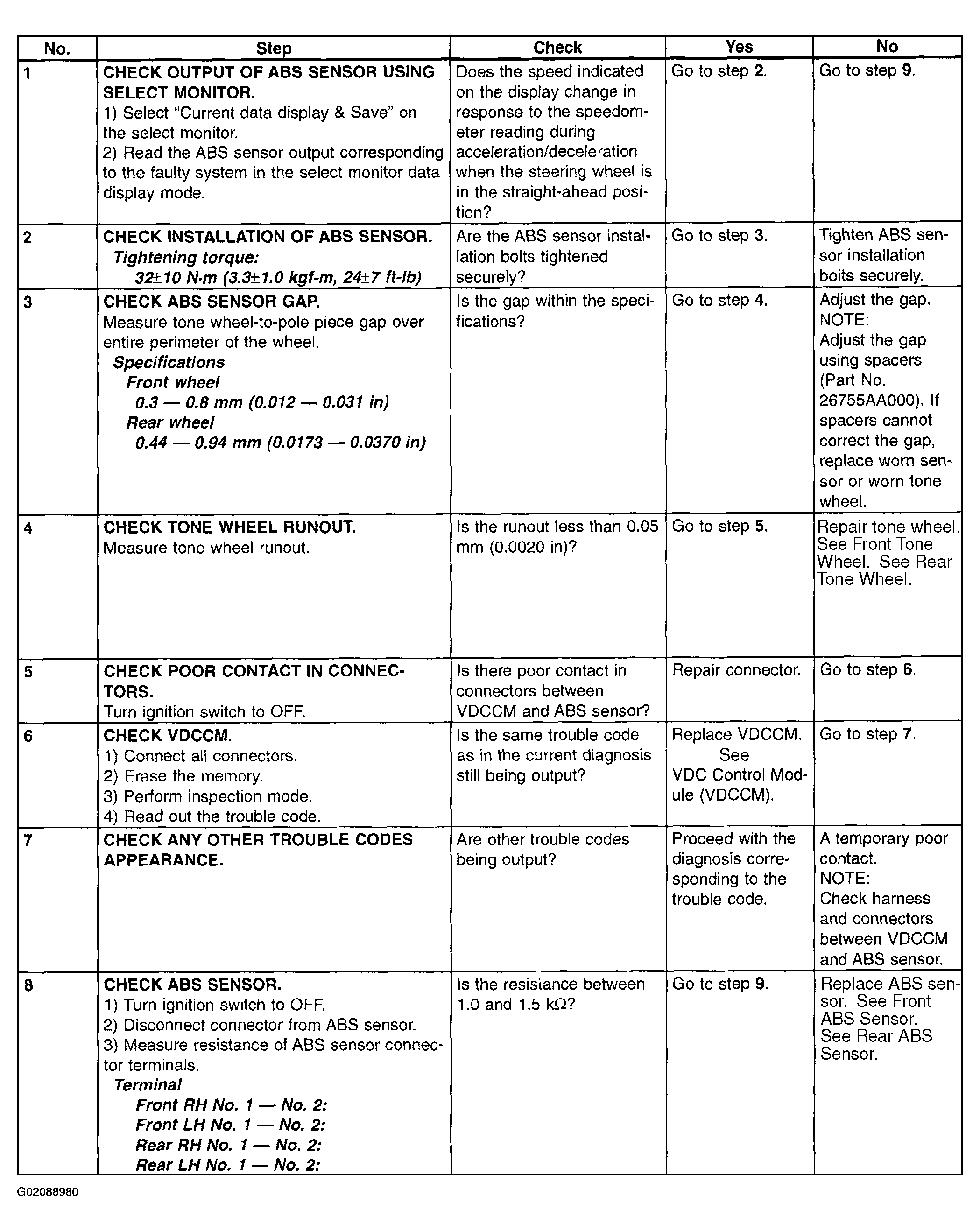

Fig 1: Diagnostic Chart - Trouble Codes 21,23,25 & 27 - With Select Monitor (1 Of 3)
G02088980

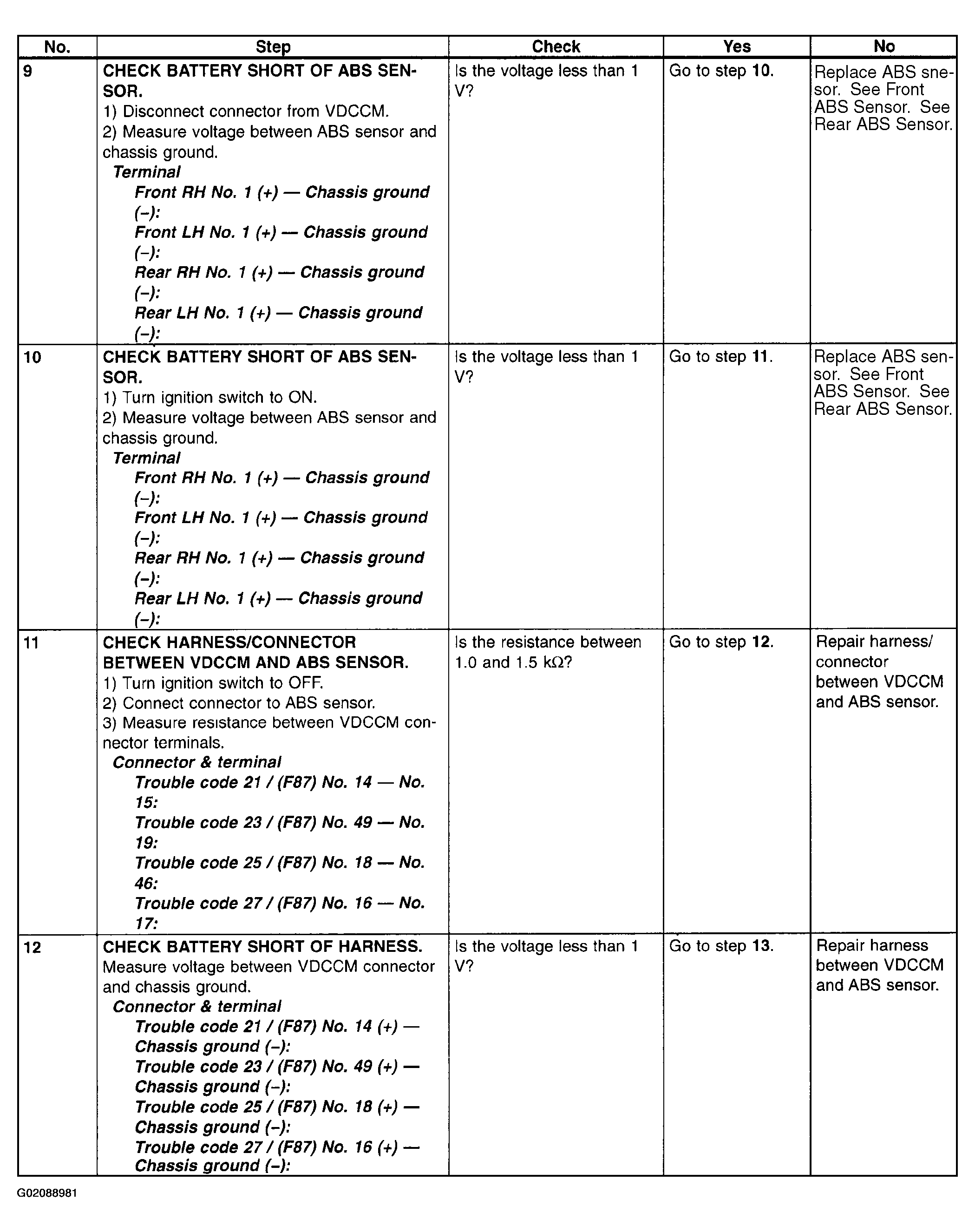

Fig 2: Diagnostic Chart - Trouble Codes 21,23,25 & 27 - With Select Monitor (2 Of 3)
G02088981

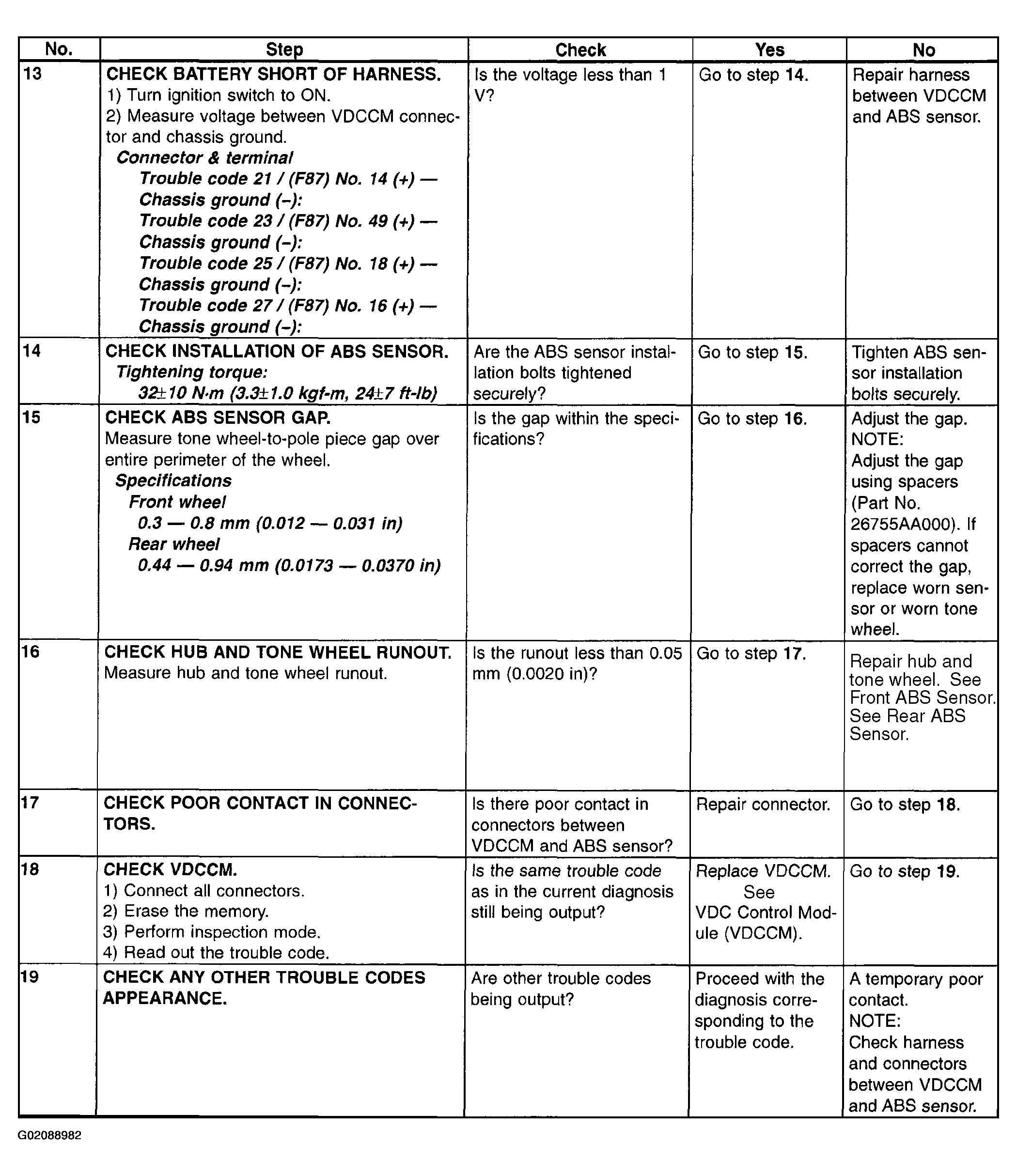

Fig 3: Diagnostic Chart - Trouble Codes 21,23,25 & 27 - With Select Monitor (3 Of 3)
G02088982
