Trouble Code 28 Rear Left Abs Sensor Signal: Wiring Diagram

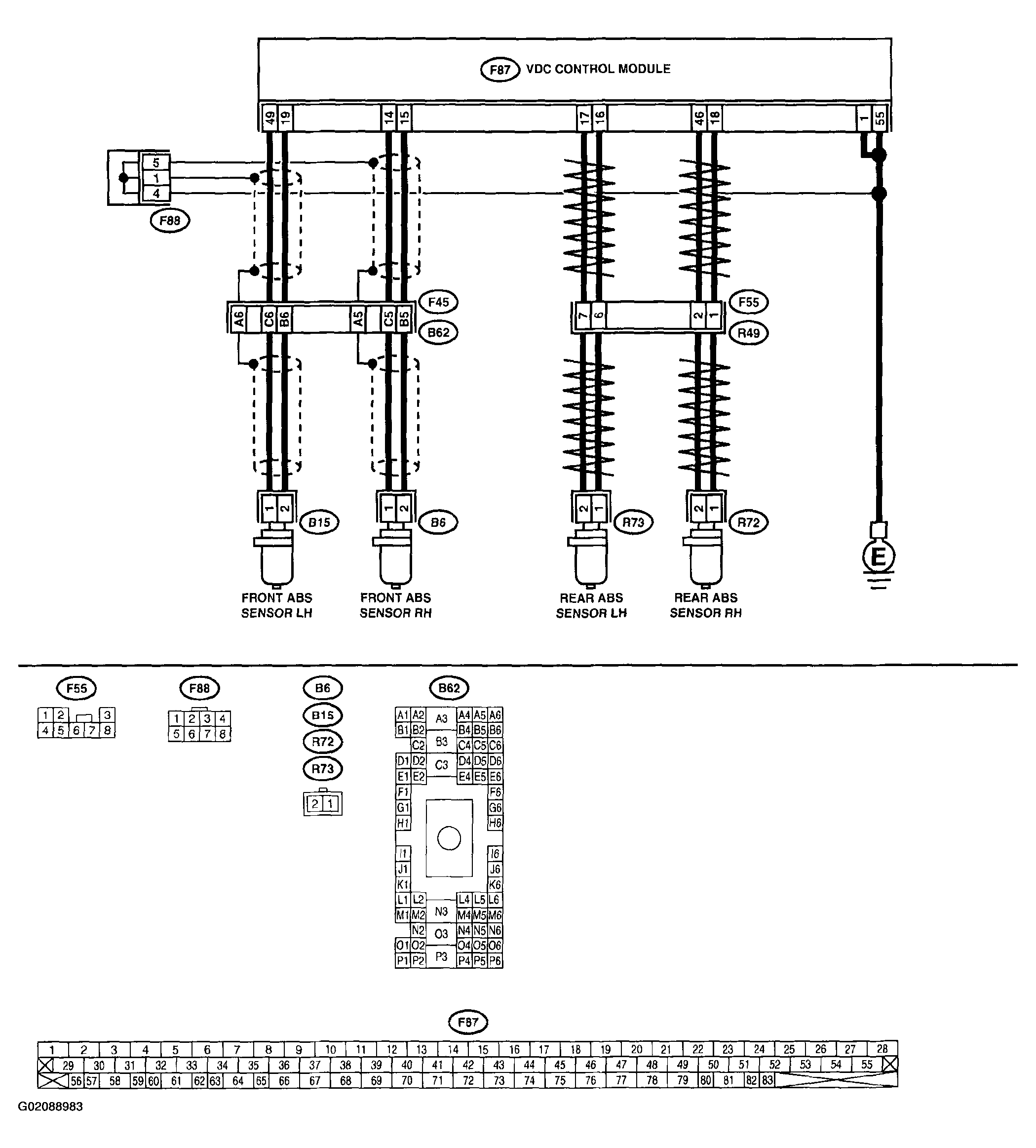

Fig 1: Wiring Diagram - Trouble Codes 22, 24, 26 & 28 - With Select Monitor

G02088983
