Trouble Code 43 AEB Communication Line Malfunction
›
Wiring Diagram
Trouble Code 43 AEB Communication Line Malfunction: Wiring Diagram

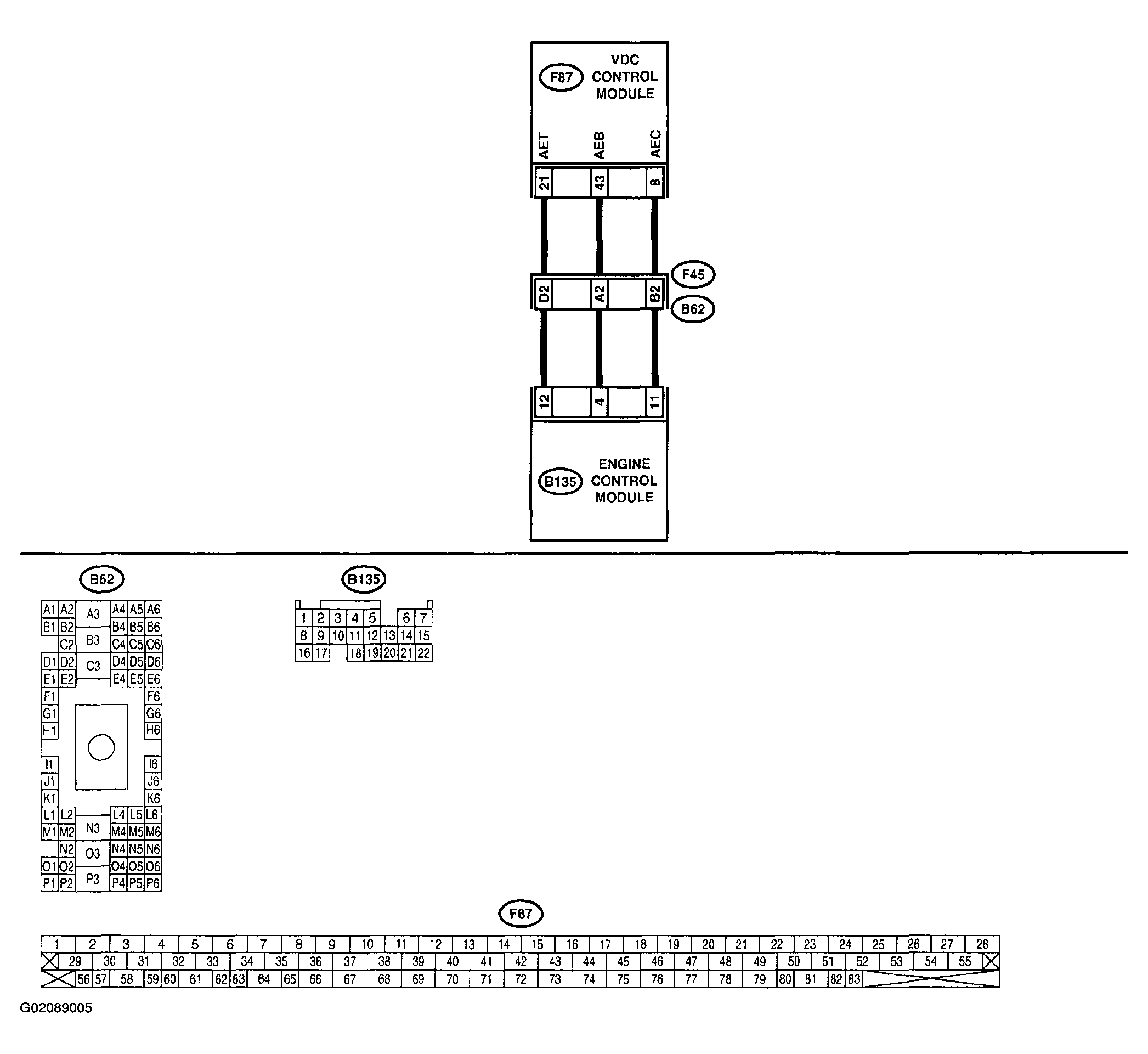

Fig 1: Wiring Diagram - Trouble Code 43 - With Select Monitor (AEB Communication Line Malfunction)
