Vehicle Dynamics Control (Diagnostics)
›
Diagnostics Chart With Select Monitor
›
Trouble Code 43 AET Communication Line Malfunction
›
Diagnostic Chart
Diagnostic Chart

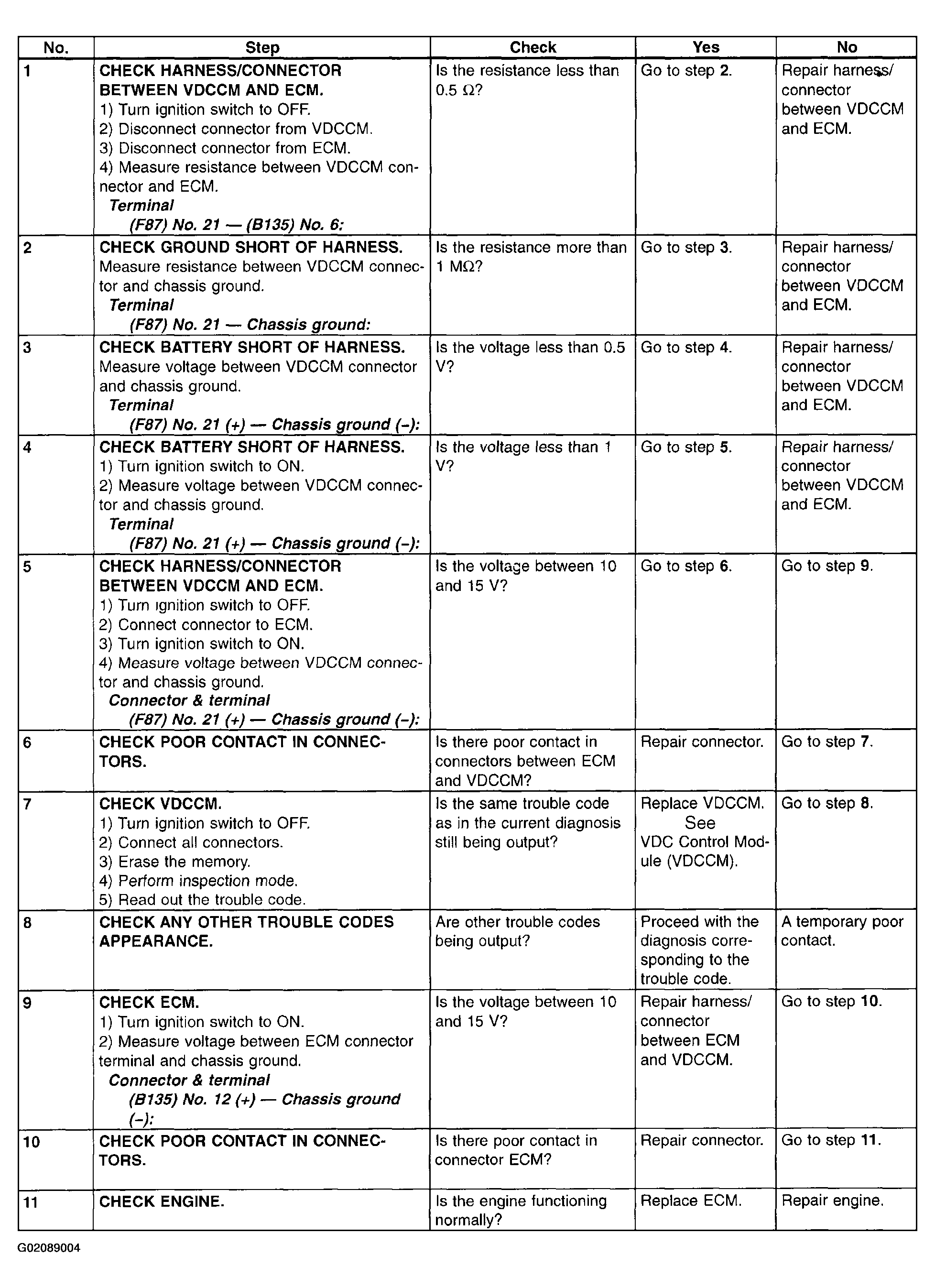

Fig 1: Diagnostic Chart - Trouble Code 43 - With Select Monitor (AET Communication Line Malfunction)
