Trouble Code 44 TCM Communication Circuit: Wiring Diagram

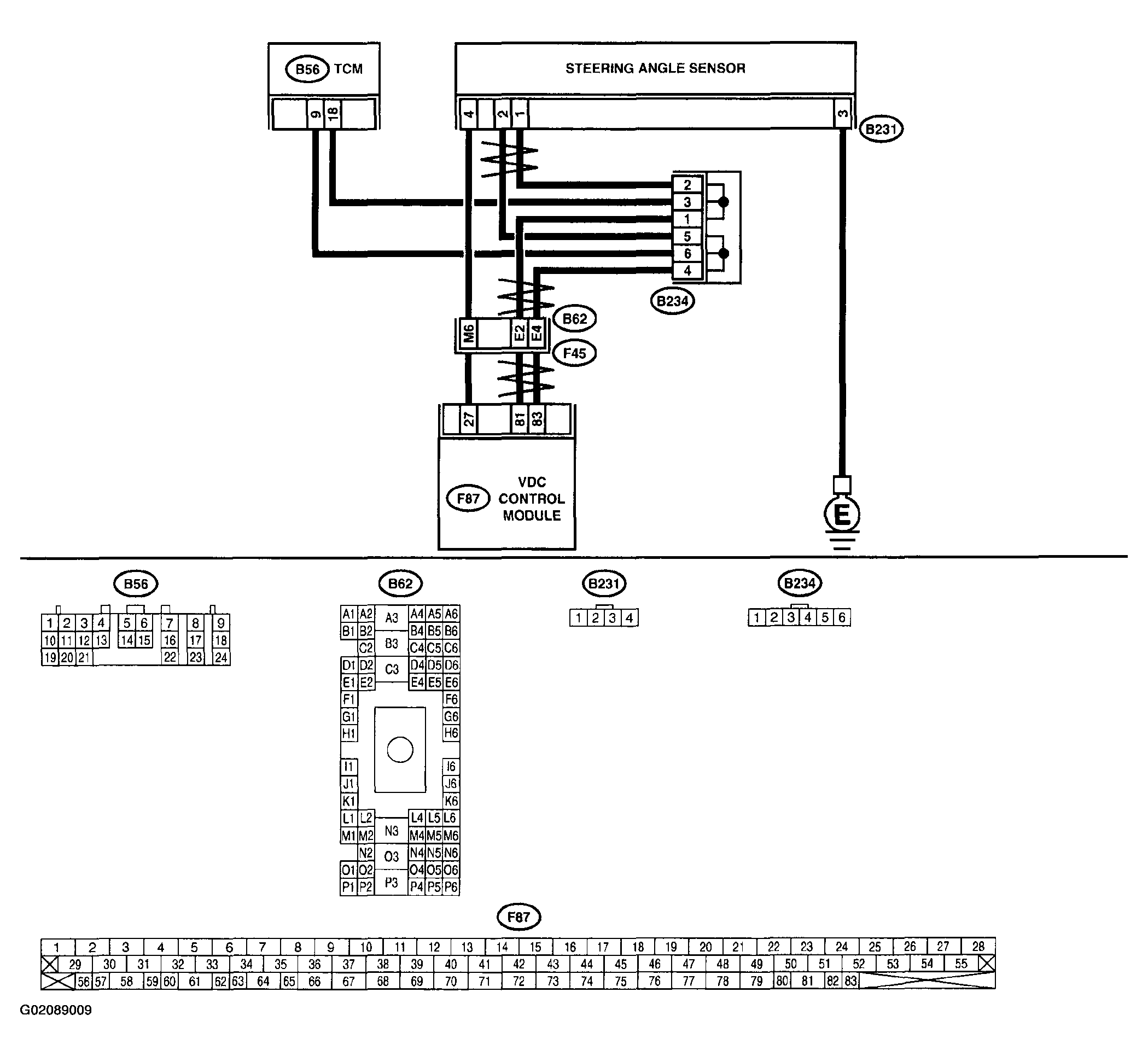

Fig 1: Wiring Diagram - Trouble Code 44 - With Select Monitor (TCM Communication Circuit)
