Trouble Code 47 Improper Can Communication
›
Wiring Diagram
Trouble Code 47 Improper Can Communication: Wiring Diagram

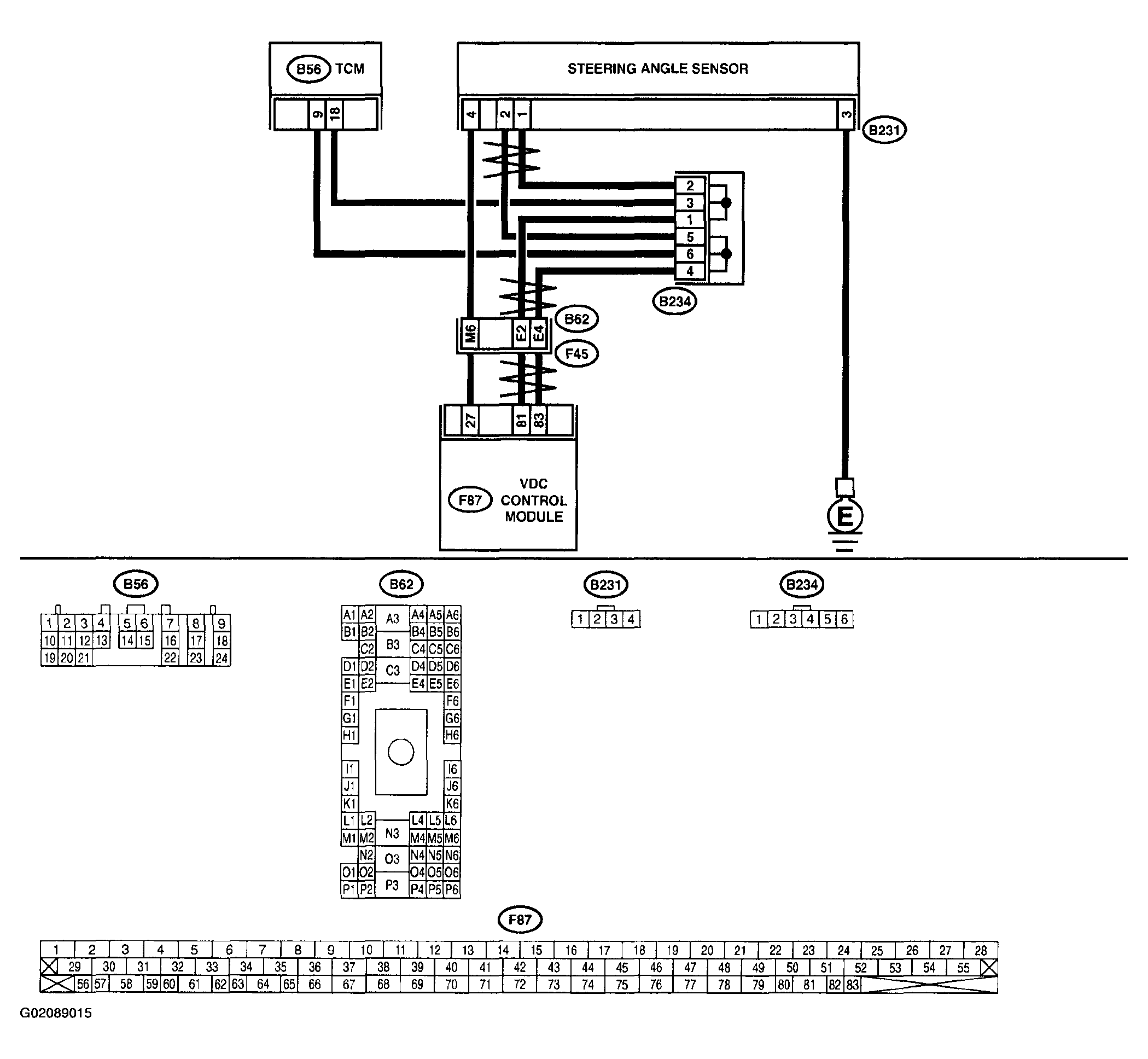

Fig 1: Wiring Diagram - Trouble Code 47 - With Select Monitor (Improper CAN Communication)
