Diagnostic Chart

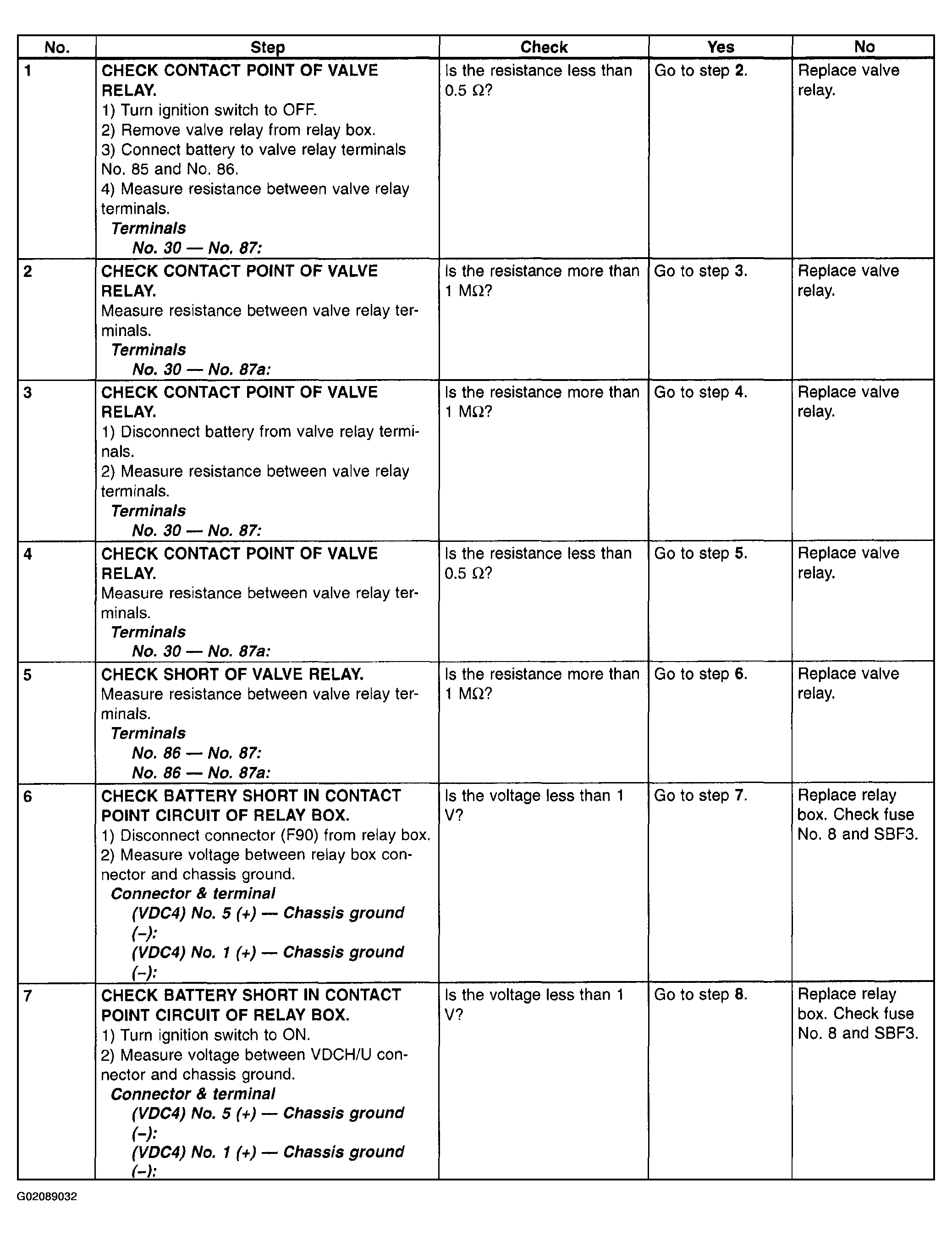

Fig 1: Diagnostic Chart - Trouble Code 51 - With Select Monitor (Valve Relay On Failure) - (1 Of 3)
G02089032

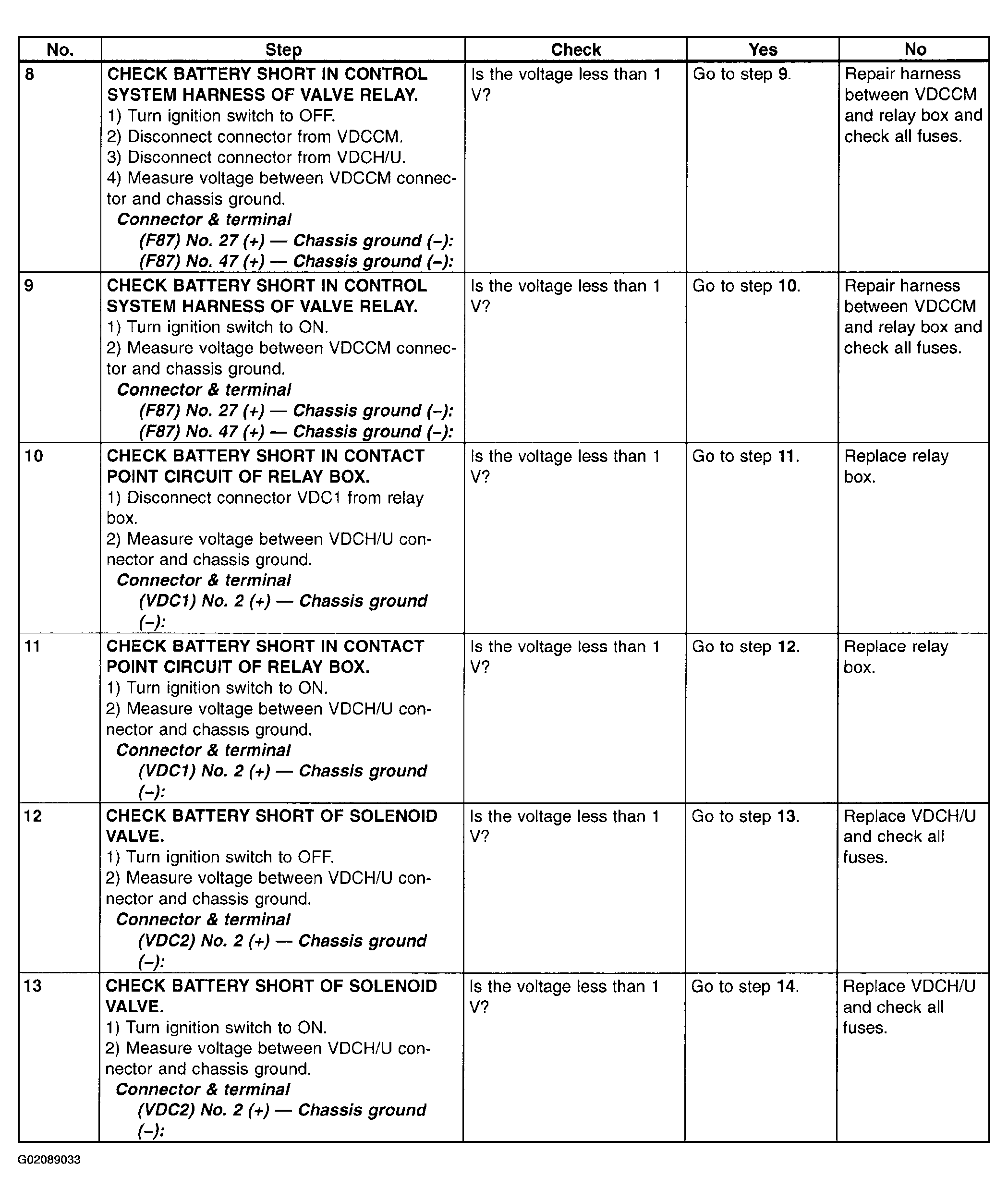

Fig 2: Diagnostic Chart - Trouble Code 51 - With Select Monitor (Valve Relay On Failure) - (2 Of 3)
G02089033

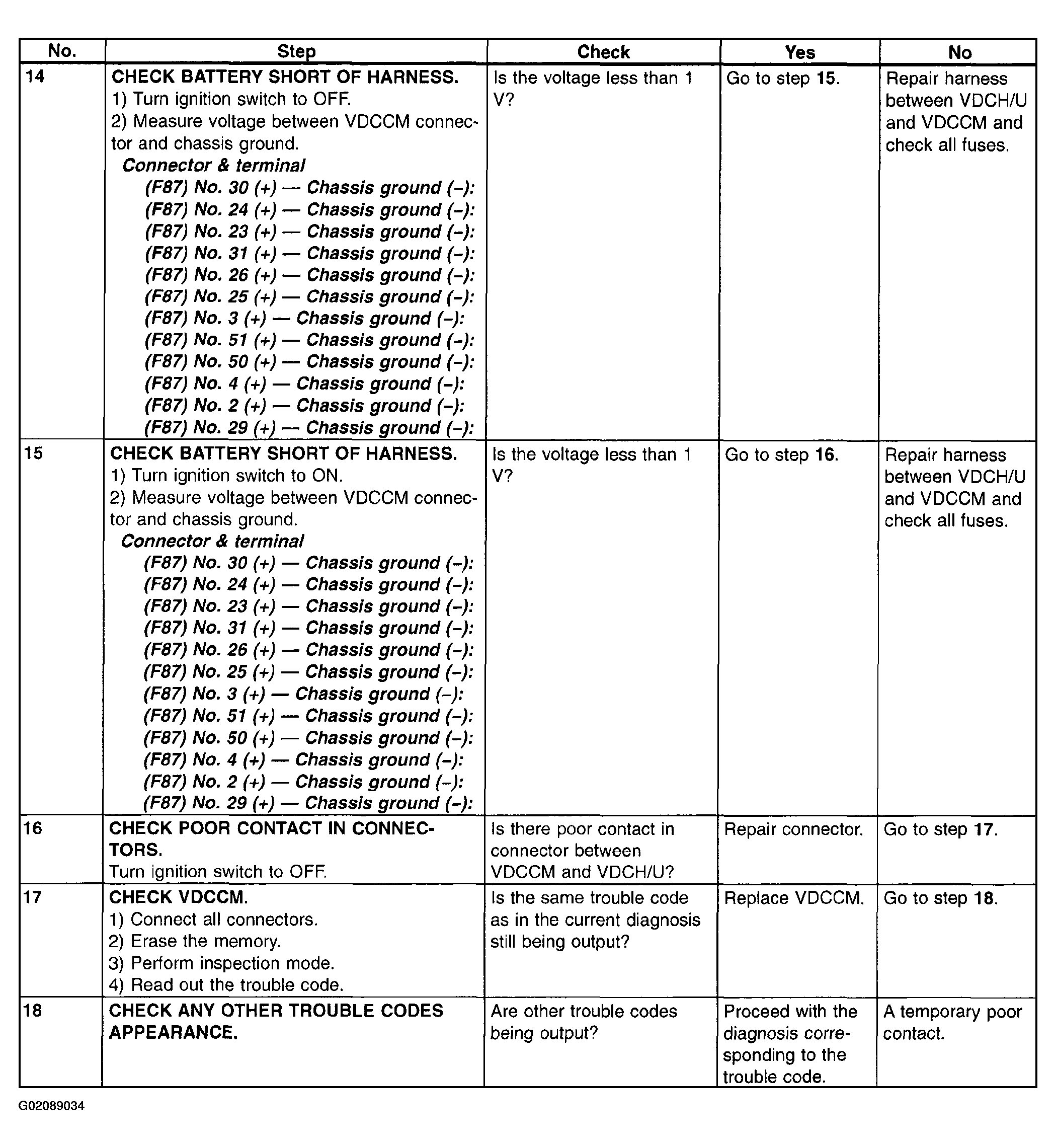

Fig 3: Diagnostic Chart - Trouble Code 51 - With Select Monitor (Valve Relay On Failure) - (3 Of 3)
G02089034
