Trouble Code 51 Valve Relay On Failure: Wiring Diagram

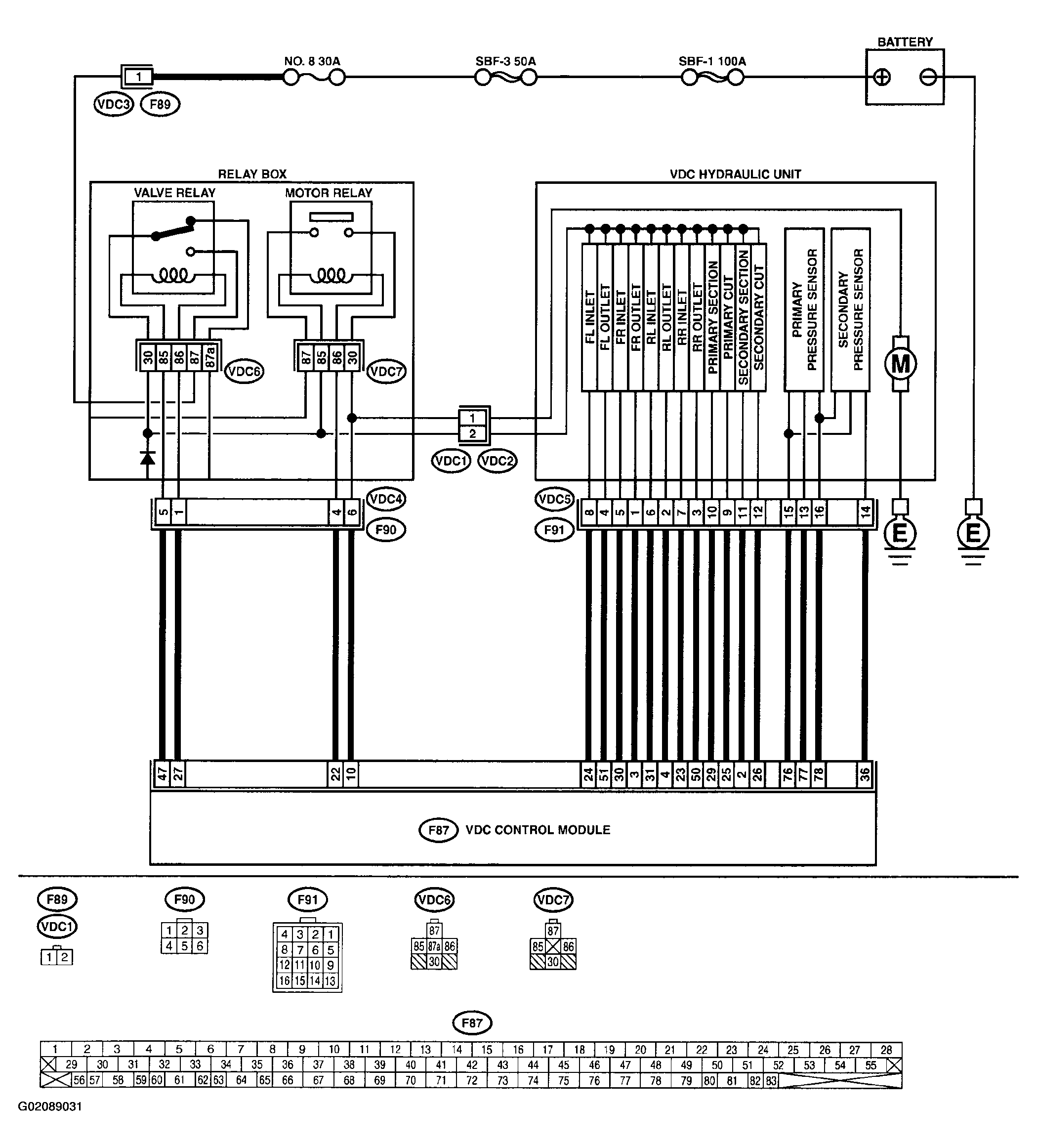

Fig 1: Wiring Diagram - Trouble Code 51 - With Select Monitor (Valve Relay On Failure)
