Trouble Code 51 Valve Relay: Wiring Diagram

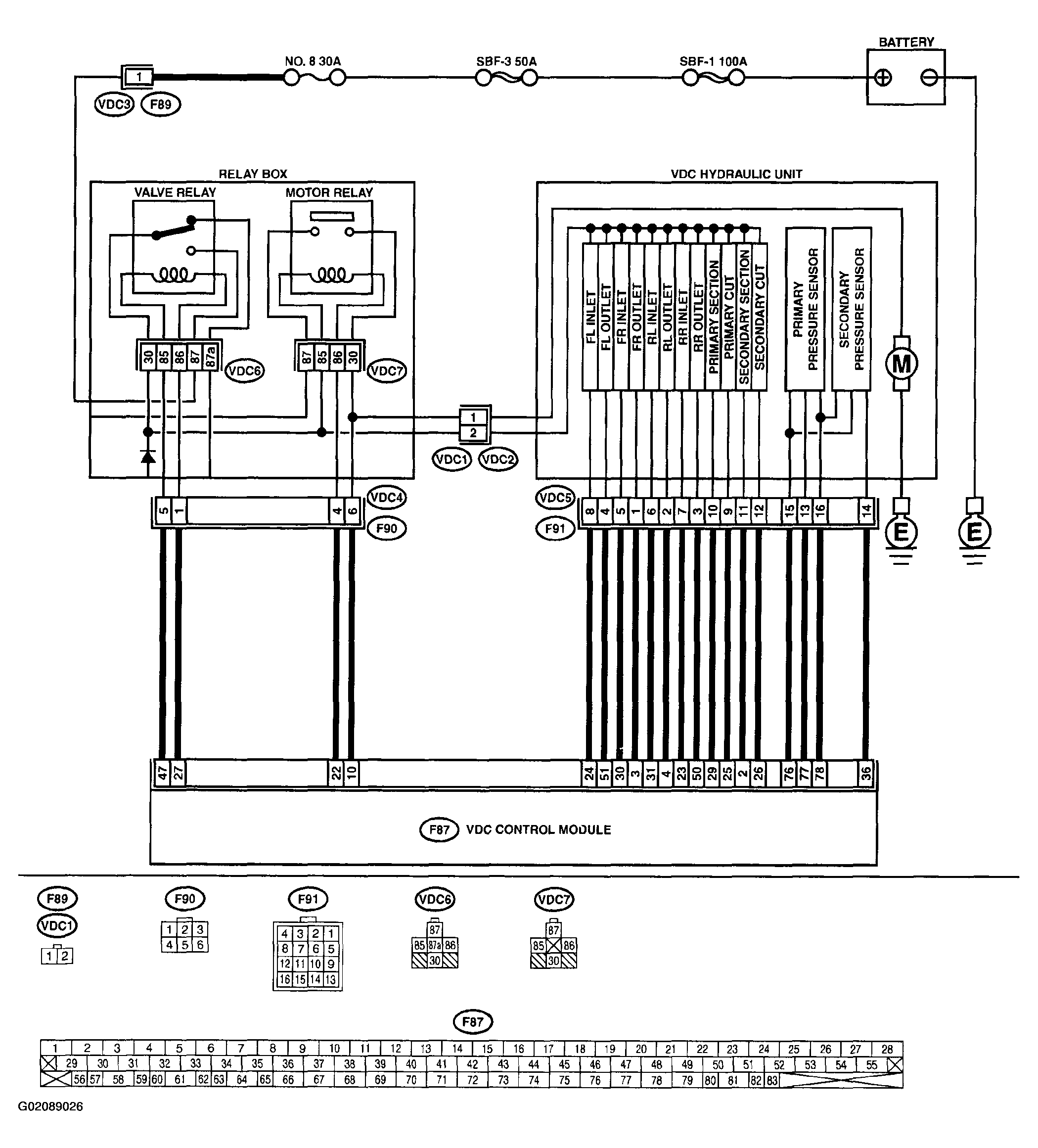

Fig 1: Wiring Diagram - Trouble Code 51 (Valve Relay)
G02089026
