Diagnostic Chart

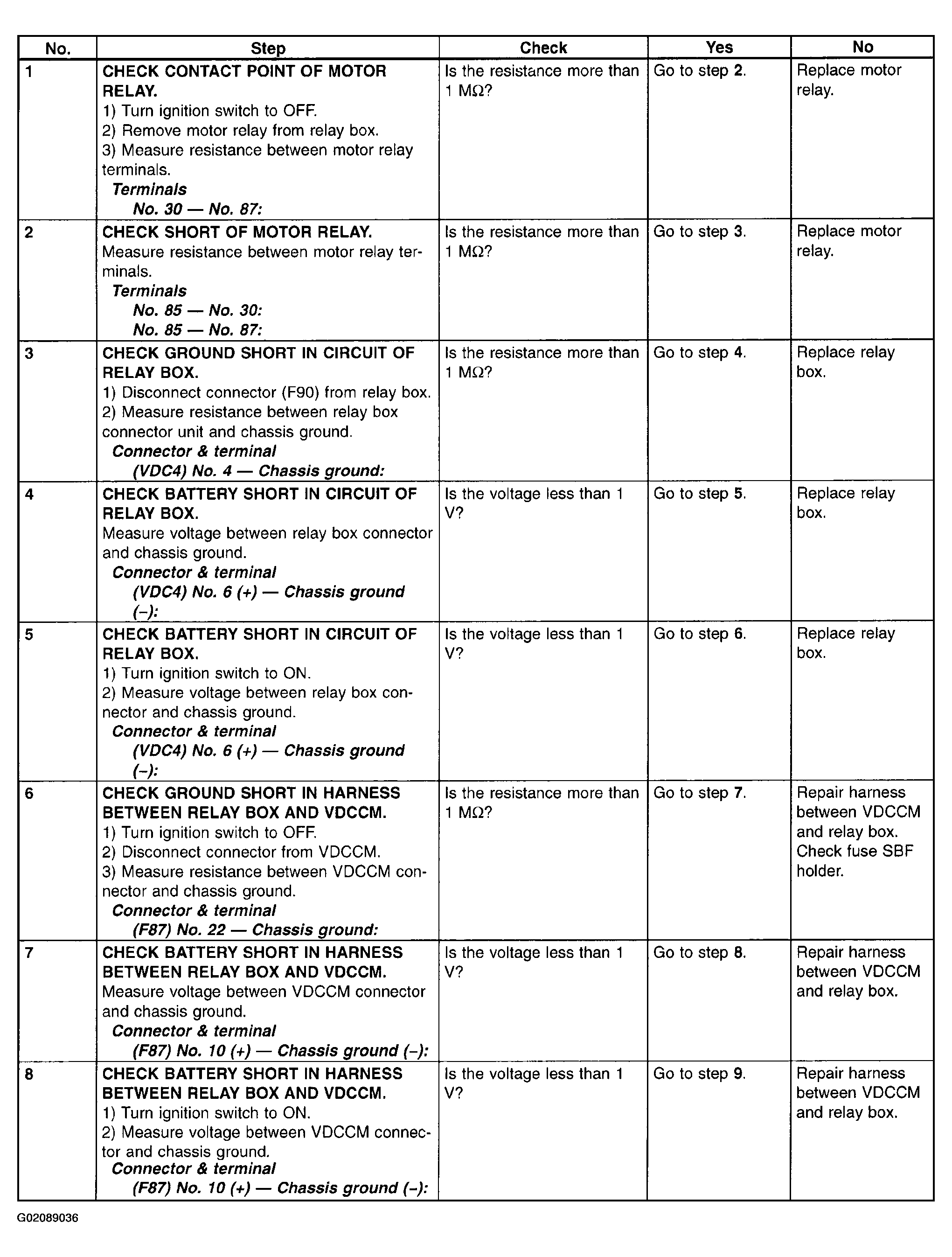

Fig 1: Diagnostic Chart - Trouble Code 52 - With Select Monitor (Motor & Motor Relay Off Failure) - (1 Of 2)
G02089036

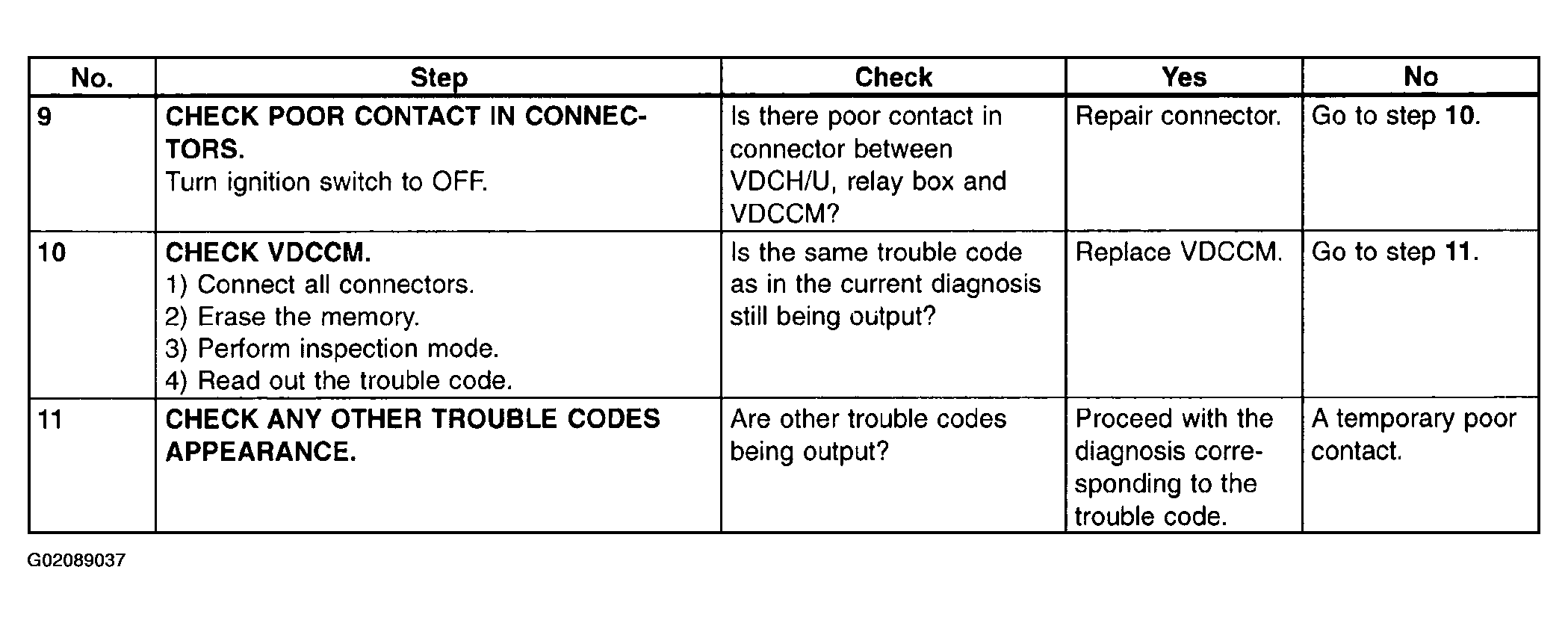

Fig 2: Diagnostic Chart - Trouble Code 52 - With Select Monitor (Motor & Motor Relay Off Failure) - (2 Of 2)
G02089037
