Trouble Code 52 Motor And Motor Relay On Failure: Wiring Diagram

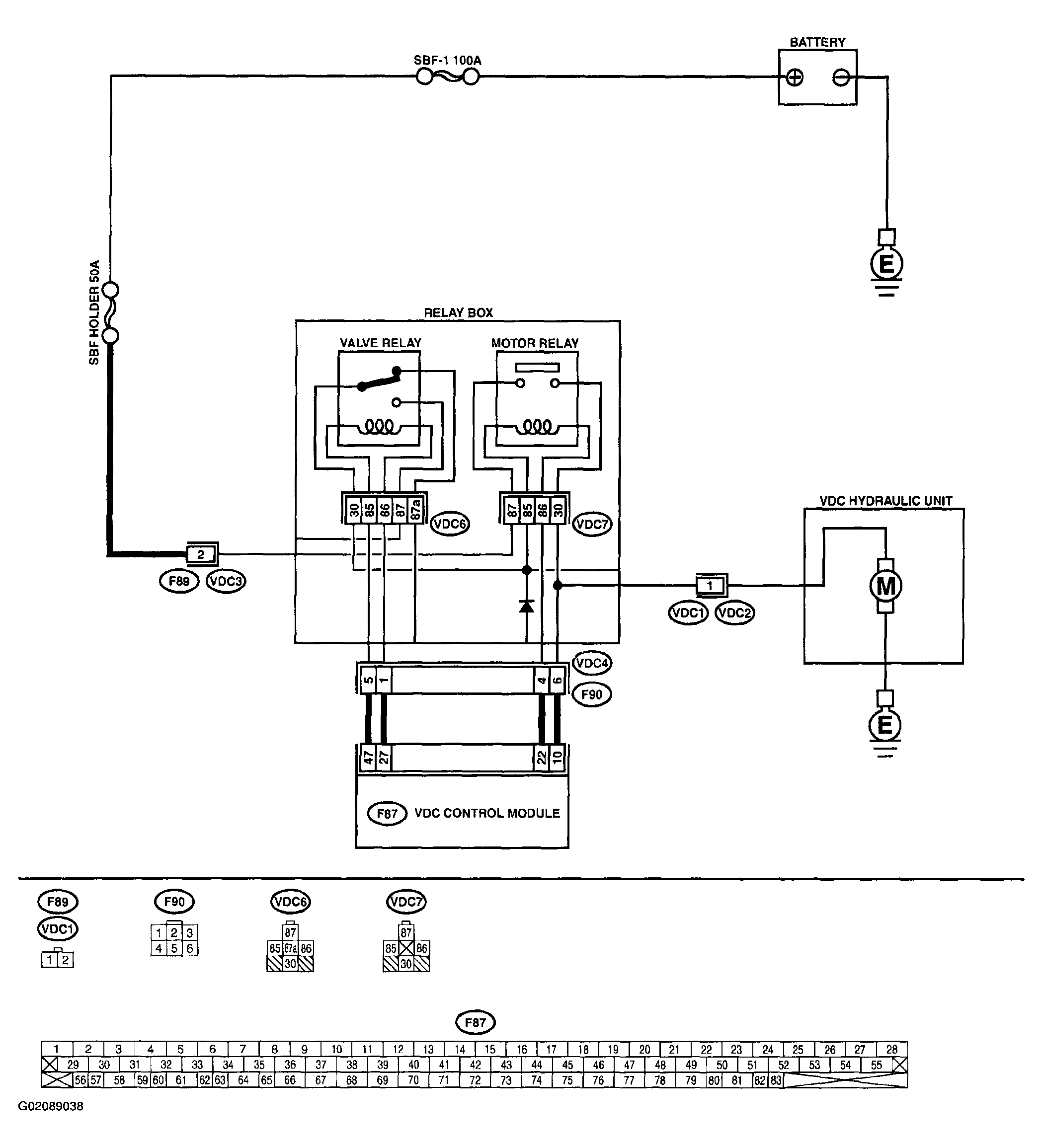

Fig 1: Wiring Diagram - Trouble Code 52 - With Select Monitor (Motor & Motor Relay On Failure)
