Trouble Code 52 Motor Malfunction: Wiring Diagram

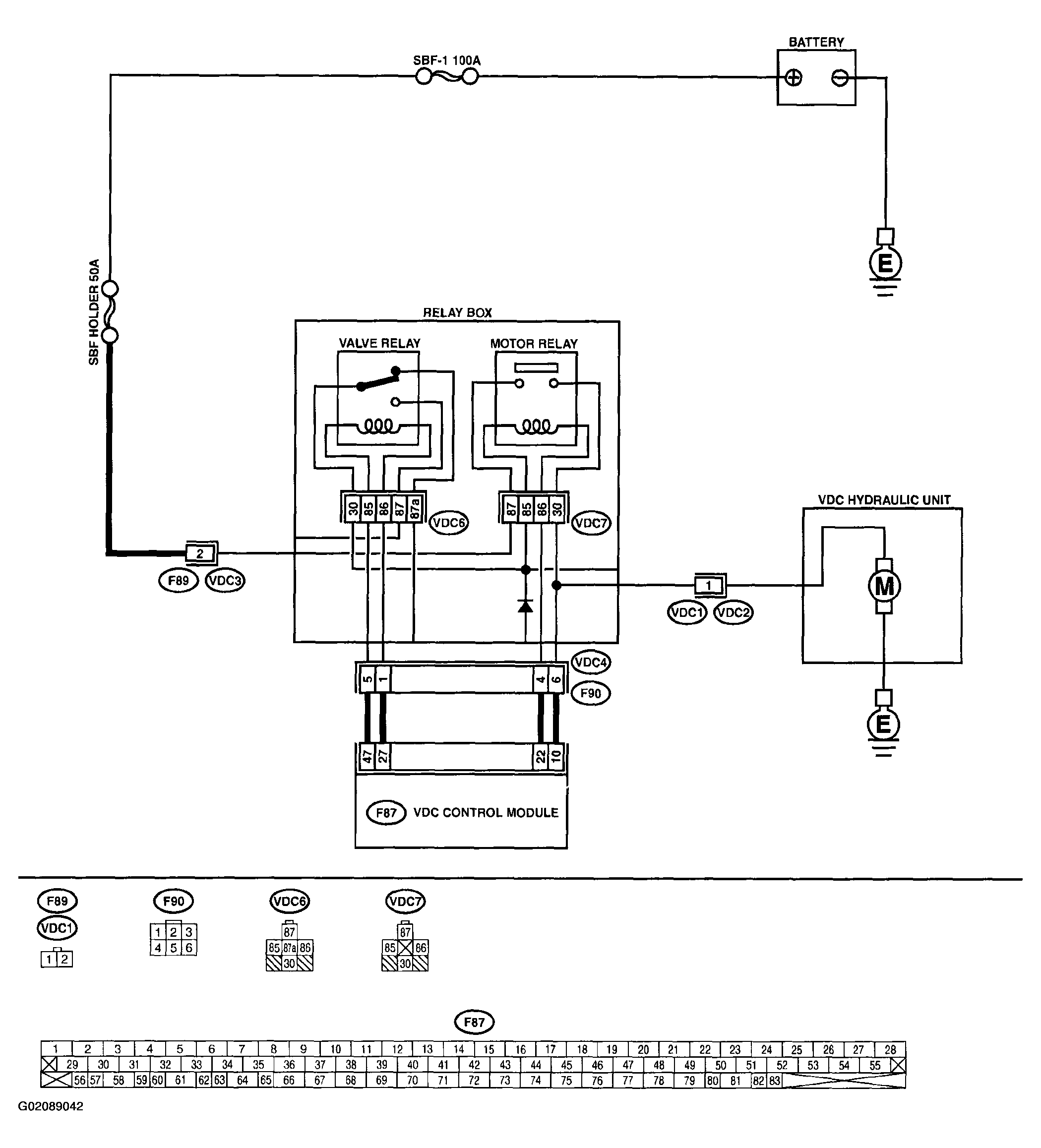

Fig 1: Wiring Diagram - Trouble Code 52 - With Select Monitor (Motor Malfunction)
G02089042
