Front Seat

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

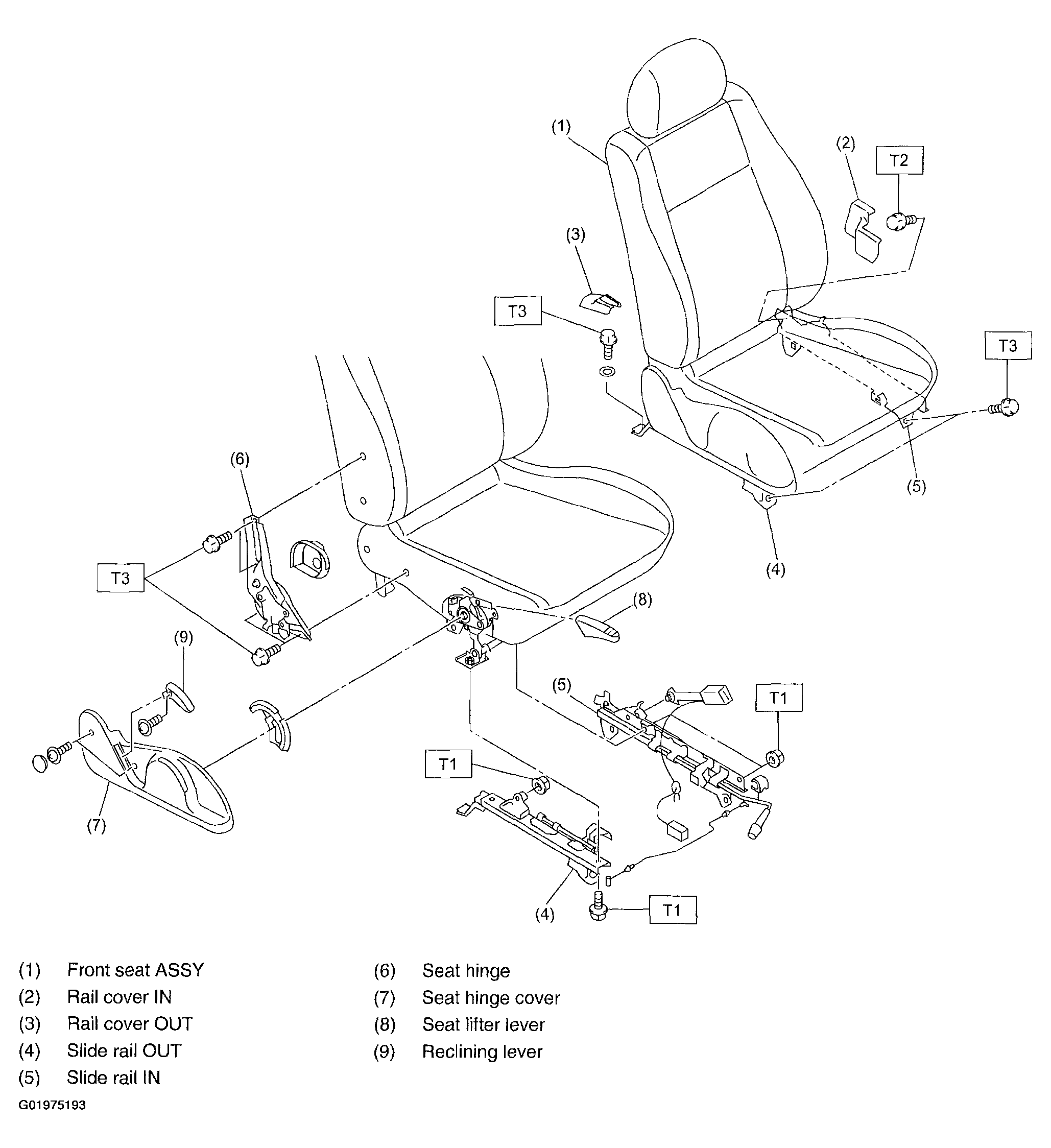

Fig 1: Identifying Front Seat Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 24.5 (2.5, 18)
T2: 30 (3.1, 22)
T3: 53 (5.4, 39)
