Engine Lubrication System Troubles: Inspection

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Before performing diagnostics, make sure that the engine oil level is correct and no oil leakage exists.

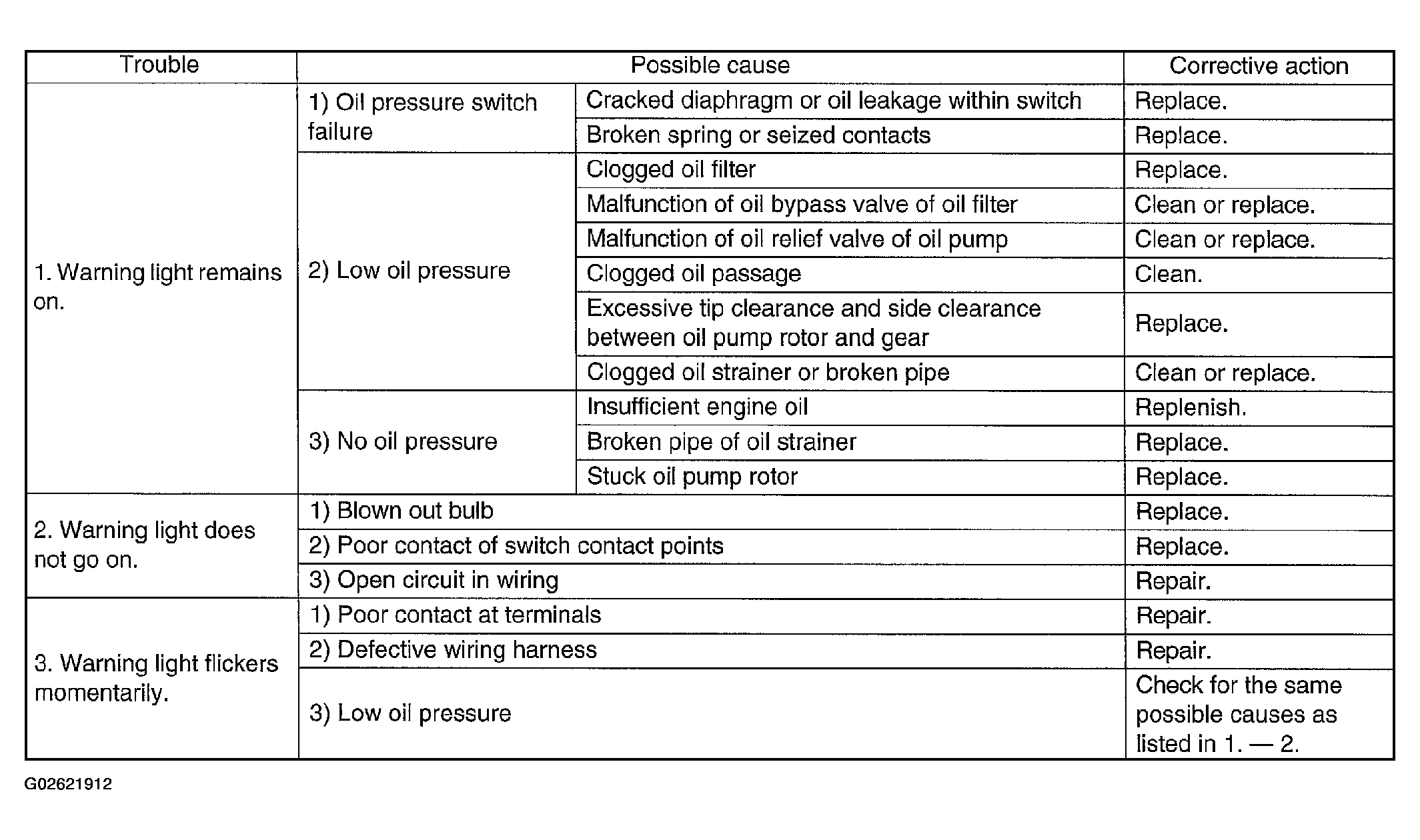

Fig 1: Engine Lubrication System Troubles Chart
G02621912Courtesy of SUBARU OF AMERICA, INC.
