Main Relay: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.

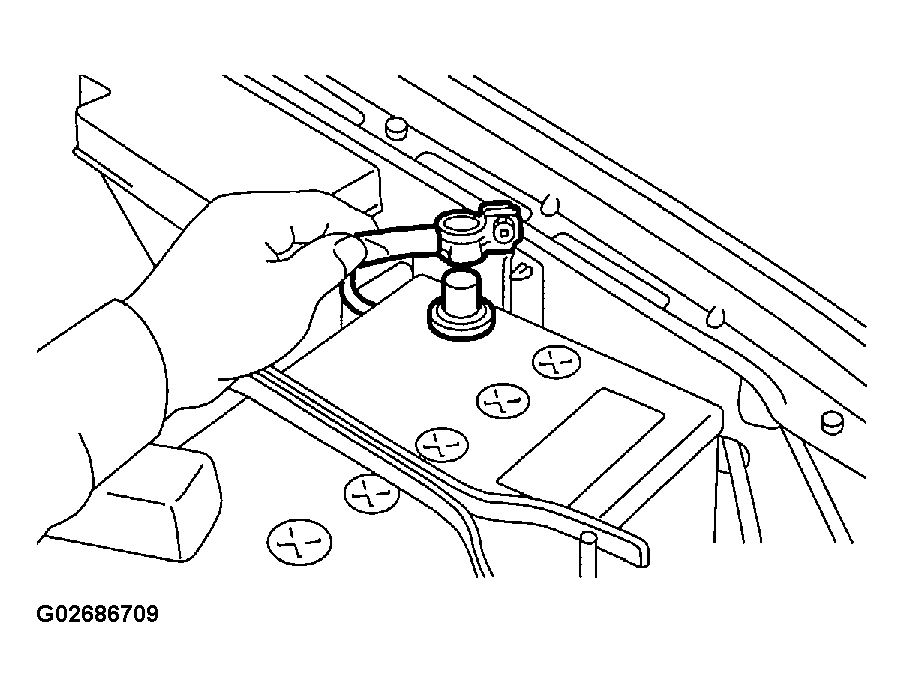

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the passenger's side front side sill cover.
Remove the bolt which holds the main relay bracket on the body.
Disconnect the connectors from the main relay.

Fig 2: Disconnecting Connectors From Main Relay
Courtesy of SUBARU OF AMERICA, INC.
