Engine Assembly: Removal

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the vehicle on lift arms.
  2. Open front hood fully and support with stay.
  3. Raise rear seat, and turn floor mat up.
  4. Release fuel pressure. Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
  5. Remove filler cap.
  6. Disconnect battery ground cable.

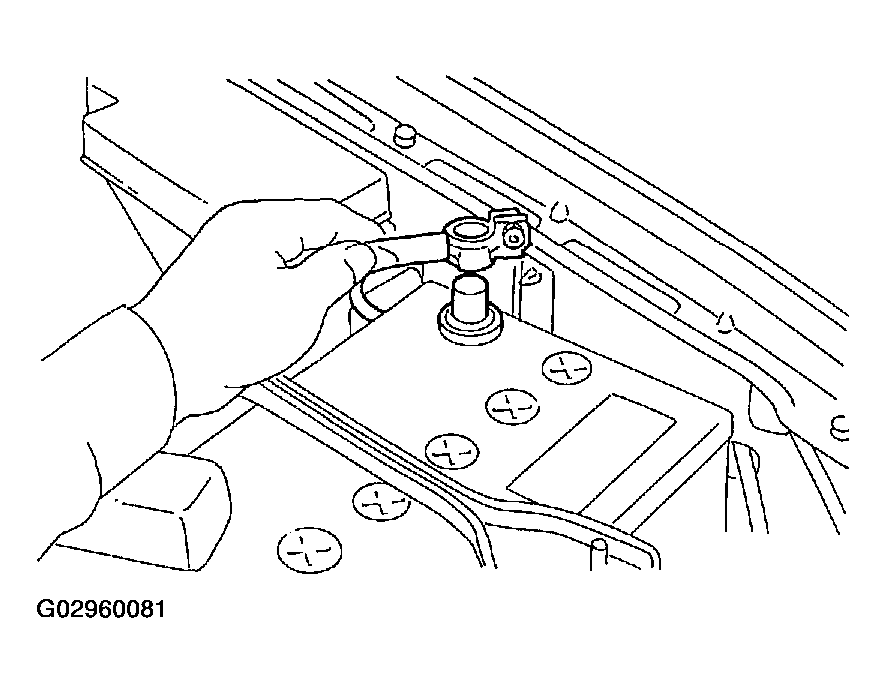

    Fig 1: Disconnecting Battery Ground Cable
    G02960081Courtesy of SUBARU OF AMERICA, INC.
  7. Remove air intake duct and air cleaner case. Refer to REMOVAL , Air Intake Duct and REMOVAL , Air Cleaner Case.
  8. Remove under cover.
  9. Remove radiator from vehicle. Refer to REMOVAL , Radiator.
  10. Remove ATF cooler pipe from body. Refer to REMOVAL , ATF Cooler Pipe and Hose.
  11. Collect refrigerant, and remove pressure hoses. (With A/O)
    1. Place and connect the attachment hose to the refrigerant recycle system.
    2. Collect refrigerant from A/C system.
    3. Disconnect A/C pressure hoses from A/C compressor.

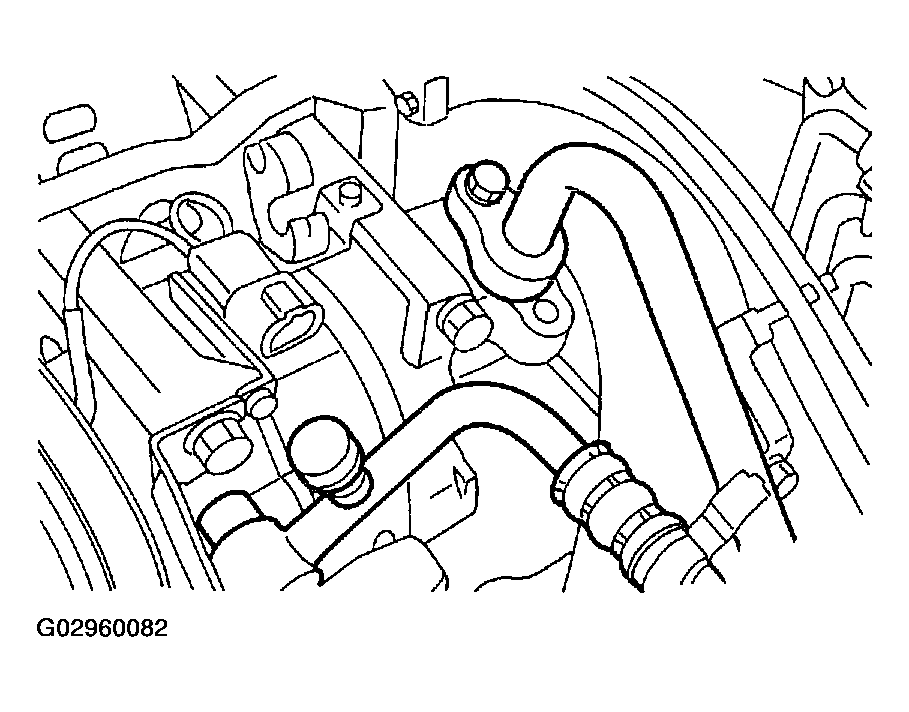

      Fig 2: Disconnecting A/C Pressure Hoses From A/C Compressor
      G02960082Courtesy of SUBARU OF AMERICA, INC.
  12. Remove air cleaner case stay.
    • MT model

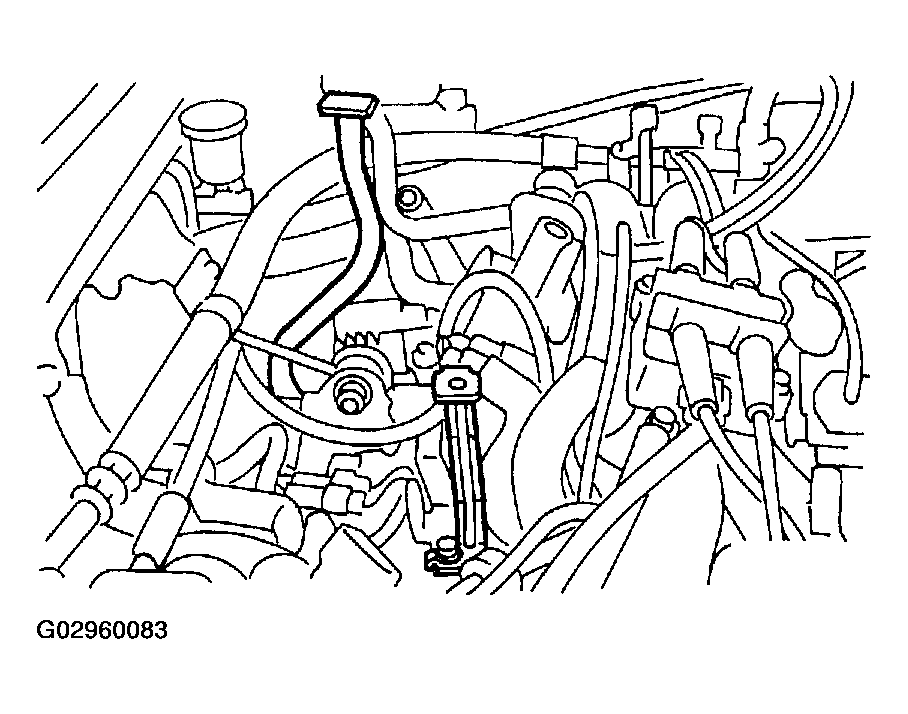

      Fig 3: Removing Air Cleaner Case Stay (MT Model)
      G02960083Courtesy of SUBARU OF AMERICA, INC.
    • AT model

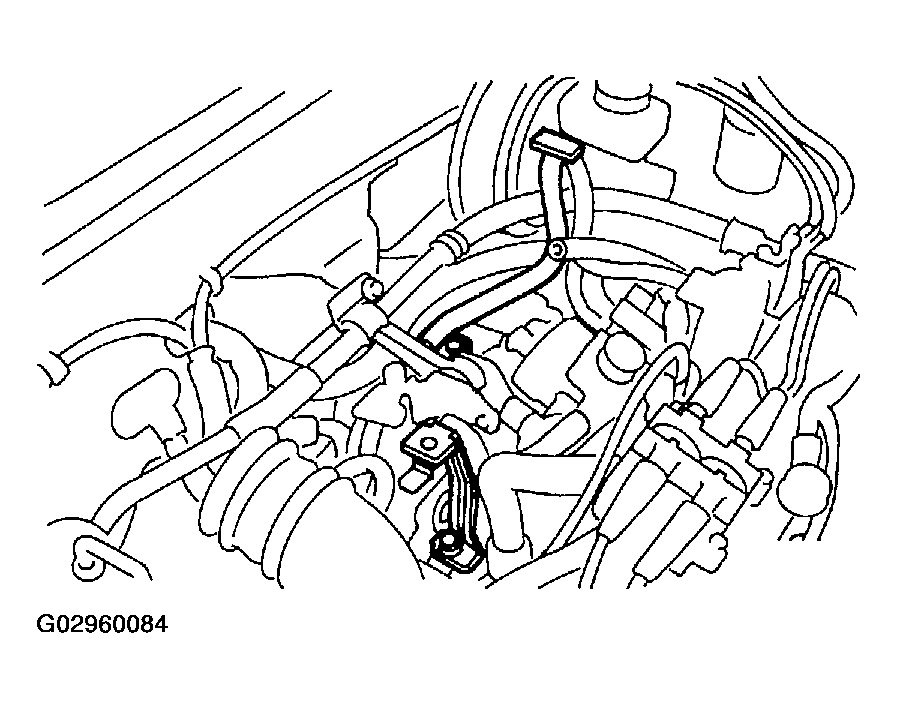

      Fig 4: Removing Air Cleaner Case Stay (AT Model)
      G02960084Courtesy of SUBARU OF AMERICA, INC.
  13. Disconnect the following connectors and cables.
    1. Engine ground terminal

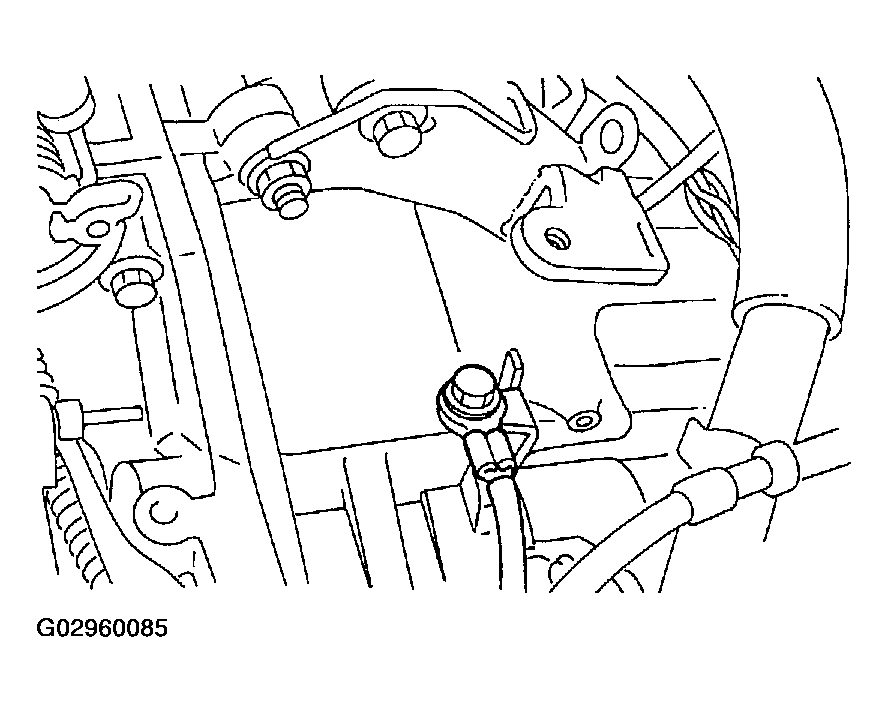

      Fig 5: Disconnecting Engine Ground Terminal
      G02960085Courtesy of SUBARU OF AMERICA, INC.
    2. Engine harness connectors

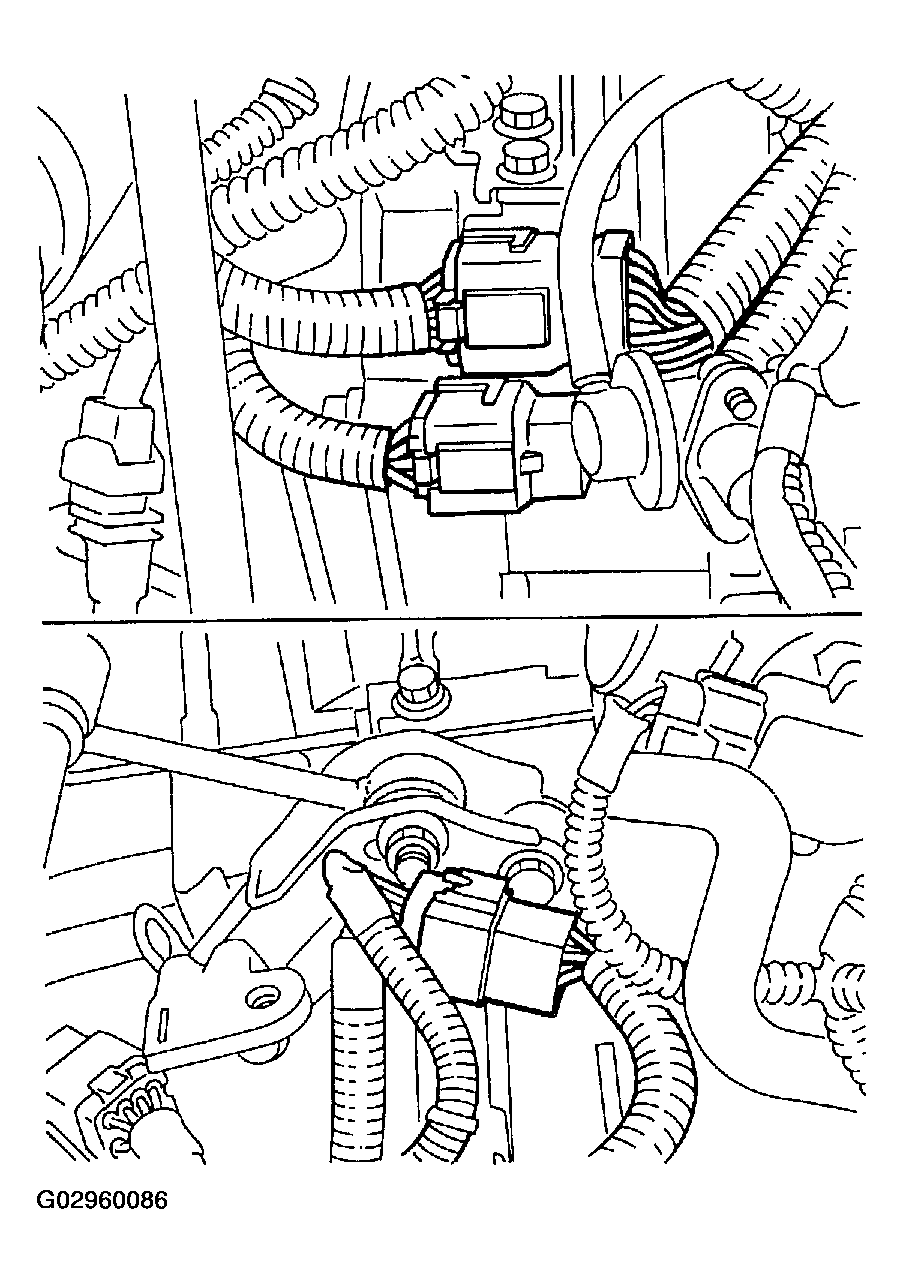

      Fig 6: Disconnecting Engine Harness Connectors
      G02960086Courtesy of SUBARU OF AMERICA, INC.
    3. Alternator connector, terminal and A/C compressor connector

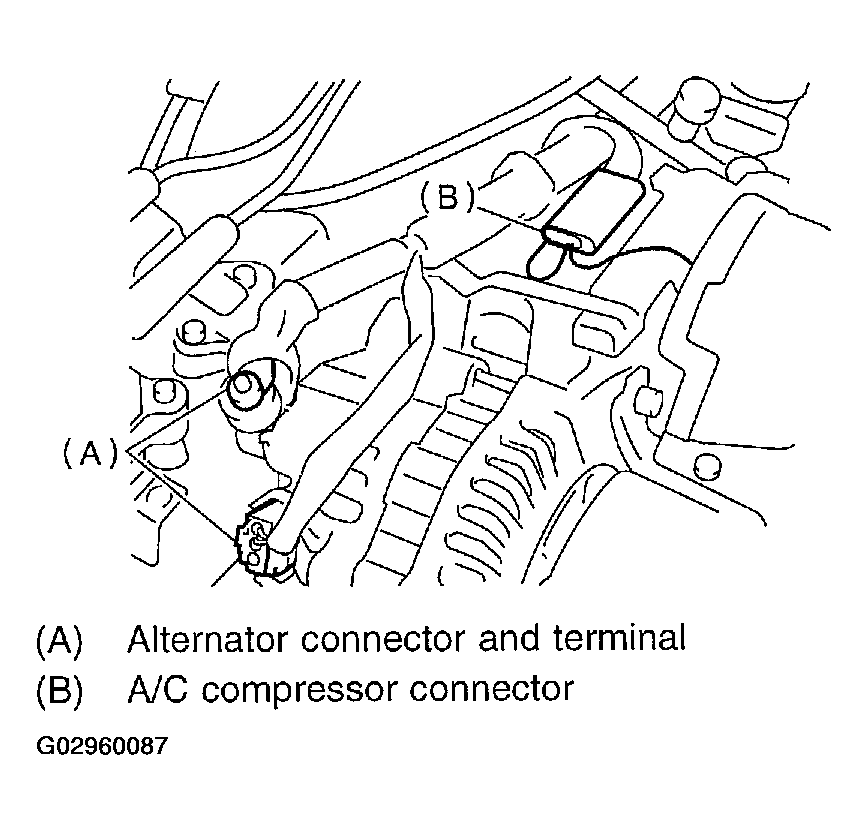

      Fig 7: Disconnecting Alternator Connector, Terminal & A/C Compressor Connector
      G02960087Courtesy of SUBARU OF AMERICA, INC.
    4. Accelerator cable and cruise control cable

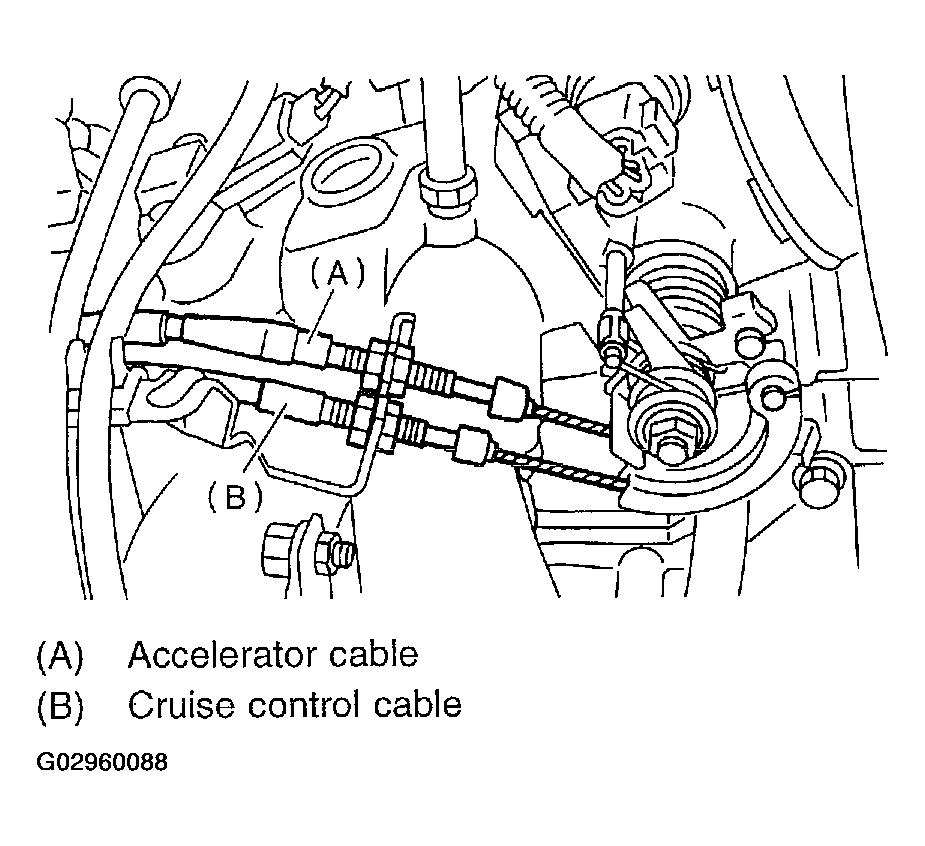

      Fig 8: Disconnecting Accelerator Cable & Cruise Control Cable
      G02960088Courtesy of SUBARU OF AMERICA, INC.
    5. Pressure switch

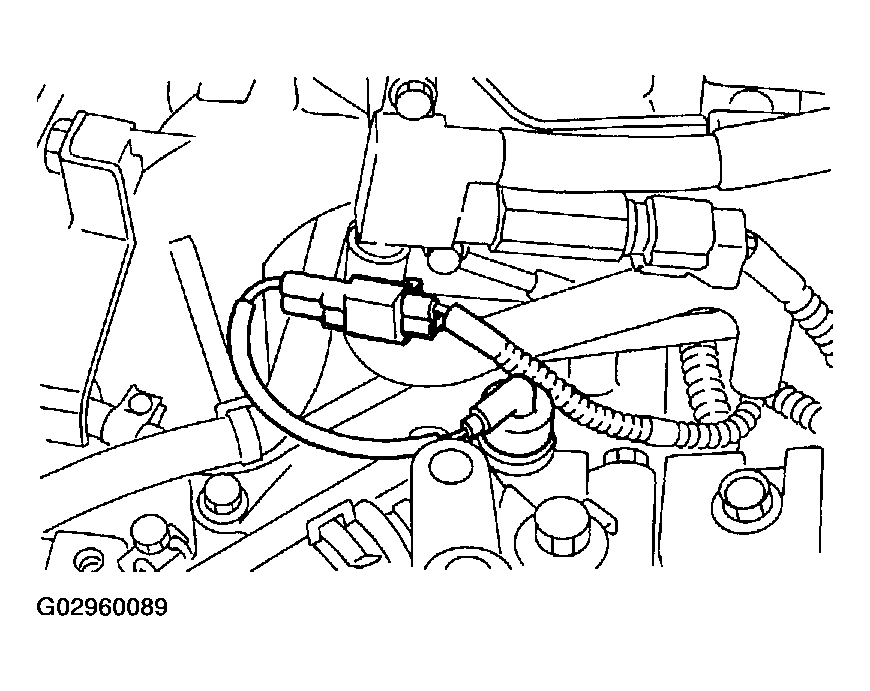

      Fig 9: Disconnecting Pressure Switch
      G02960089Courtesy of SUBARU OF AMERICA, INC.
  14. Disconnect the following hoses.
    1. Brake booster vacuum hose

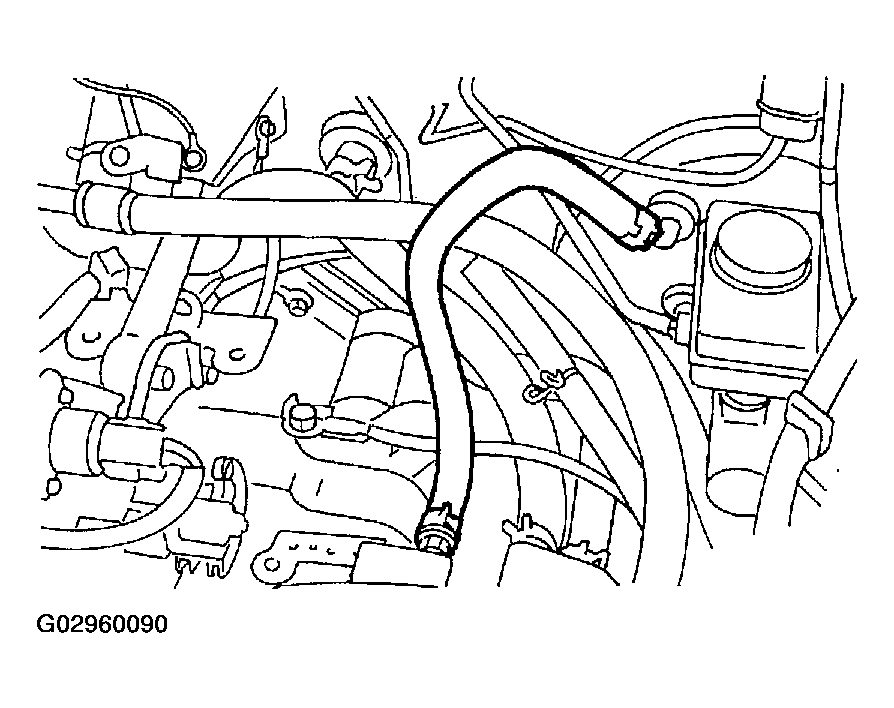

      Fig 10: Disconnecting Brake Booster Vacuum Hose
      G02960090Courtesy of SUBARU OF AMERICA, INC.
    2. Heater inlet outlet hose

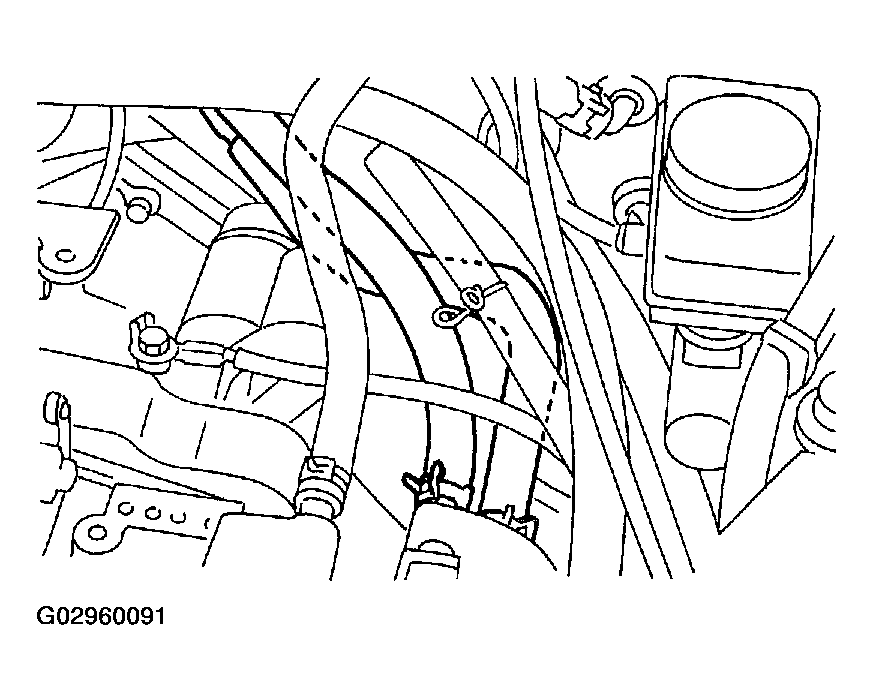

      Fig 11: Disconnecting Heater Inlet Outlet Hose
      G02960091Courtesy of SUBARU OF AMERICA, INC.
  15. Remove power steering pump from bracket.
    1. Remove resonator chamber.

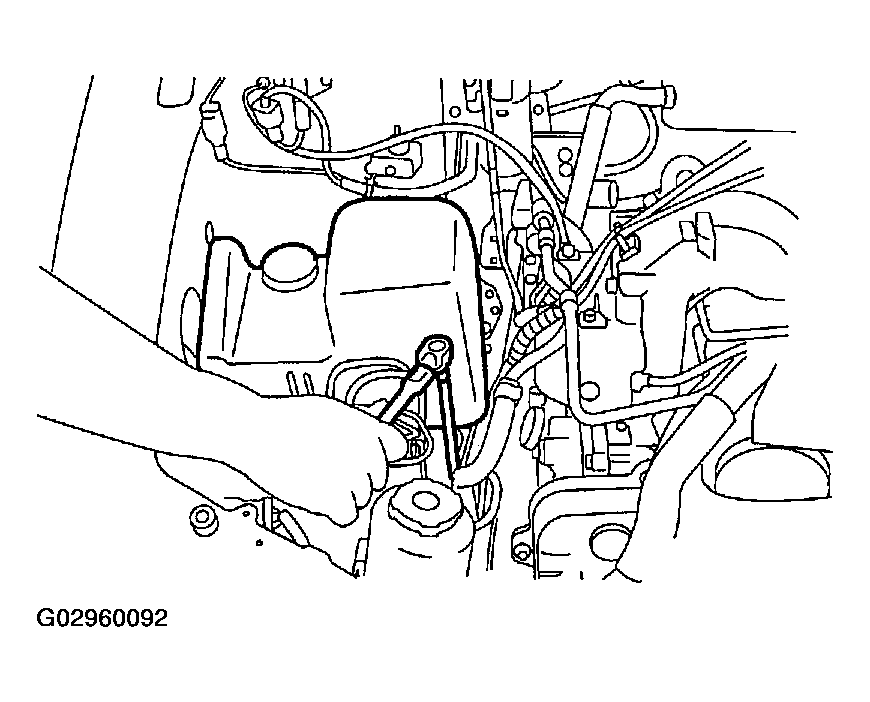

      Fig 12: Removing Resonator Chamber
      G02960092Courtesy of SUBARU OF AMERICA, INC.
    2. Loosen lock bolt and slider bolt, and remove front side V-belt.

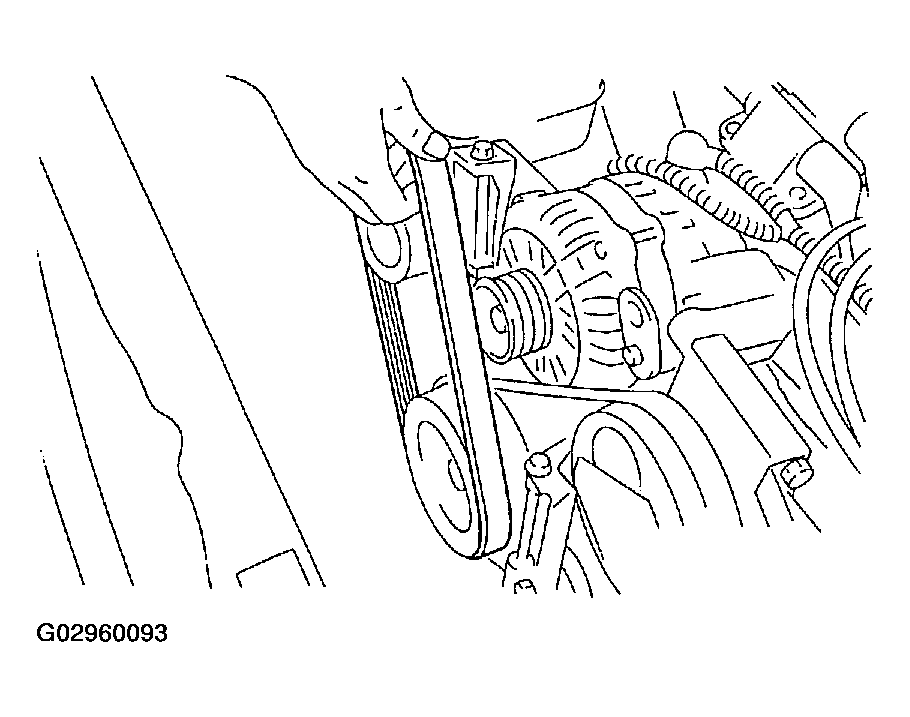

      Fig 13: Removing Front Side V-Belt
      G02960093Courtesy of SUBARU OF AMERICA, INC.
    3. Remove pipe with bracket.

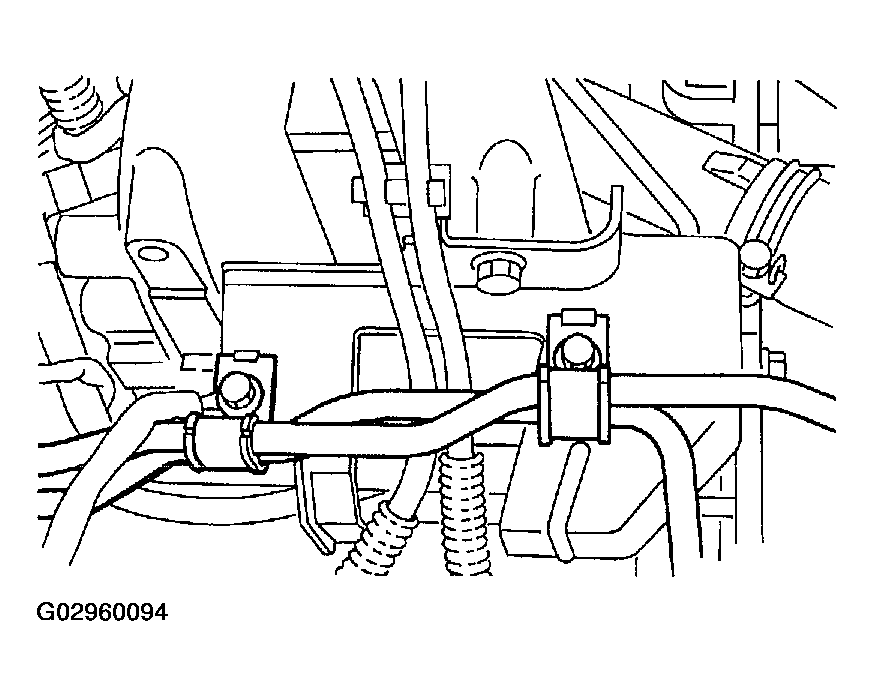

      Fig 14: Removing Pipe With Bracket
      G02960094Courtesy of SUBARU OF AMERICA, INC.
    4. Remove bolts which install power steering pump bracket.

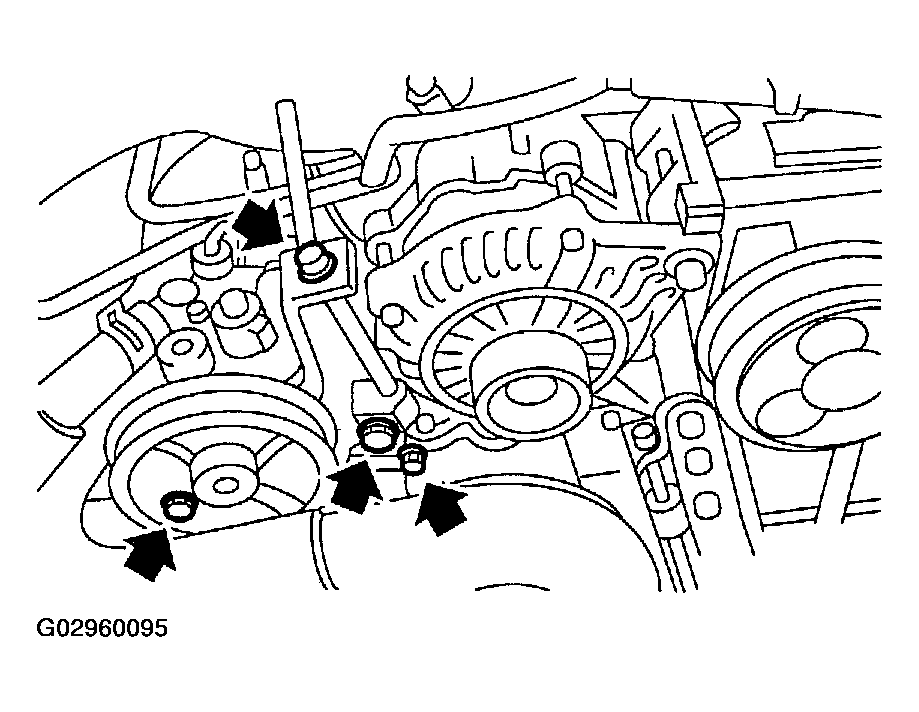

      Fig 15: Removing Power Steering Pump Bracket Bolts
      G02960095Courtesy of SUBARU OF AMERICA, INC.
    5. Remove power steering tank from the bracket by pulling it upward.

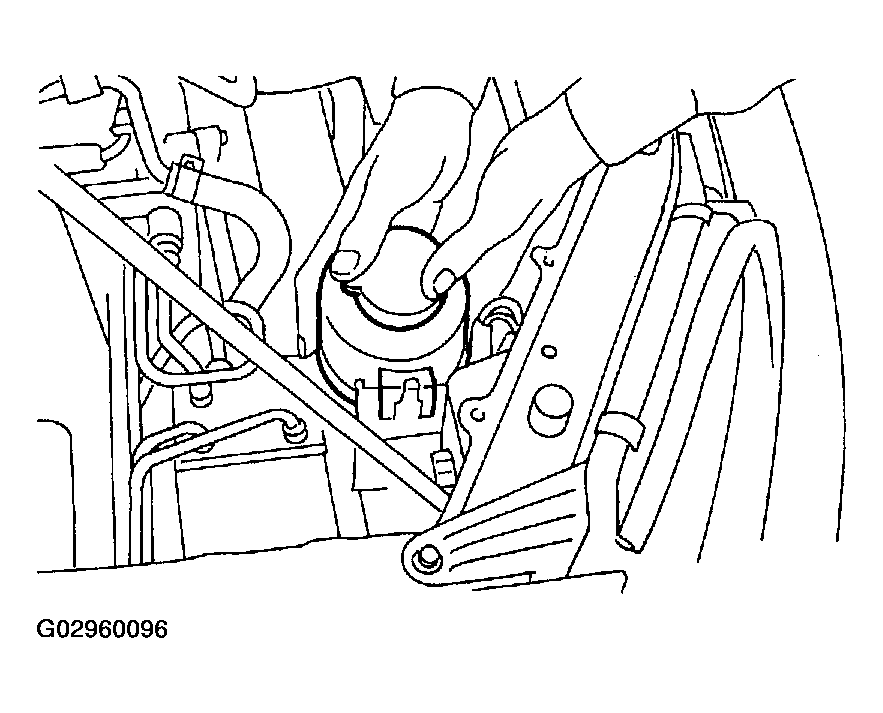

      Fig 16: Removing Power Steering Tank From Bracket
      G02960096Courtesy of SUBARU OF AMERICA, INC.
    6. Place power steering pump on the right side wheel apron.

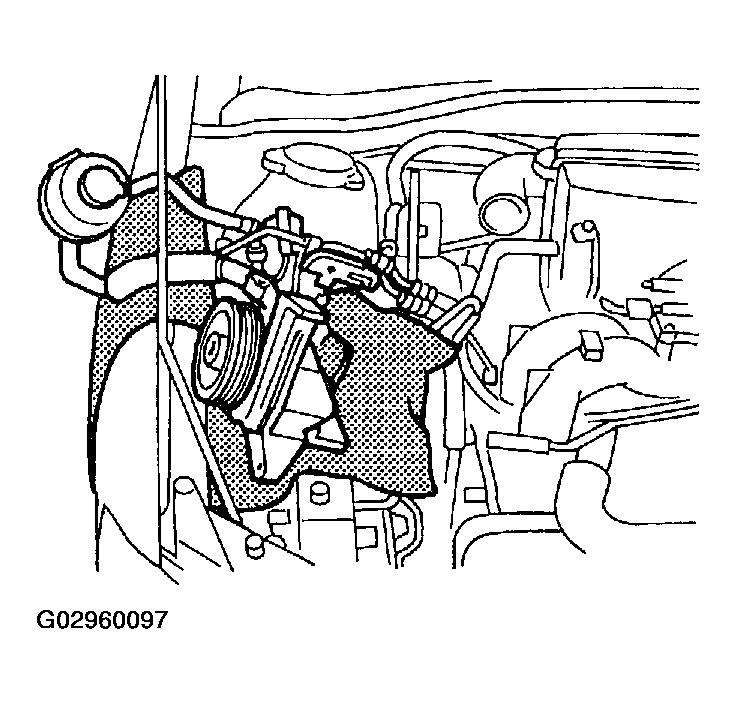

      Fig 17: Placing Power Steering Pump On Right Side Wheel Apron
      G02960097Courtesy of SUBARU OF AMERICA, INC.
  16. Remove front and center exhaust pipe. Refer to REMOVAL , Front Exhaust pipe and REMOVAL , Center Exhaust Pipe.
  17. Remove nuts which hold lower side of transmission to engine.
    Fig 18: Removing Nuts Holding Lower Side Of Transmission To Engine
    G02960098Courtesy of SUBARU OF AMERICA, INC.
  18. Remove nuts which install front cushion rubber onto front crossmember.

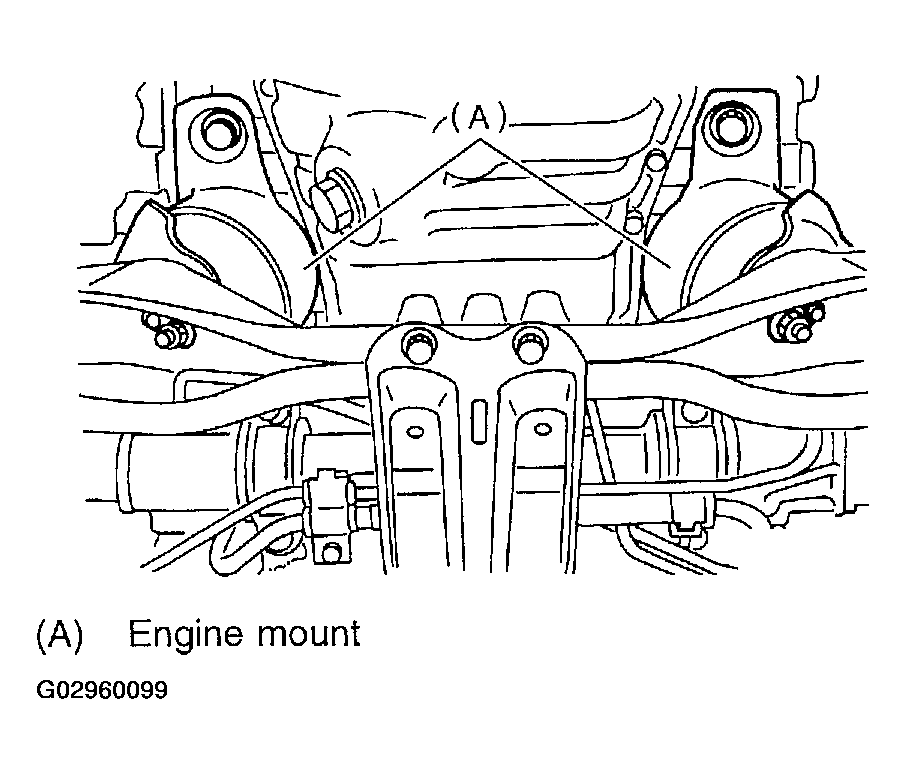

    Fig 19: Removing Front Cushion Rubber Nuts Onto Front Crossmember
    G02960099Courtesy of SUBARU OF AMERICA, INC.
  19. Separate torque converter clutch from drive plate. (AT model)
    1. Lower the vehicle.
    2. Remove service hole plug.
    3. Remove bolts which hold torque converter clutch to drive plate.
    4. Remove other bolts while rotating the crankshaft pulley using ST.

    ST 499977100 CRANK PULLEY WRENCH

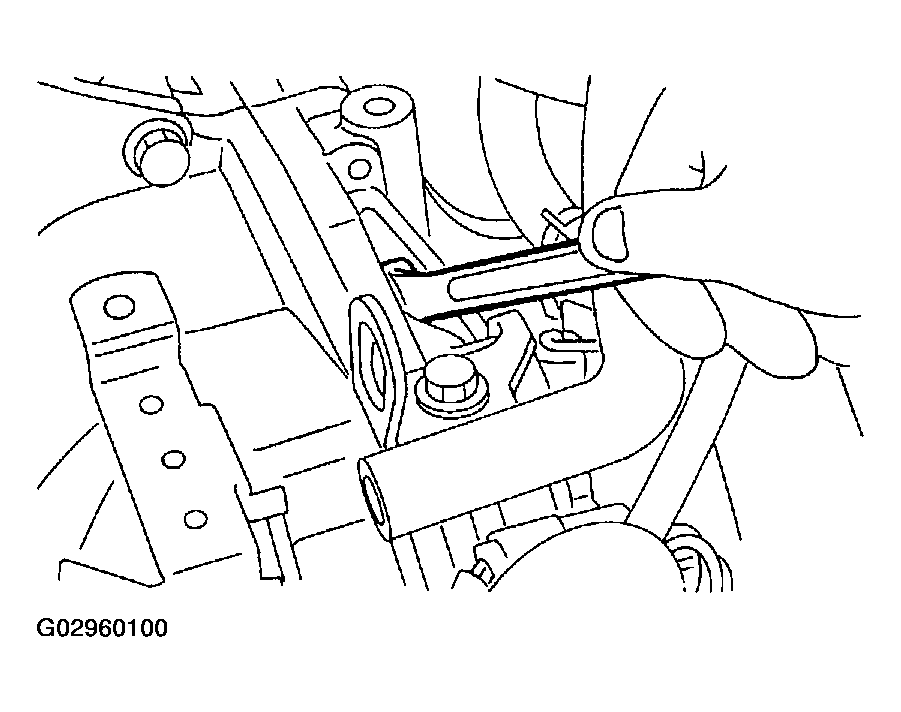

    Fig 20: Separating Torque Converter Clutch From Drive Plate
    G02960100Courtesy of SUBARU OF AMERICA, INC.
  20. Remove pitching stopper.

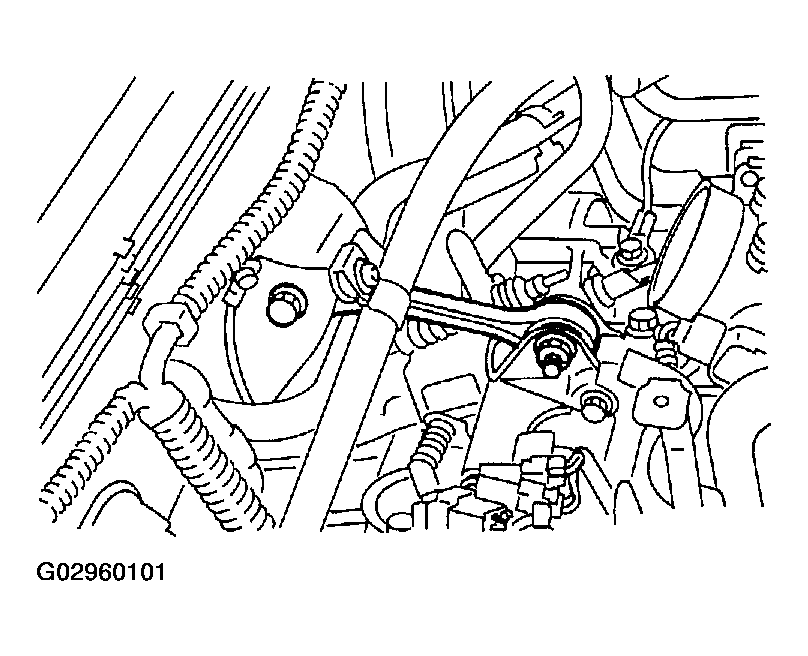

    Fig 21: Removing Pitching Stopper
    G02960101Courtesy of SUBARU OF AMERICA, INC.
  21. Disconnect fuel delivery hose, return hose and evaporation hose.
    CAUTION:
    • Disconnect hose with its end wrapped with cloth to prevent fuel from splashing.
    • Catch fuel from hose into container.

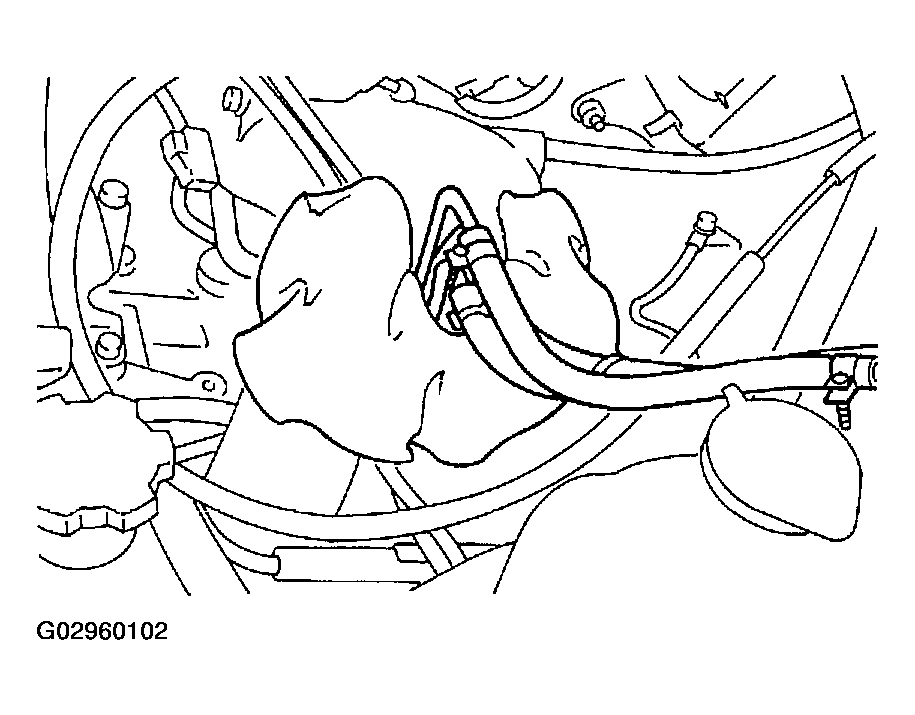

    Fig 22: Disconnecting Fuel Delivery Hose, Return Hose & Evaporation Hose
    G02960102Courtesy of SUBARU OF AMERICA, INC.
  22. Support engine with a lifting device and wire ropes.

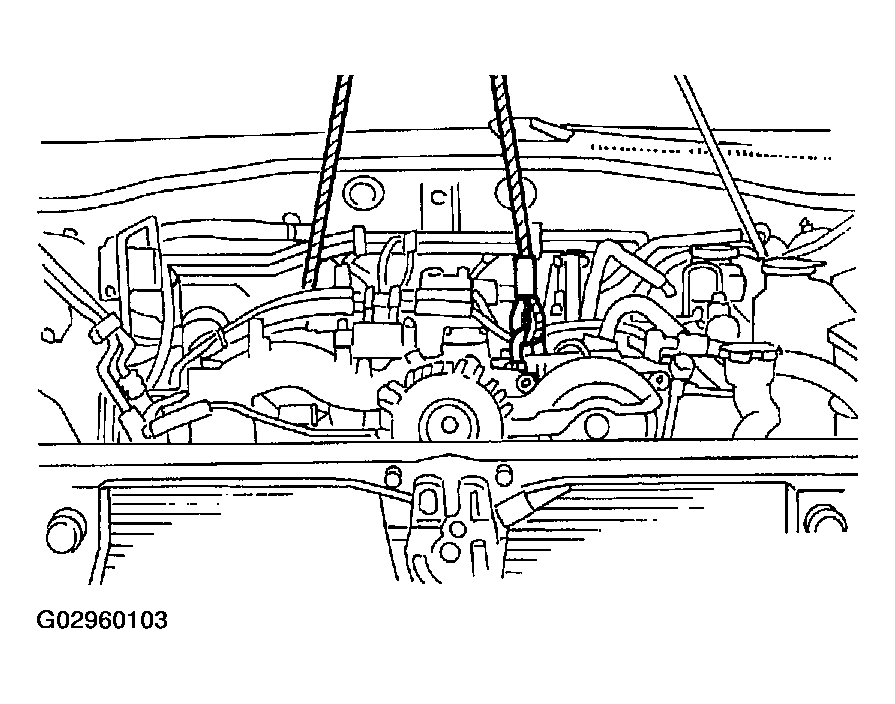

    Fig 23: Supporting Engine With Lifting Device & Wire Ropes
    G02960103Courtesy of SUBARU OF AMERICA, INC.
  23. Support transmission with a garage jack.
    CAUTION: Before moving engine away from transmission, check to be sure no work has been overlooked. Doing this is very important in order to facilitate re-installation and because transmission lowers under its own weight.

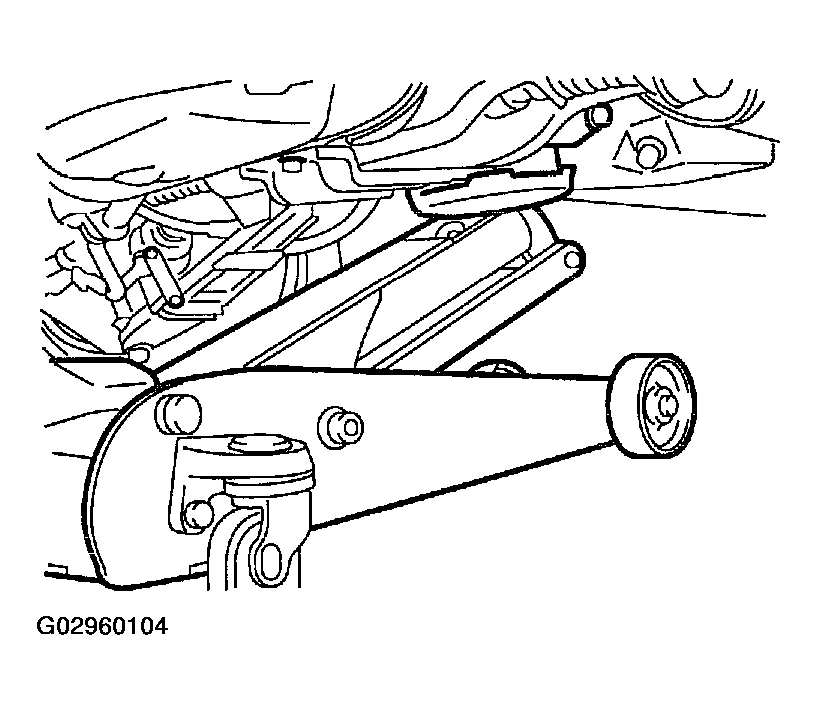

    Fig 24: Supporting Transmission With Garage Jack
    G02960104Courtesy of SUBARU OF AMERICA, INC.
  24. Separation of engine and transmission.
    1. Remove starter. Refer to REMOVAL , Starter.
    2. Remove bolts which hold upper side of transmission to engine.
      Fig 25: Removing Bolts Holding Upper Side Of Transmission To Engine
      G02960105Courtesy of SUBARU OF AMERICA, INC.
  25. Install ST to torque converter clutch case. (AT model)

    ST 498277200 STOPPER SET

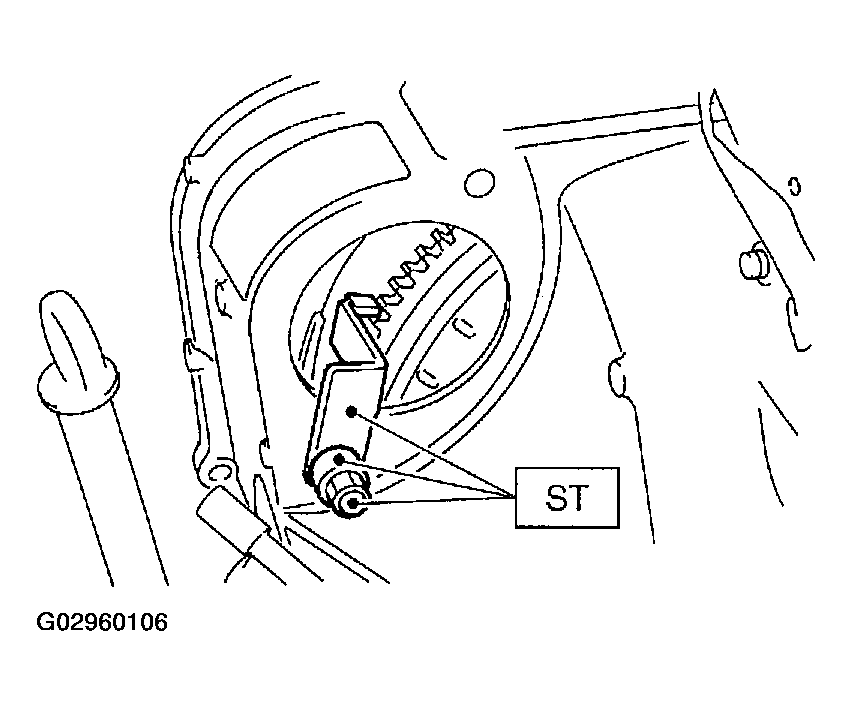

    Fig 26: Installing ST To Torque Converter Clutch Case
    G02960106Courtesy of SUBARU OF AMERICA, INC.
  26. Remove engine from vehicle.
    1. Slightly raise engine.
    2. Raise transmission with garage jack.
    3. Move engine horizontally until main shaft is withdrawn from clutch cover.
    4. Slowly move engine away from engine compartment.
    CAUTION: Be careful not to damage adjacent parts or body panels with crank pulley, oil level gauge, etc.

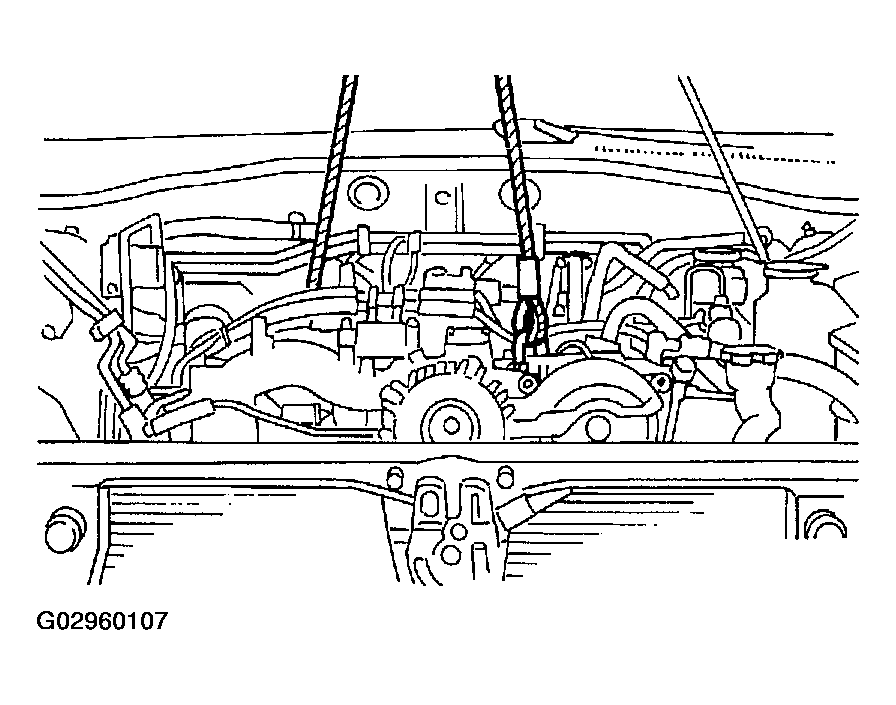

    Fig 27: Removing Engine From Vehicle
    G02960107Courtesy of SUBARU OF AMERICA, INC.
  27. Remove front cushion rubbers.
