Valve Rocker Assembly: Installation

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation of valve rocker assembly
    1. Temporarily tighten bolts (a) through (d) equally as shown in figure.
      CAUTION: Do not allow valve rocker assembly to gouge knock pins.
    2. Tighten bolts (e) through (h) to specified torque.
    3. Tighten bolts (a) through (d) to specified torque.
    1. Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

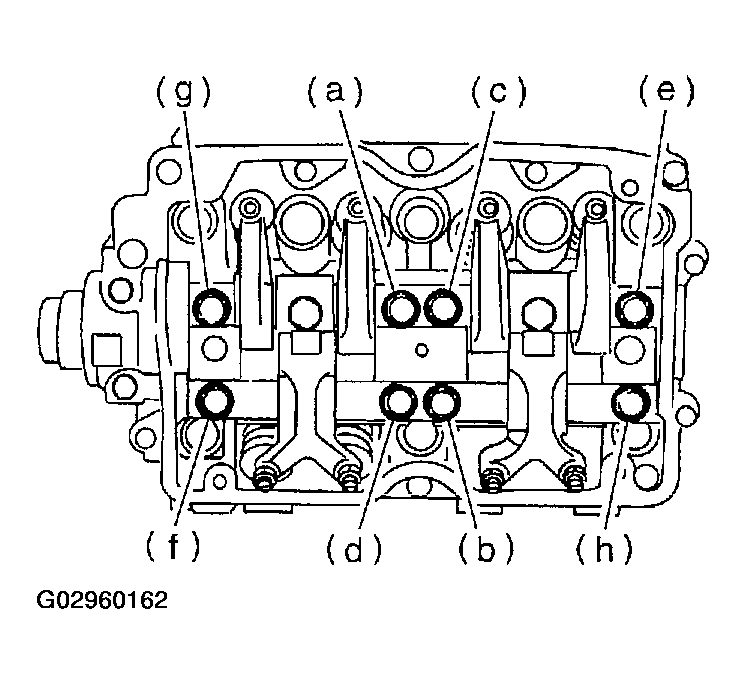

      Fig 1: Installing Valve Rocker Assembly In Sequence
      G02960162Courtesy of SUBARU OF AMERICA, INC.
  2. Adjust the valve clearances. Refer to ADJUSTMENT , Valve Clearances.
  3. Install rocker cover and connect PCV hose.
  4. Install camshaft sprocket. Refer to INSTALLATION , Camshaft Sprockets.
  5. Install timing belt assembly. Refer to INSTALLATION , Timing Belt Assembly.
  6. Install belt cover. Refer to INSTALLATION , Belt Cover.
  7. Install crankshaft pulley. Refer to INSTALLATION , Crankshaft Pulley.
  8. Install V-belt. Refer to INSTALLATION , V-belts.
