Inhibitor Switch: Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Set the vehicle on a lift.
Move the select lever to "N" range.
Remove the air cleaner case. (2.5 L model)
< Ref. to REMOVAL , Air Cleaner Case.>
Remove air intake chamber. (3.0 L model)
< Ref. to REMOVAL , Air Intake Chamber.>

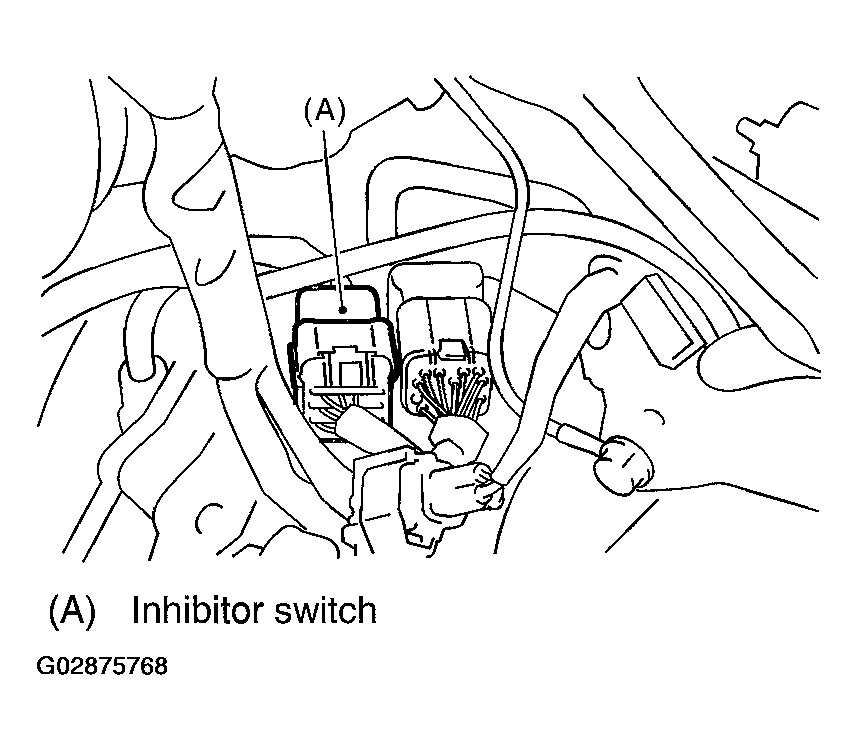

Disconnect the inhibitor switch connector.

Fig 1: Disconnecting Inhibitor Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor switch connector from stay.
Lift-up the vehicle.
Remove the front and center exhaust pipes.
2.5 L model
1. < Ref. to REMOVAL , Front Exhaust Pipe.>
3.0 L model
1. < Ref. to REMOVAL , Front Exhaust Pipe.>

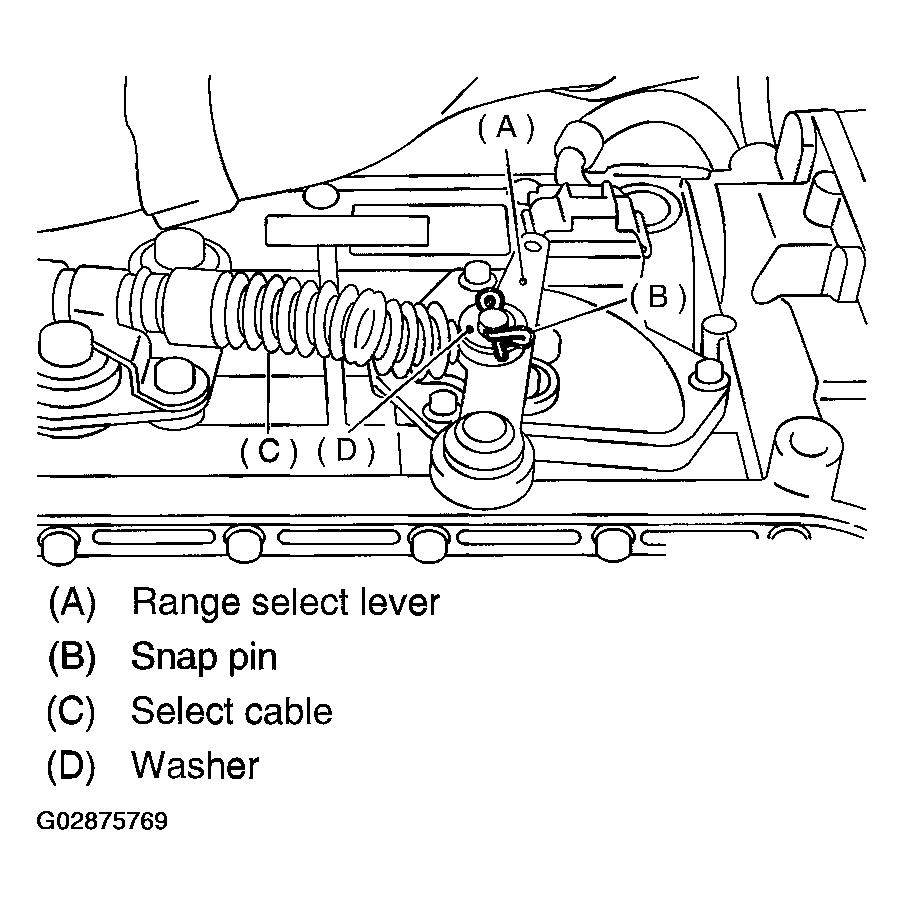

Remove the snap pin and washer from range select lever.

Fig 2: Removing Snap Pin
Courtesy of SUBARU OF AMERICA, INC.

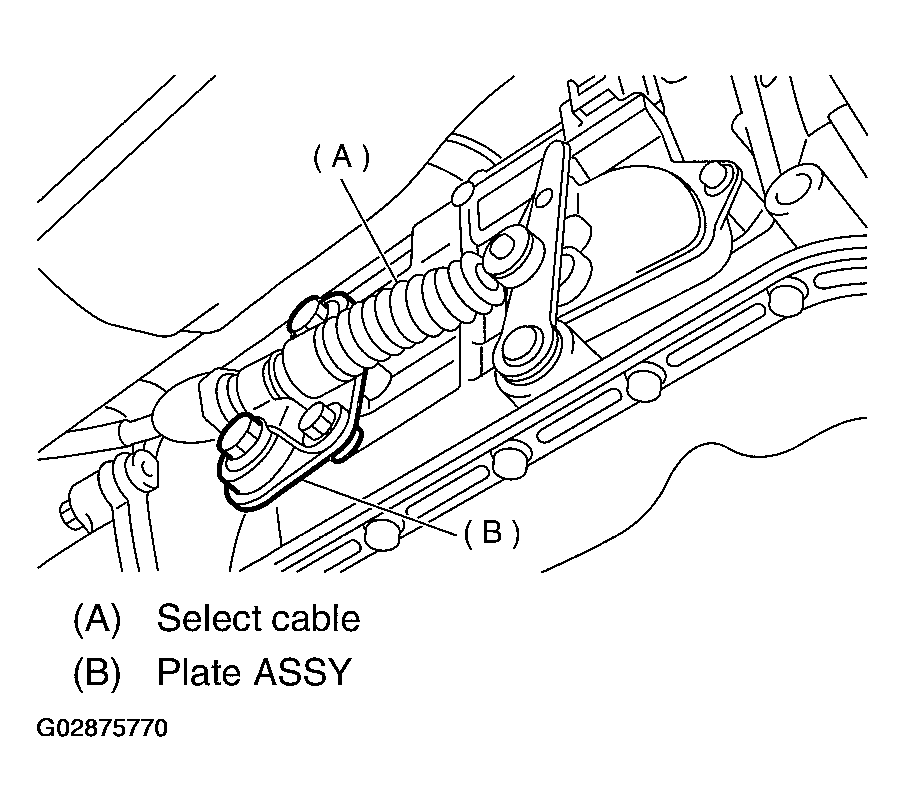

Remove the plate assembly from transmission case.

Fig 3: Removing Plate Assembly From Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts.

Fig 4: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.

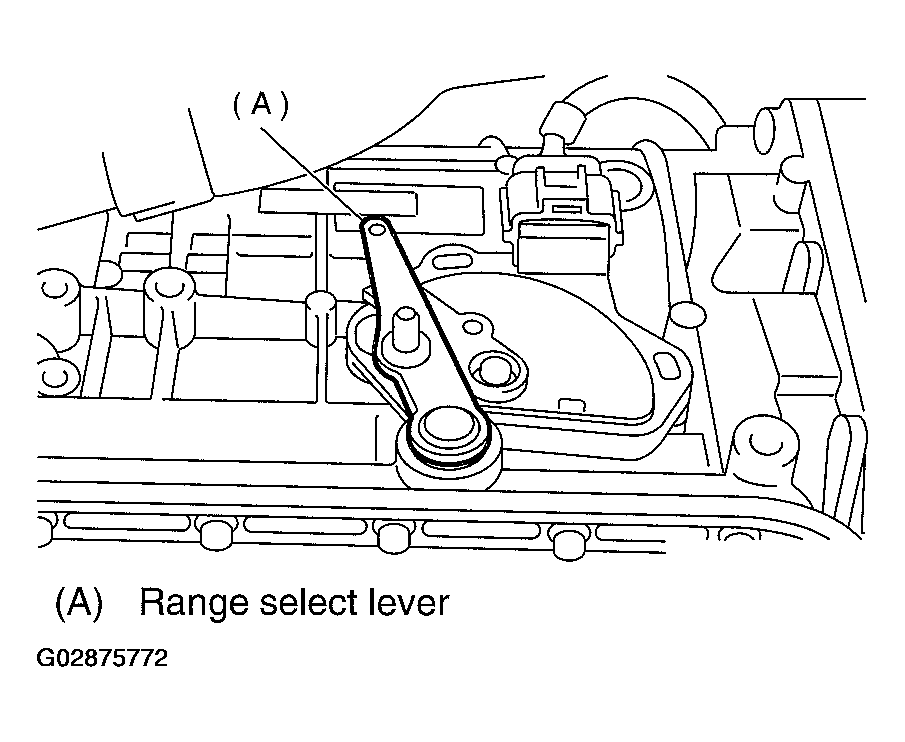

Move the range select lever to parking position (left side).

Fig 5: Moving Range Select Lever To Parking Position (Left Side)
Courtesy of SUBARU OF AMERICA, INC.

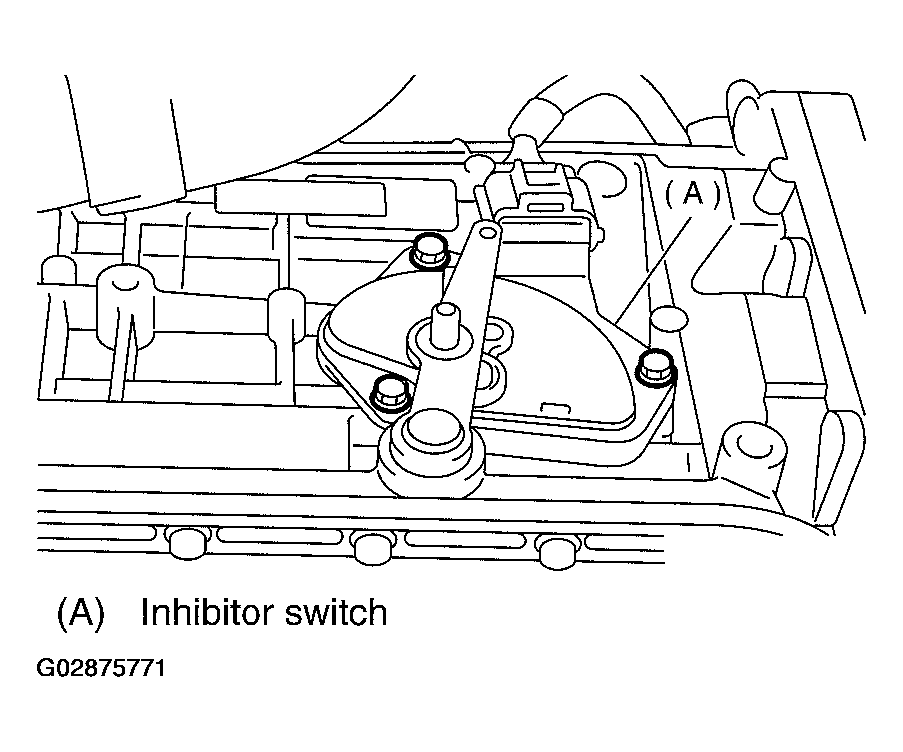

Remove the inhibitor switch from transmission.

Fig 6: Removing Inhibitor Switch From Transmission
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the inhibitor switch harness connector from inhibitor switch.
