Reduction Drive Gear: Assembly
WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
- Press-fit the reduction drive gear to the shaft.
- Press-fit the a new ball bearing to the reduction drive gear.

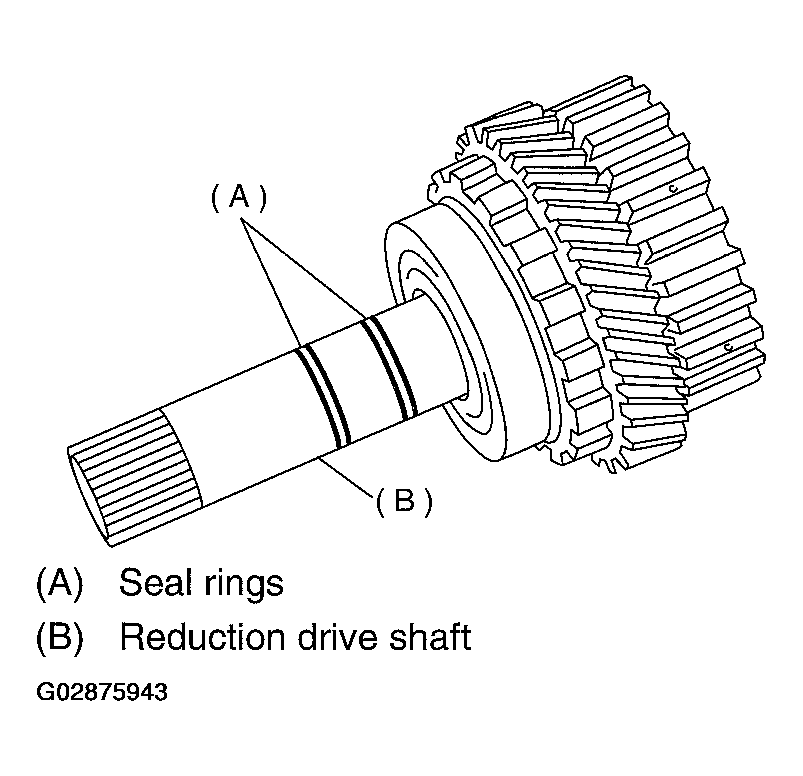

- Apply vaseline to outer surface of seal ring and shaft groove.
- Attach new seal rings.
Courtesy of SUBARU OF AMERICA, INC.
