Blower Motor Assembly: Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect ground cable from battery.
Remove glove box. < Ref. to REMOVAL , Glove Box.>
Remove mounting bolts of harness stay.

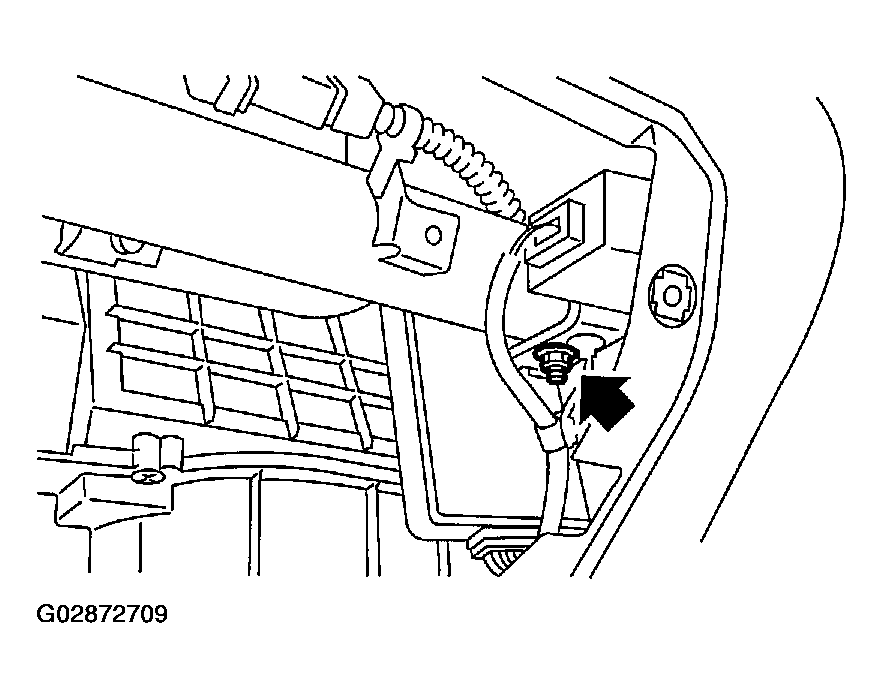

Fig 1: Removing Mounting Bolts Of Harness Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts of keyless unit stay and CRU unit stay.

Fig 2: Removing Nuts Of Keyless Unit Stay & CRU Unit Stay
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector of sunroof.
Disconnect servo connector.

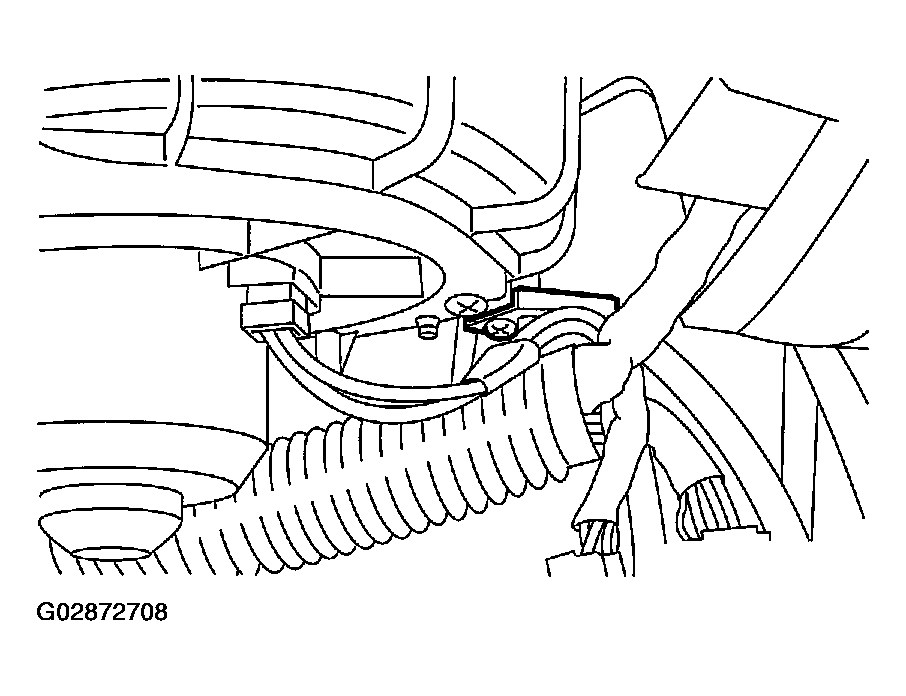

Fig 3: Disconnecting Servo Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect motor connector.

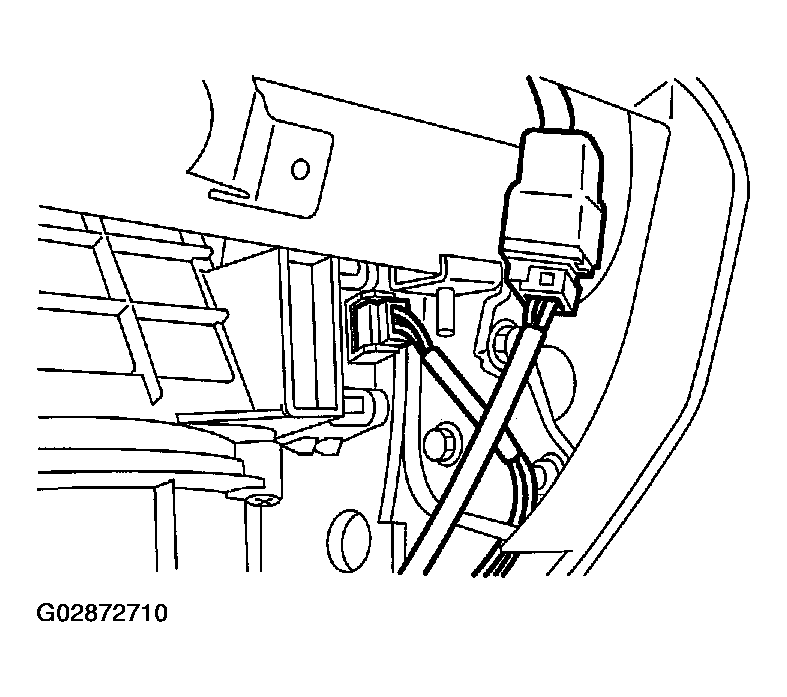

Fig 4: Disconnecting Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove 3 screws.
Disconnect aspirator pipe (A) and remove blower motor.

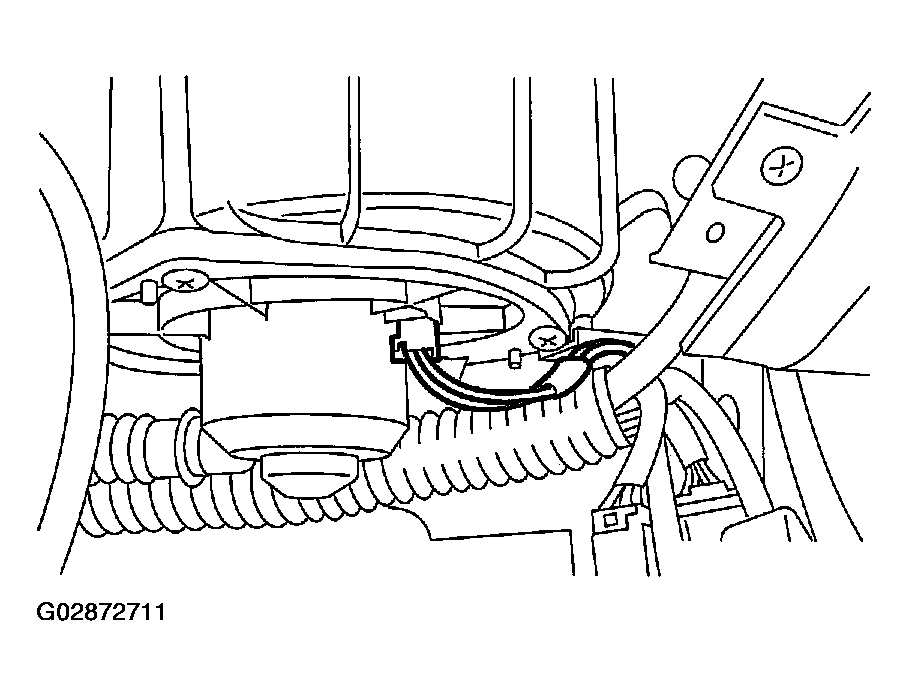

Fig 5: Disconnecting Aspirator Pipe
Courtesy of SUBARU OF AMERICA, INC.
