Magnetic Clutch Operation

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the compressor connector.
Connect the No. 3 terminal of the compressor connector from the battery to the positive (+) lead. Ground the negative (-) lead to the body.

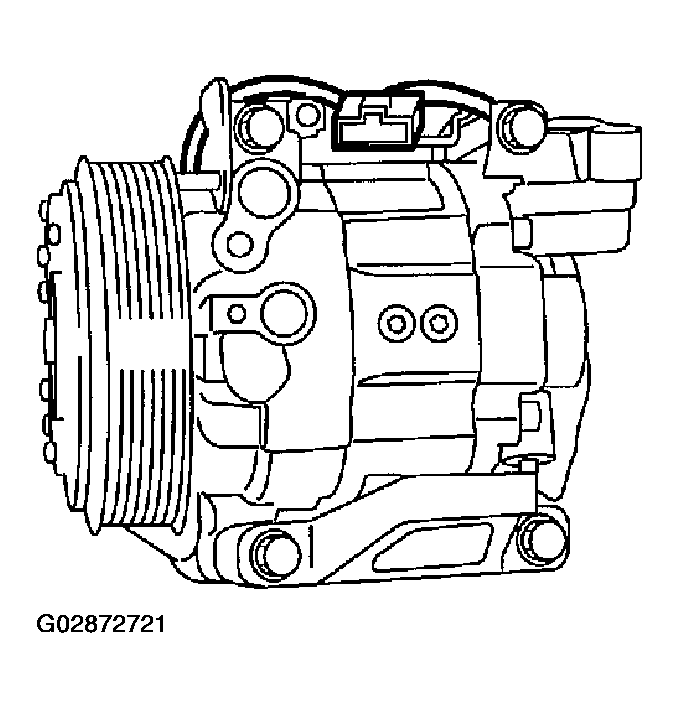

Fig 1: Disconnecting Compressor Connector
Courtesy of SUBARU OF AMERICA, INC.
Make sure the magnet clutch engages. If NG, replace the compressor.
