Section 159 (Manual HVAC System): Compressor: Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Perform oil return operation. < Ref. to OPERATION , Compressor Oil.>
Turn A/C switch OFF and stop the engine.
Using refrigerant recovery system, discharge refrigerant. < Ref. to OPERATION , Refrigerant Recovery Procedures.>
Disconnect ground cable from battery.
Remove duct (A).

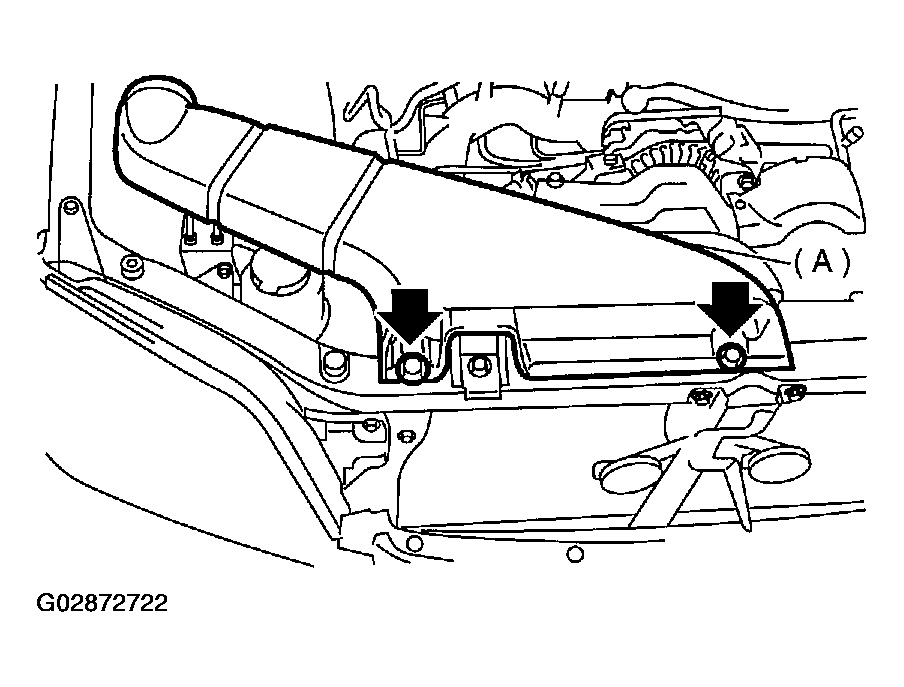

Fig 1: Removing Duct
Courtesy of SUBARU OF AMERICA, INC.
Disconnect low-pressure hose (A) and high-pressure hose (B).
CAUTION: Be careful not to lose O-rings on hose. Immediately seal hose with a plug or vinyl tape to prevent the entry of contamination.

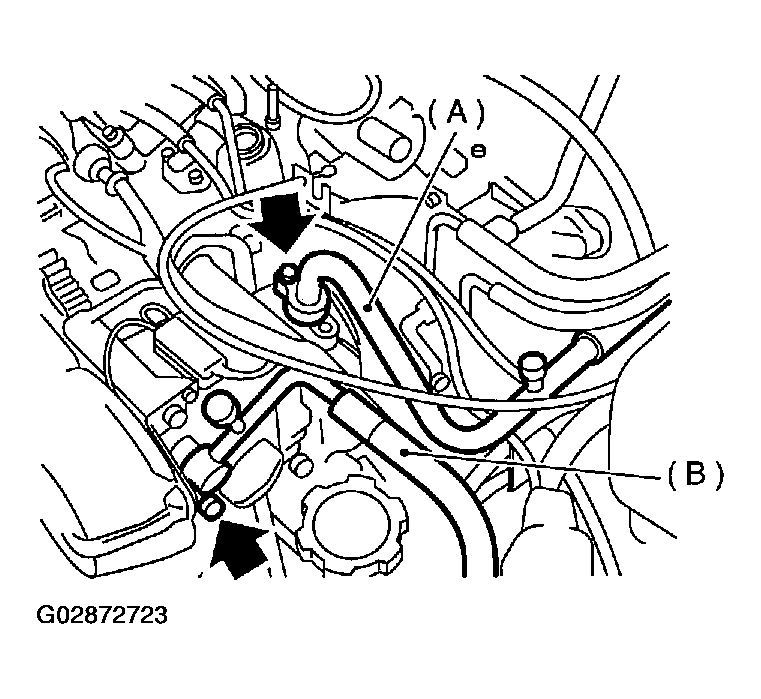

Fig 2: Disconnecting Low-Pressure Hose And High-Pressure Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove V-belt. < Ref. to REMOVAL , V-belt.>
Remove generator. < Ref. to REMOVAL & INSTALLATION REMOVAL, Generator.>
Disconnect compressor harness from body harness.
Remove bolts from compressor bracket.

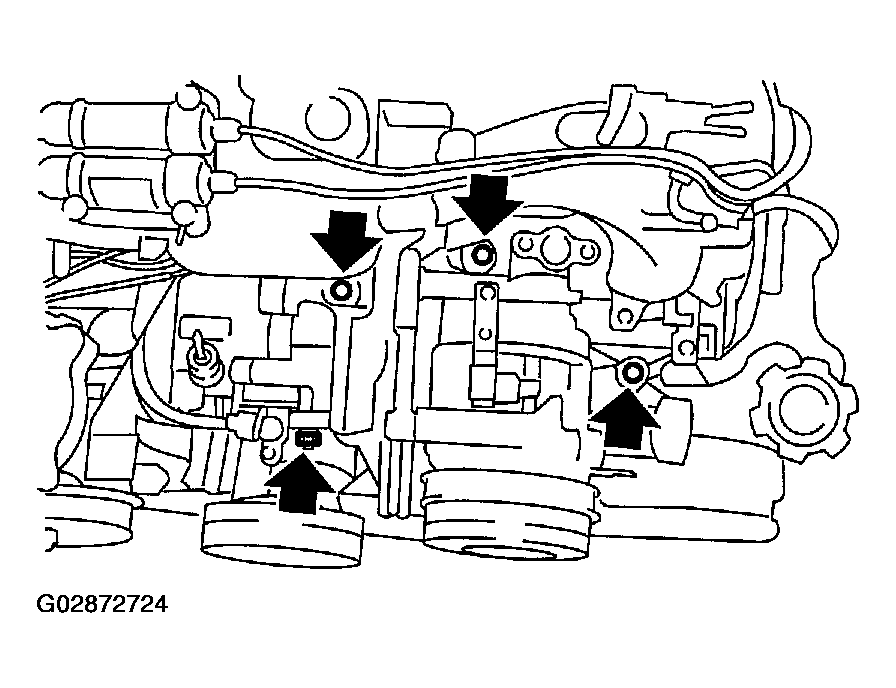

Fig 3: Removing Bolts From Compressor Bracket (4 Cylinders)
Courtesy of SUBARU OF AMERICA, INC.

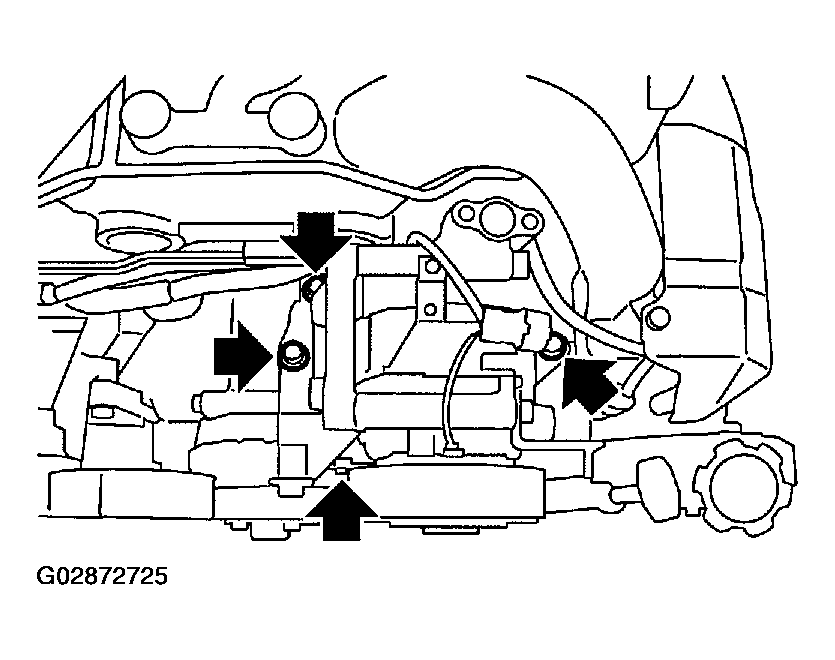

Fig 4: Removing Bolts From Compressor Bracket (6 Cylinders)
Courtesy of SUBARU OF AMERICA, INC.
Loosen bolts to remove compressor from bracket.

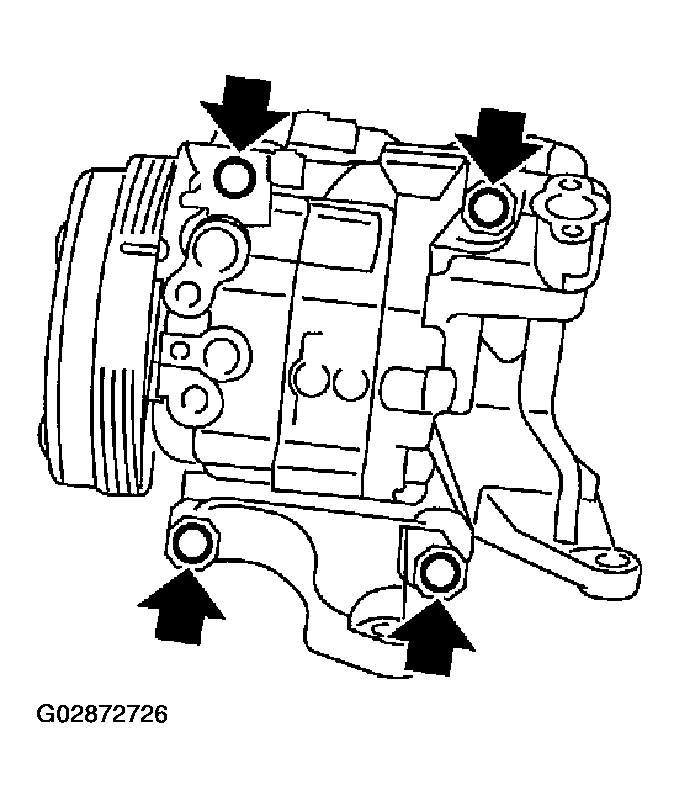

Fig 5: Loosening Bolts To Remove Compressor From Bracket
Courtesy of SUBARU OF AMERICA, INC.
