Section 159 (Manual HVAC System): Condenser: Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Using refrigerant recovery system, discharge refrigerant. < Ref. to OPERATION , Refrigerant Recovery Procedure.>
Disconnect ground cable from battery.
Remove duct (A).

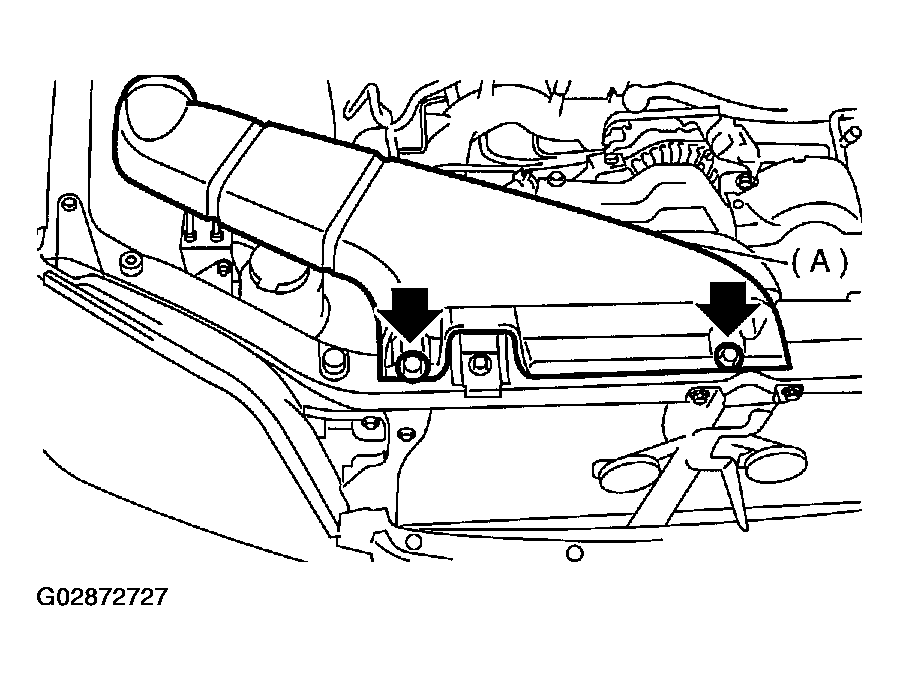

Fig 1: Removing Duct
Courtesy of SUBARU OF AMERICA, INC.
Disconnect high-pressure hose (A) and low-pressure hose (B) from condenser.

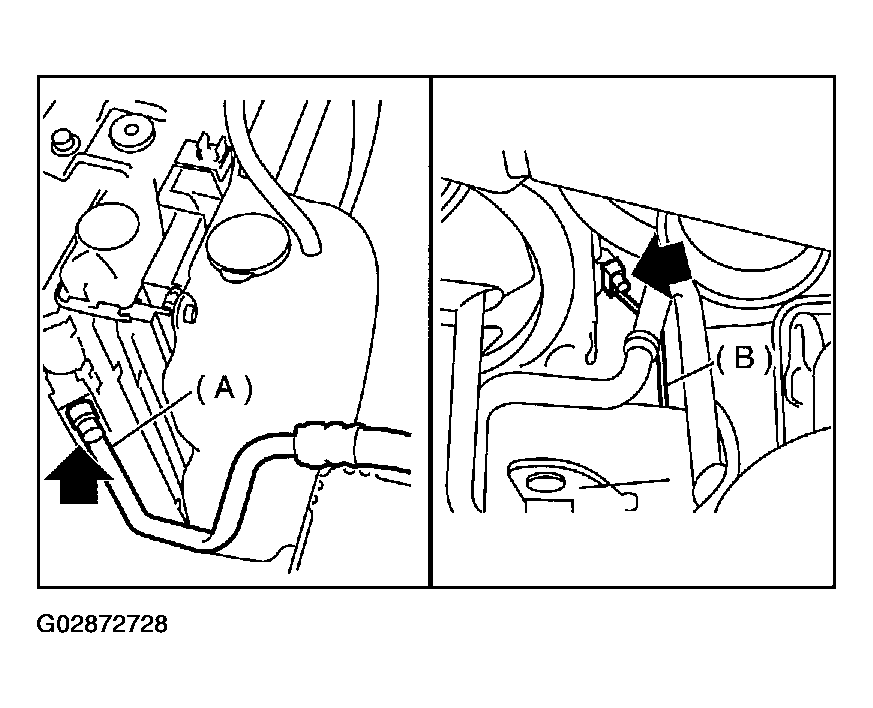

Fig 2: Disconnecting High-Pressure Hose & Low-Pressure Hose From Condenser
Courtesy of SUBARU OF AMERICA, INC.
Remove radiator bracket (A).

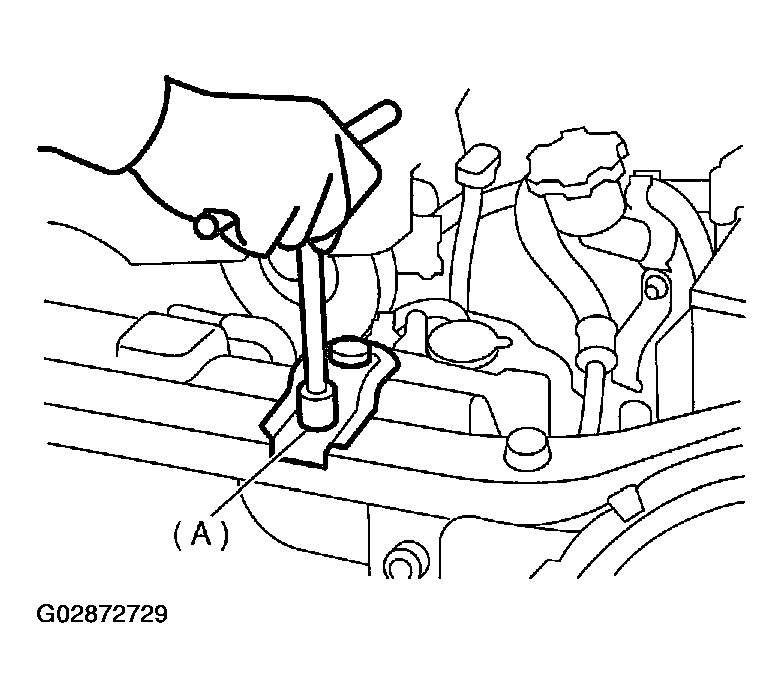

Fig 3: Removing Radiator Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove 2 bolts. While lifting condenser, pull it out through the space between the radiator and the radiator panel.

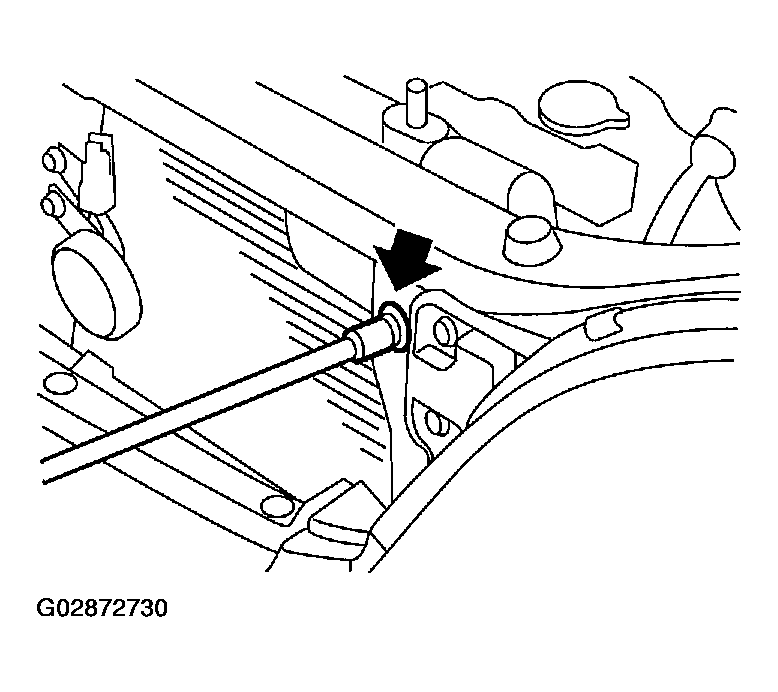

Fig 4: Removing Bolts

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Be careful not to damage condenser fins. If a damaged fin is found, repair it using a thin screwdriver.
If condenser is replaced, add appropriate amount of compressor oil to the compressor.
< Ref. to REPLACEMENT , Compressor Oil.>
