Auto A/C

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect ground cable from battery.
Remove front cover (A).
Loosen 2 screws (B) to remove center panel (C).

Fig 1: Removing Center Panel
Courtesy of SUBARU OF AMERICA, INC.
Loosen screws to pull control unit slightly out of center console.

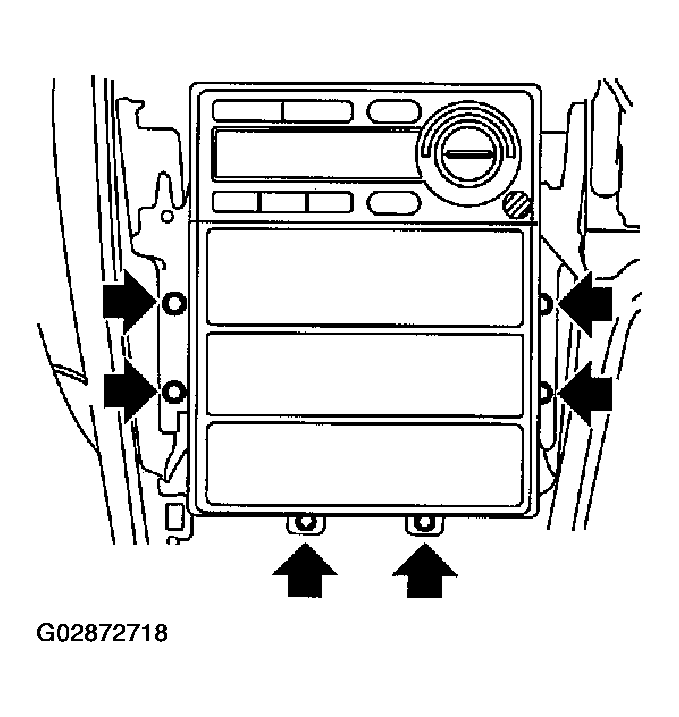

Fig 2: Loosening Screws To Remove Control Unit
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from antenna cable to remove control unit.
