Intake Unit: Disassembly

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Remove resistor (A) and thermistor (B) from intake unit case.
Remove screws and clips to separate intake unit.

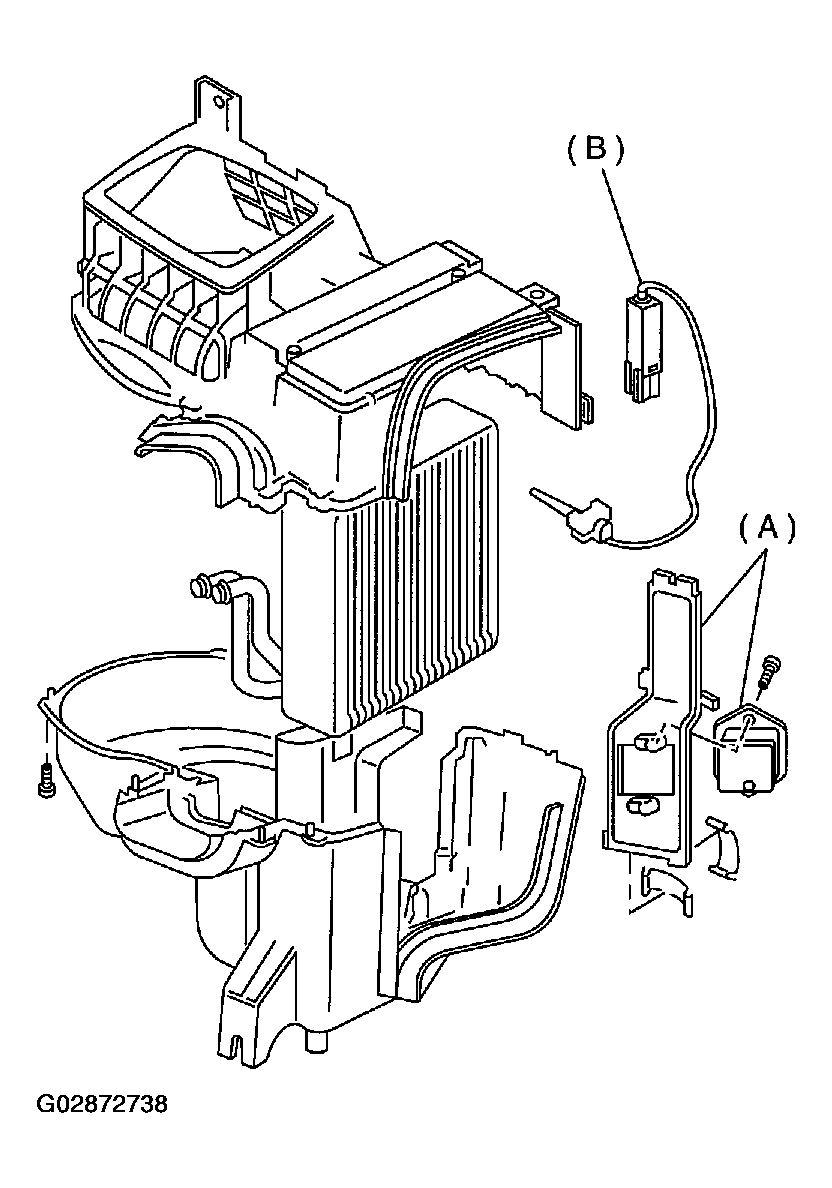

Fig 1: Removing Resistor & Thermistor From Intake Unit Case
Courtesy of SUBARU OF AMERICA, INC.
Remove expansion valve (A) from evaporator.

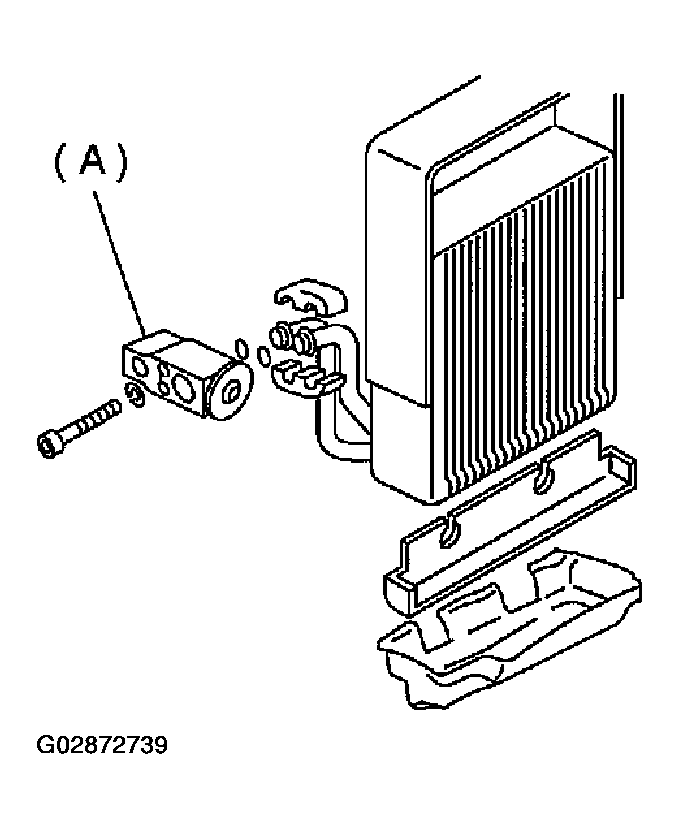

Fig 2: Removing Expansion Valve From Evaporator
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: If evaporator is replaced, add appropriate amount of compressor oil to evaporator. < Ref. to REPLACEMENT , Compressor Oil.>
