Intake Unit: Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Using refrigerant recovery system, discharge refrigerant. < Ref. to OPERATION , Refrigerant Recovery Procedures.>
Disconnect ground cable from battery.
Remove bolts securing expansion valve and pipe in engine compartment.

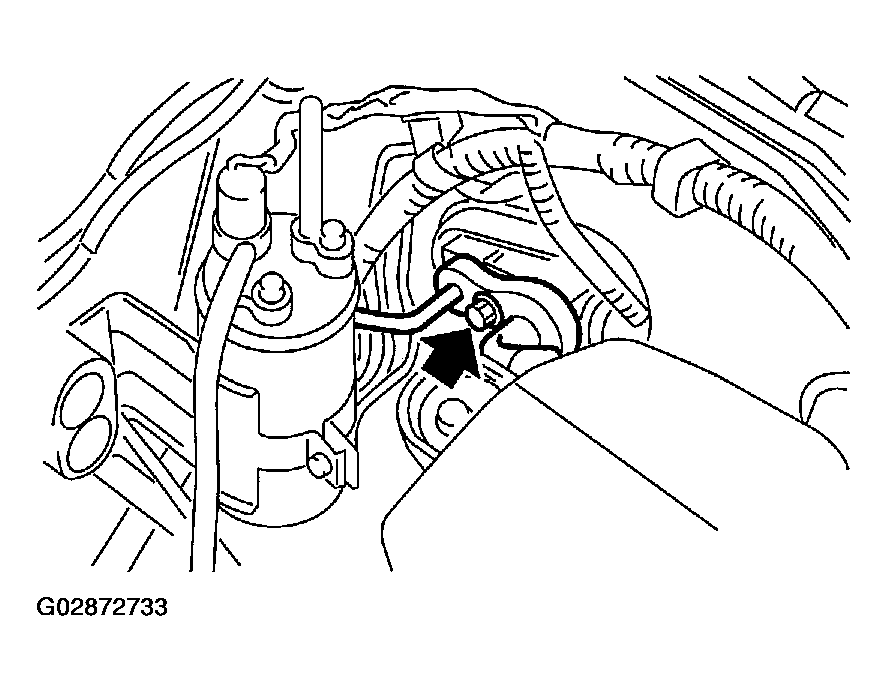

Fig 1: Removing Bolts Securing Expansion Valve & Pipe In Engine Compartment
Courtesy of SUBARU OF AMERICA, INC.
Remove instrument panel. < Ref. to REMOVAL , Instrument Panel Assembly.>
Remove keyless unit and CRU unit.

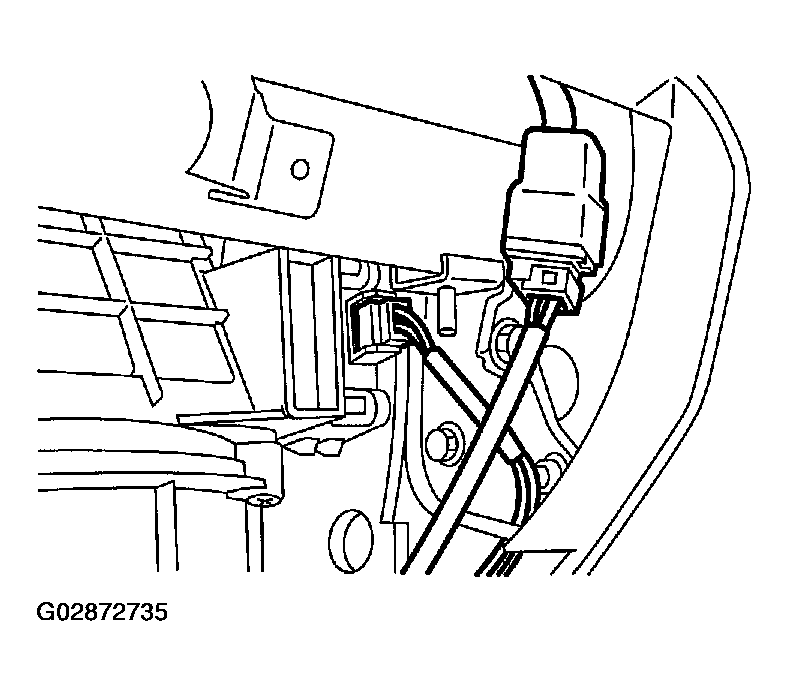

Fig 2: Removing Keyless Unit & CRU Unit
Courtesy of SUBARU OF AMERICA, INC.
Disconnect sunroof connector.
Disconnect servo motor connector.

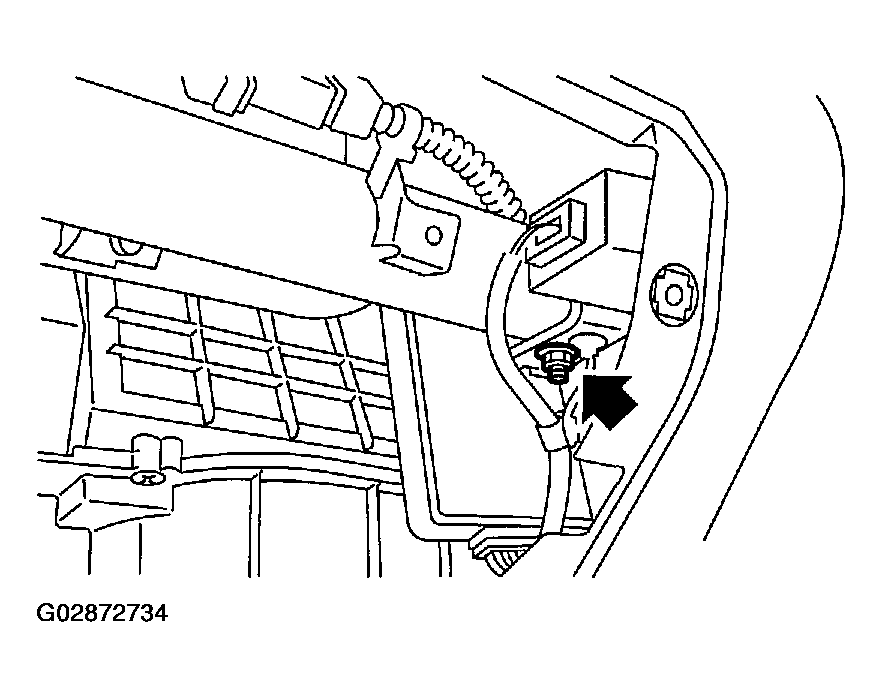

Fig 3: Disconnecting Servo Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect heater blower power transistor connector.
Disconnect heater blower motor connector.
Disconnect in-vehicle temperature sensor connector.

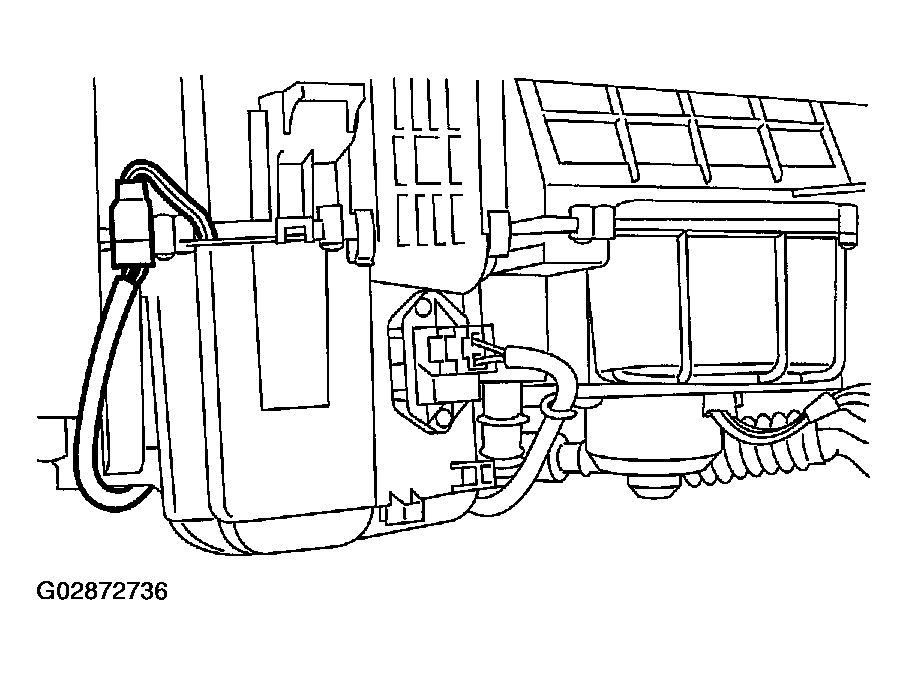

Fig 4: Disconnecting In-Vehicle Temperature Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts and nuts on the unit.

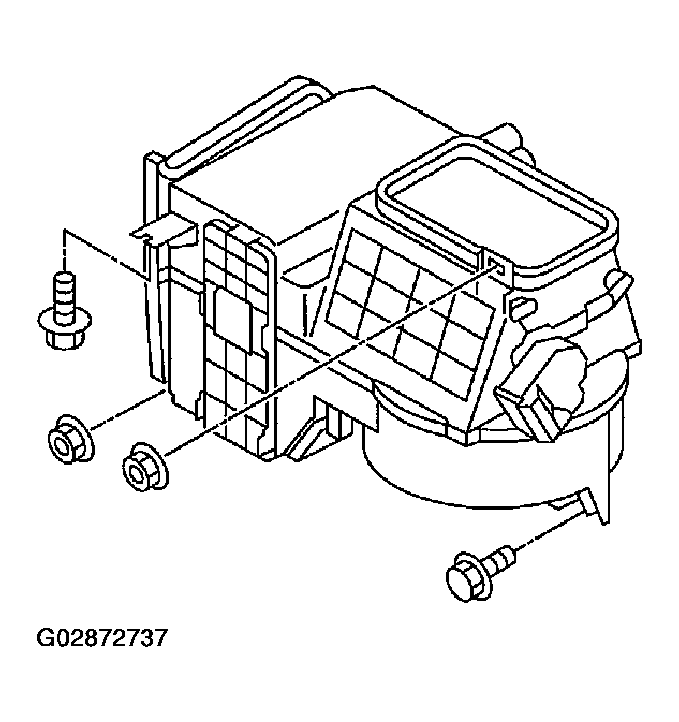

Fig 5: Removing Bolts & Nuts On Unit
Courtesy of SUBARU OF AMERICA, INC.
Disconnect drain hose.
Remove the unit.
