Back-Up Light Switch (Mt Model)
WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

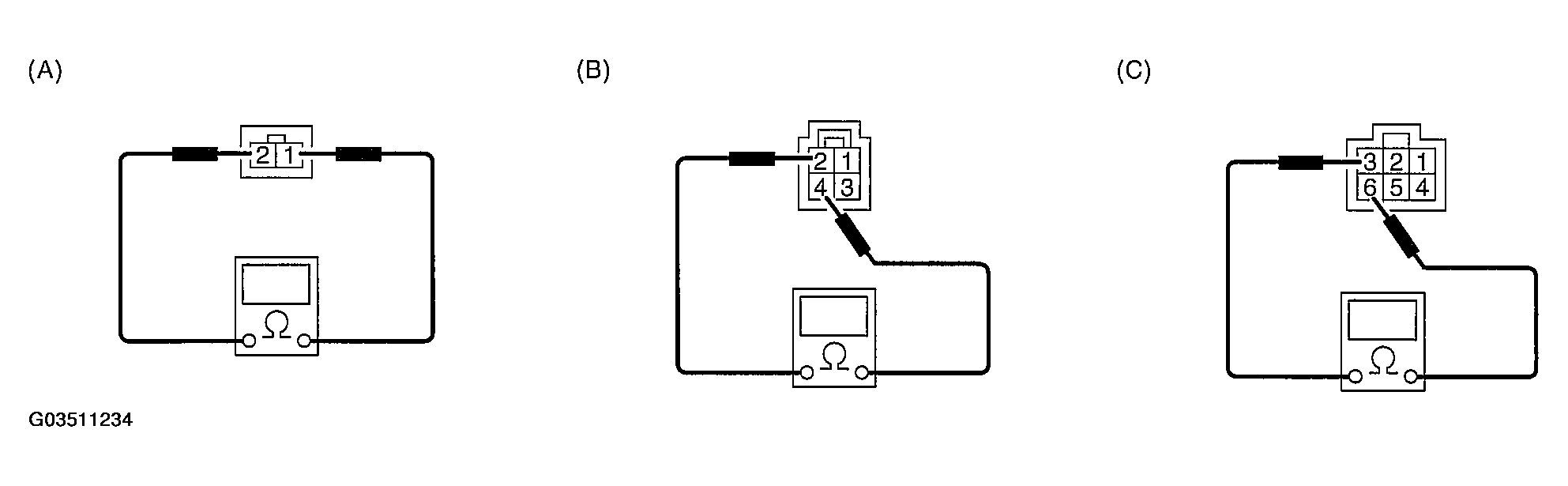

Measure the back-up light switch resistance.
BACK-UP LIGHT SWITCH TERMINALS RESISTANCE
| Switch position | Terminal No. | Standard |
|---|---|---|
| When shift lever is set in reverse position | Turbo model (Except STi model): 2 and 4 Turbo model (Sti model): 3 and 6 Non-turbo model: 1 and 2 |
Less than 1 ohm |
| Other positions | More than 1 Mohm |
